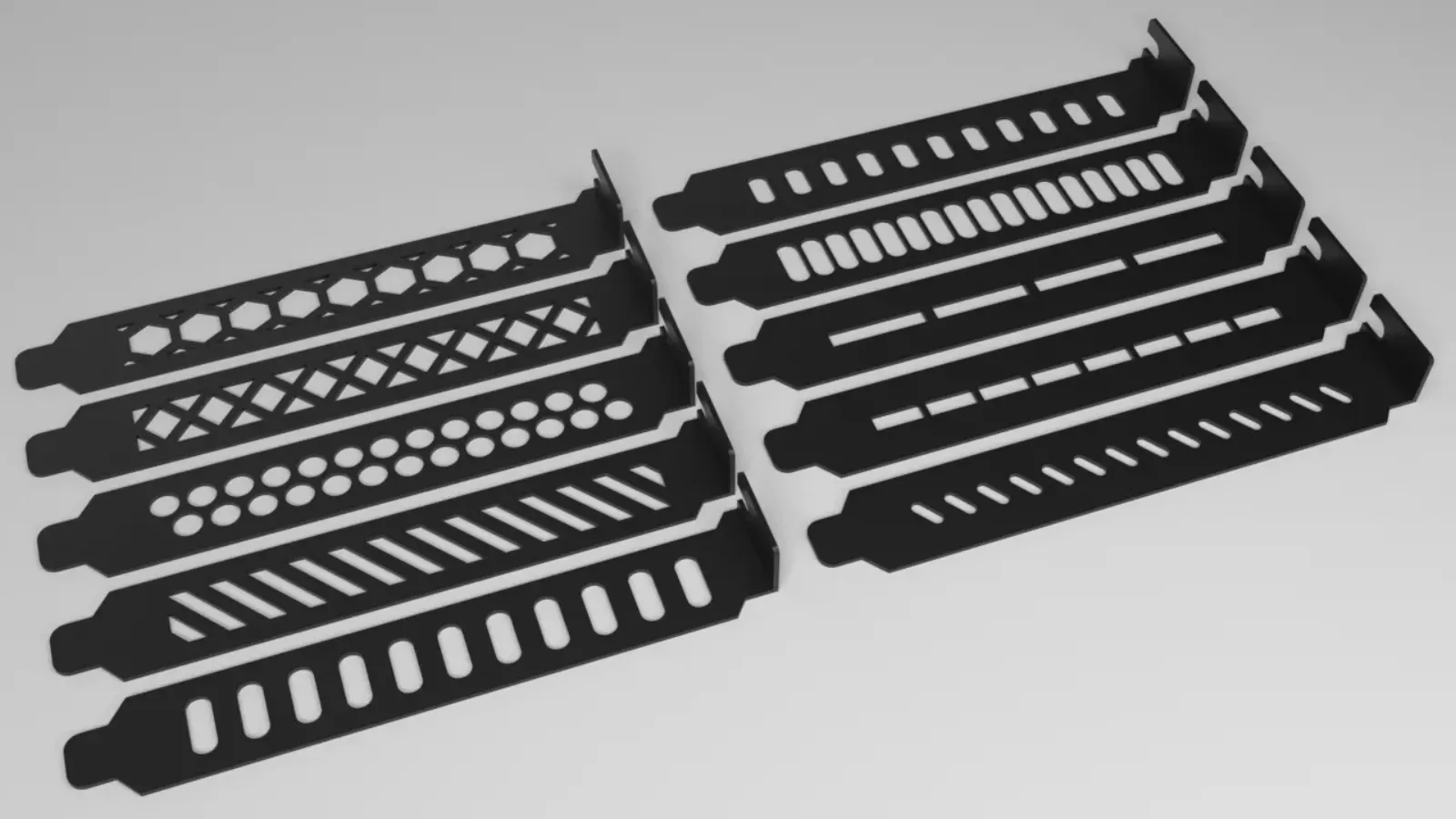

PCI/PCI-E slot covers with 10 different designs to choose from.

Simple easy to print slot covers.

Why have boring, plain, generic PCI/PCI-E slot covers when you could have custom covers instead.

Covers should be printed in the best quality possible to provide strength, these covers are deliberately designed to be thin to avoid problems with some cases which have covers that slot over the PCI/PCI-E brackets and screws.

Due to the thin bracket end I recommend taking care when installing or removing these covers from your case. They are designed as lightweight covers and do not need to be over-tightened, instead they should be “pinched” into place with a screw lightly and gently.

I have printed these covers in 0.10mm and also 0.20mm without any issues and without the need for supports. Results may vary among filaments and printers so if you think you may need supports enable them.

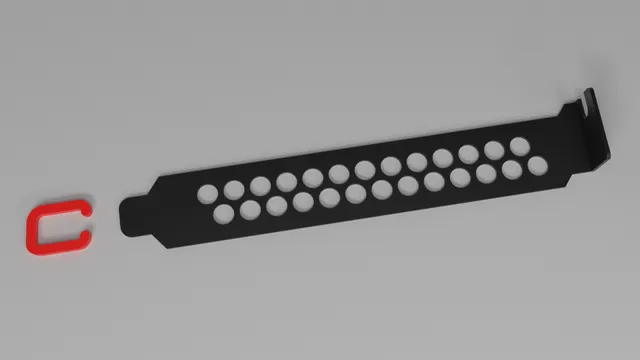

Design C will benefit from the lowest layer height possible, ideally 0.10mm for better detail.

The covers have been tested in numerous cases to find the best fit possible, please be aware that this may vary among some cases.

The screw hole has a little tolerance to allow for different cases, some have springs along the edges some don't so the gap allows for a little adjustment.

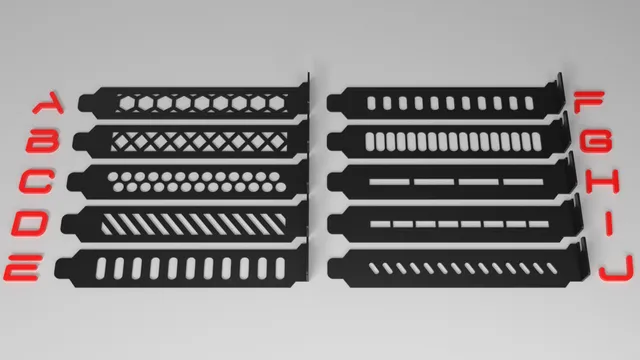

Image 2 shows each cover with an identifier to make it easier for you to pick which file you want.

I have other listings for other cover designs so do check them out.

If you enjoy this print then please do share your make, I would love to see what colours and filaments you chose for your print.

If you have any questions about 3D printing, whether it be queries or you need some tips or tricks feel free to reach out in the comments or by message, I am always more than happy to help if I can!
