Bedgeleider met kabelrups voor de Elegoo Neptune 4-serie1 / 6

Wat heb je nodig?

Naast de geprinte onderdelen:

  • 2×M3x15 verzonken bout
  • 4×Magneet 7 mm (optioneel, voor frameclip)

Beschrijving van de maker

Origineel in het Engels

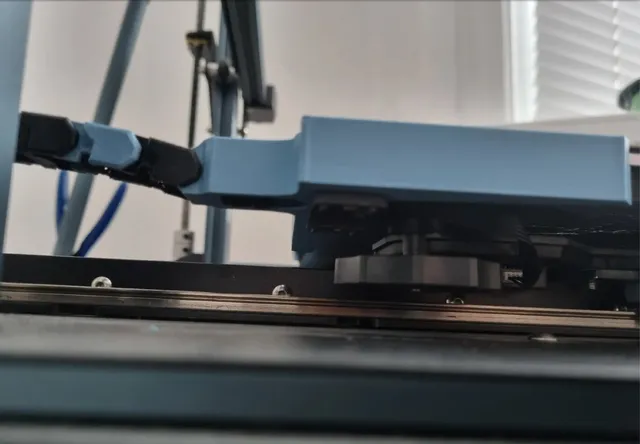

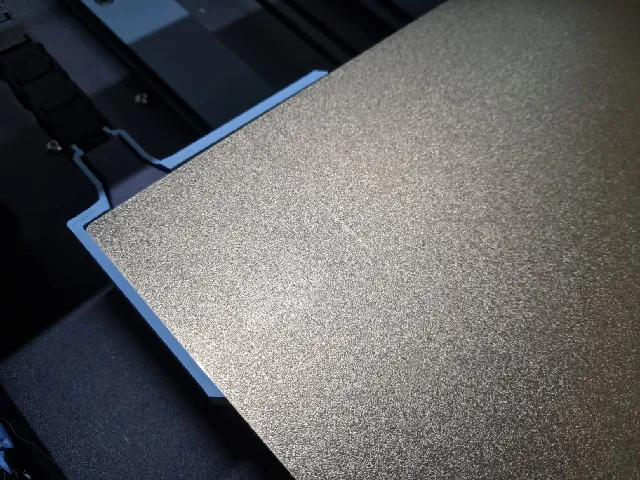

Made this to be able to put the bed back in place more easy and add a cable chain on my neptune 4 plus

Thanks to: scrogathon & Matt Queen & Sascha and Berry C & Daan87423

They Helped me  a lot for making the mount  possible on the neptune 4 and 4 Pro and Max

Unscrew the 2  m3 bolts that keep the strain relief in place ( you could use the same bolts to remount it but it would be better to change them for m3 15mm countersunk bolts that way you can remount the old clip under the printed one and it will never get loose.

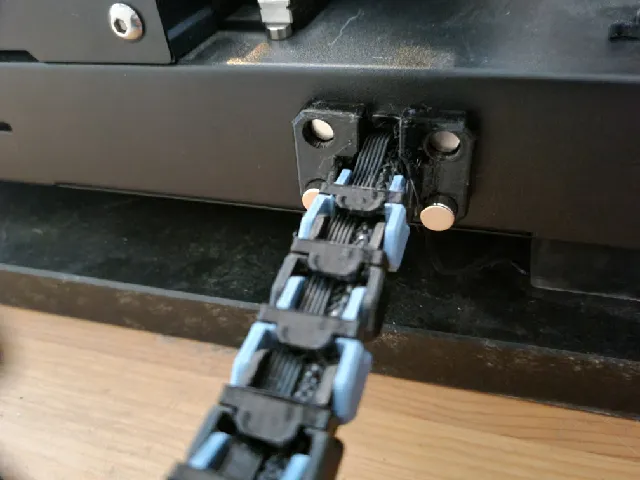

I added 2 frame clips the 1st one just slides in the power cable hole of the frame the other one has 4 spaces to put magnets in ( for me the last one works better as it keeps it pressed firmly against the frame)

best to print the bracket  from higher temprature resistant filament petg, abs or asa

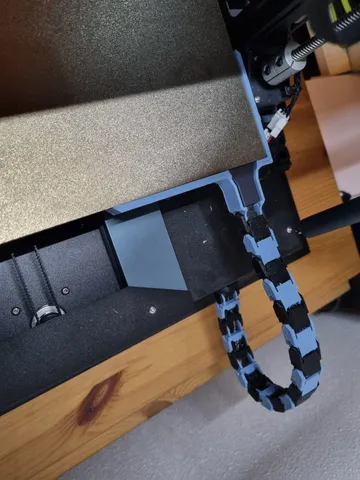

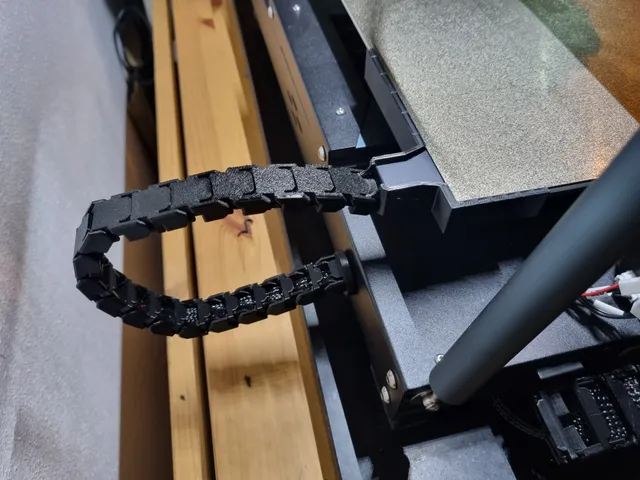

the cable chain is a rework from the existing neptune 4 cable chain ( made it the right size for the power cable )
