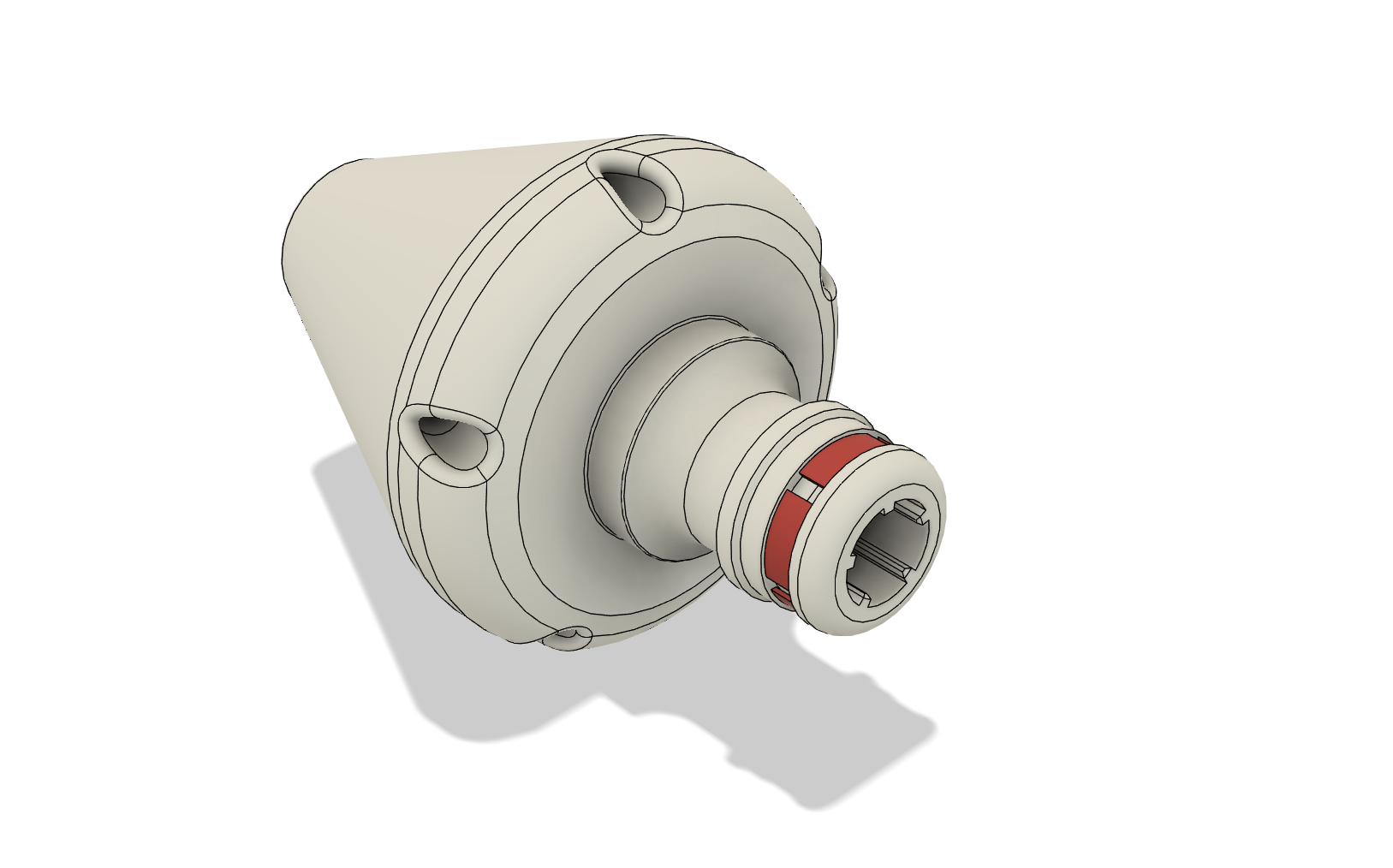

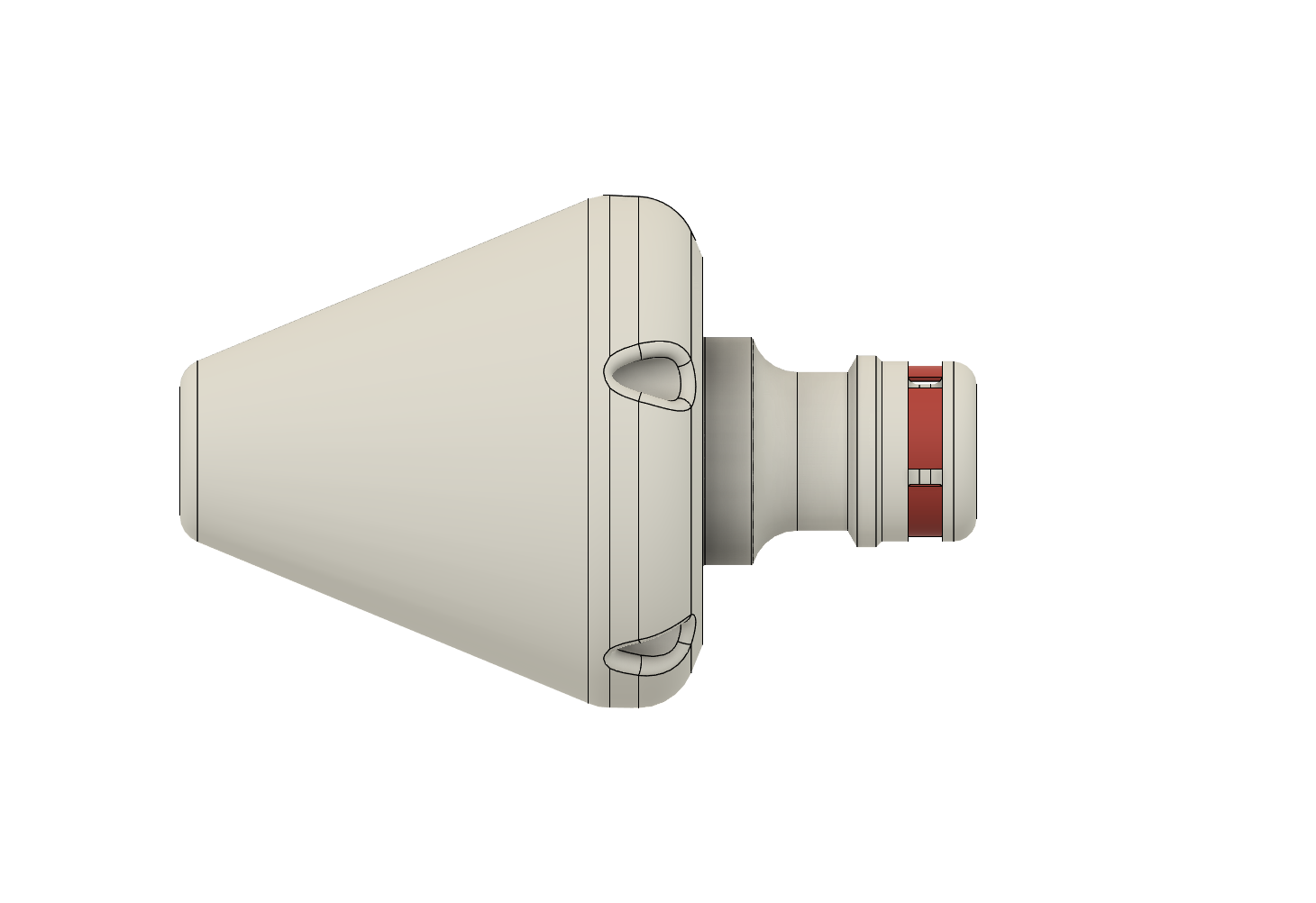

This compact and efficient cleaning nozzle (drain jetting nozzle) is designed for use with standard Gardena connectors. Perfect for cleaning gutters, channels and narrow drains.

Fair word of warning: don't plug on a hose and turn on the water, insert it in the gutter/drain first or you will get wet

though the shape might look tempting: just don't :)

Features:

• 1 forward-facing jet for targeted cleaning
• 5 rear-facing jets for propulsion and flushing debris
• Low-profile design to fit into tight spaces
• Inner ribs for increased strength

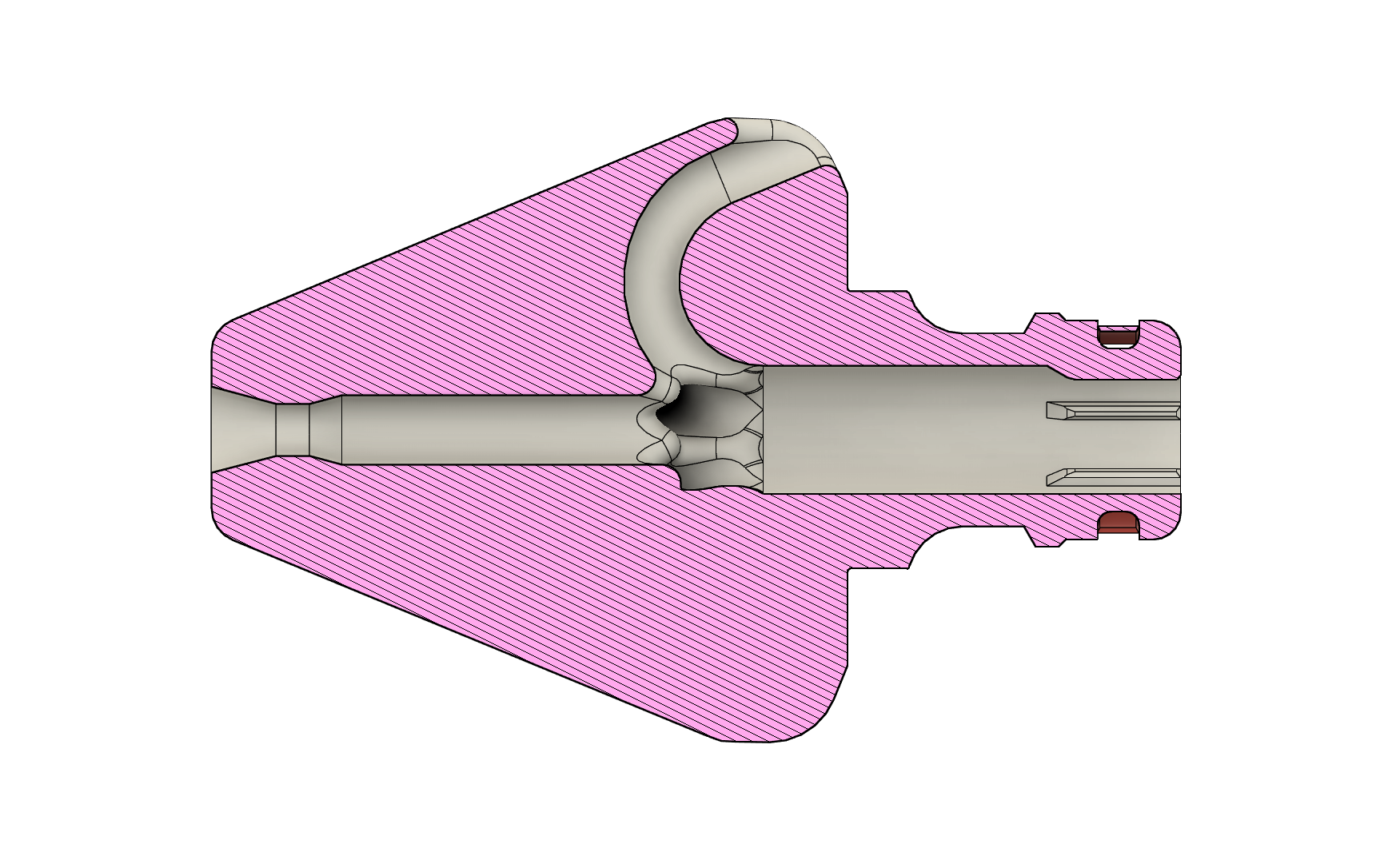

• Integrated CAD-modeled support ensures perfect geometry for the O-ring sealing groove
• Parametric  .f3d source file included

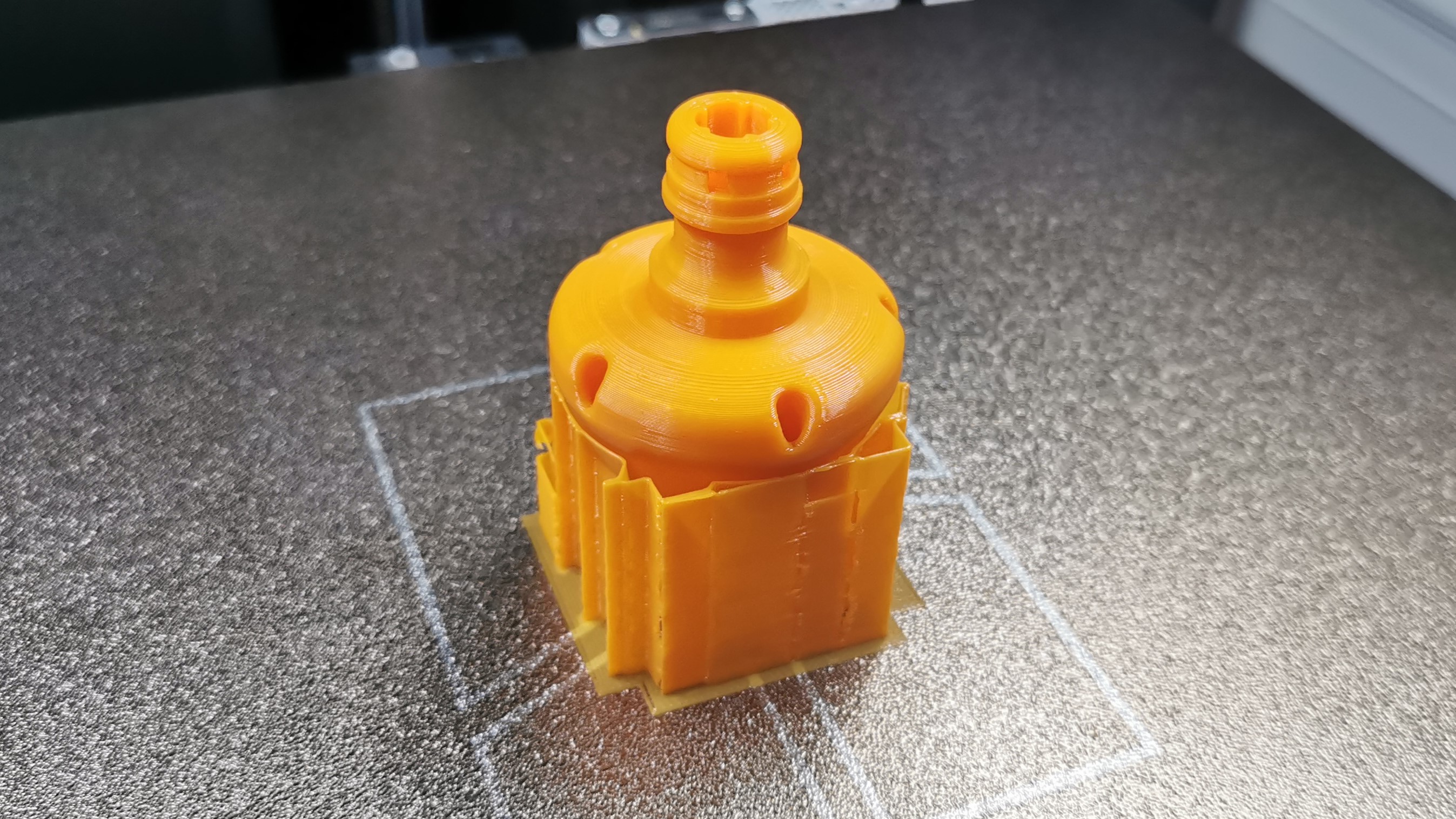

Printing:

• Print orientation: Upright
• Walls: 3 with concentric top/bottom
• Infill: 5 to 10 % gyroid
• Supports: Normal supports with Honeycomb pattern up to 75° treshold with increased interface spacing

Assembly & post-processing:

• Break the Part free from the support scaffold

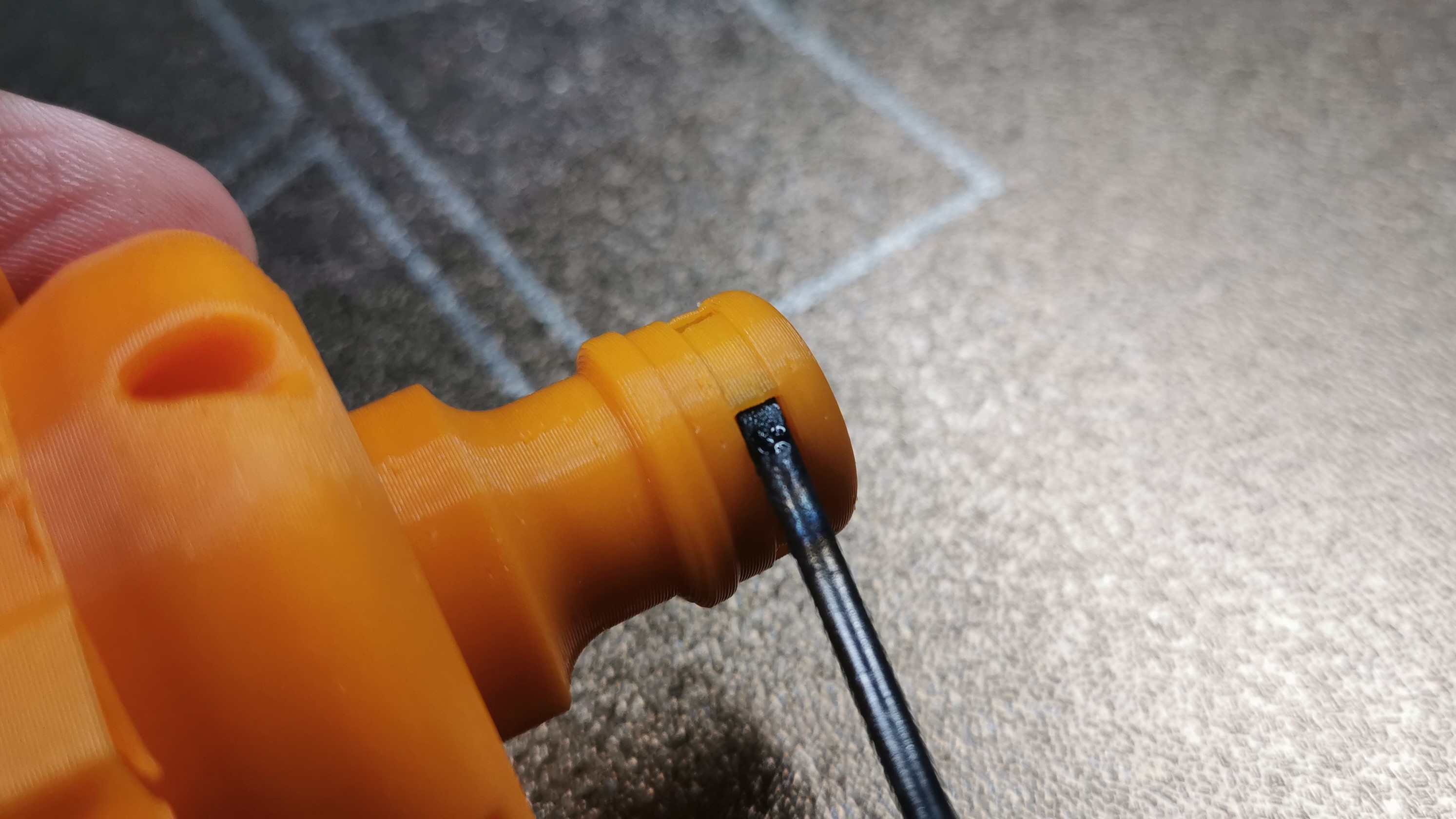

• After printing, use a flathead screwdriver to break out the supports from the O-ring channel.
• Insert a standard gardena O-ring into the sealing groove.

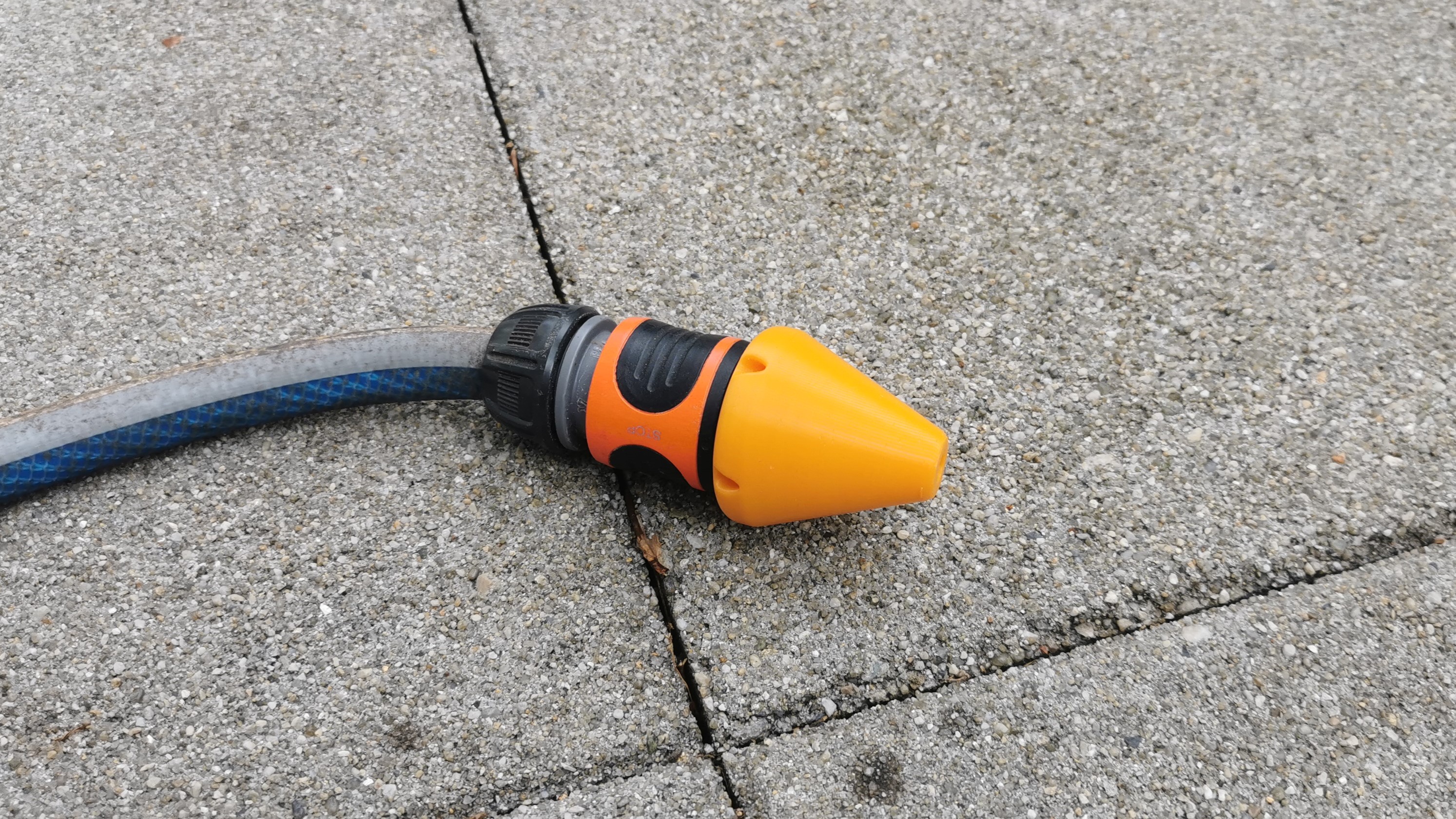

• Done – ready for action!
