simple, basic lid raiser for Creality K2 plus now in Version 3

The following I copied from Original https://www.printables.com/model/1169180-lid-raiser-for-creality-k2-plus-2025-02-22-added-v

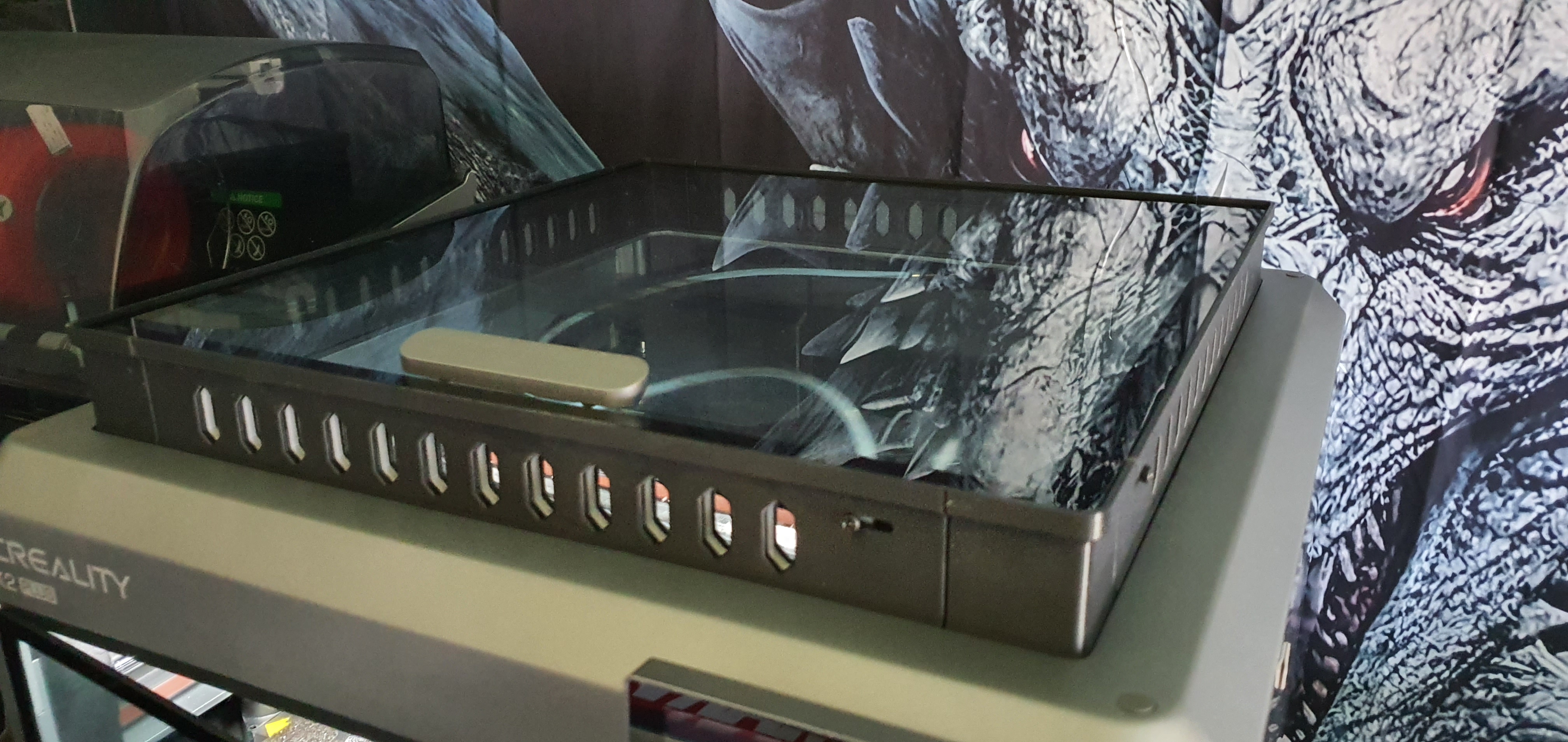

Raises the glass lid by 40mm so that the bowden tube no longer rubs against the glass.
Adds the option of ventilation.

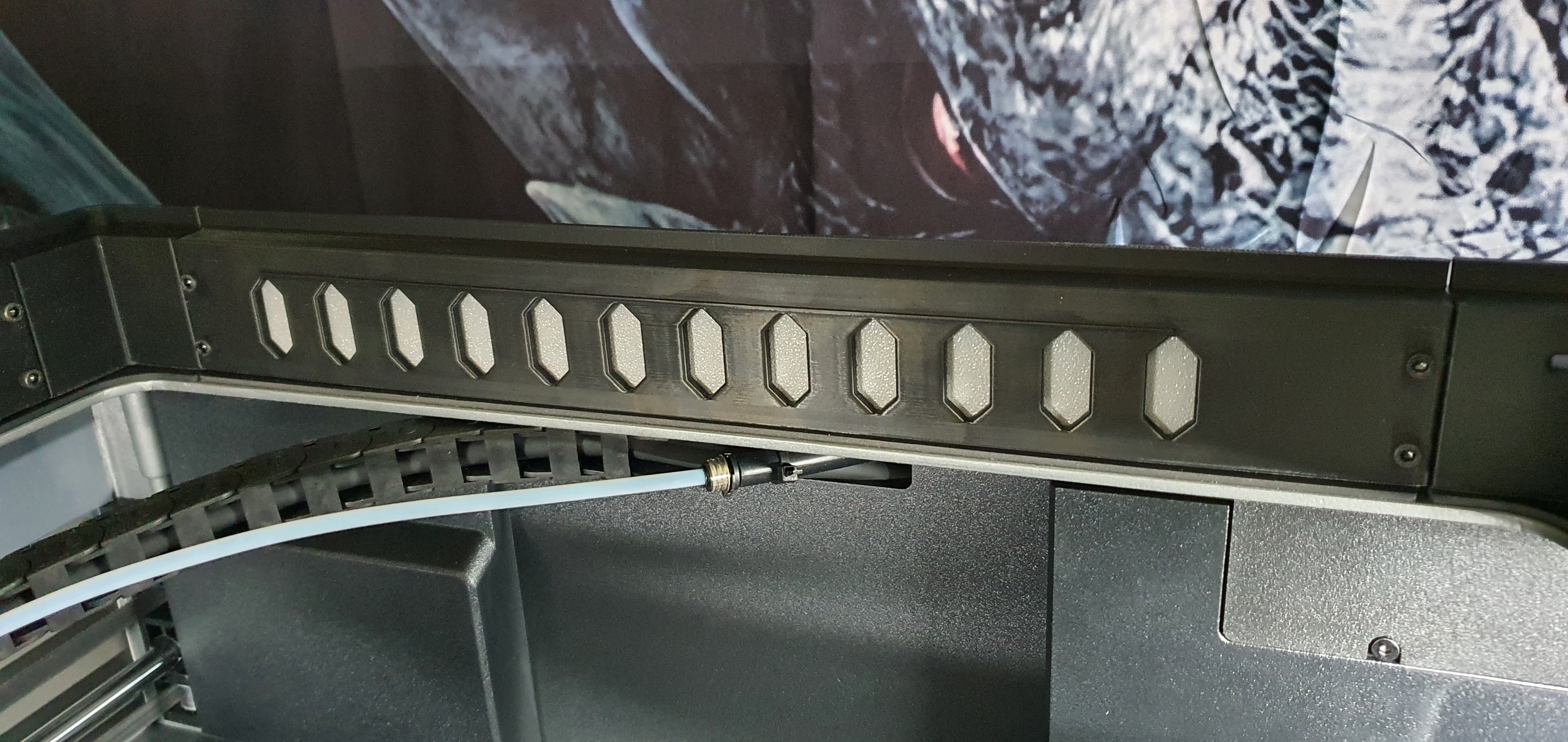

The ventilation sliders are inserted into the front, back and side sections.

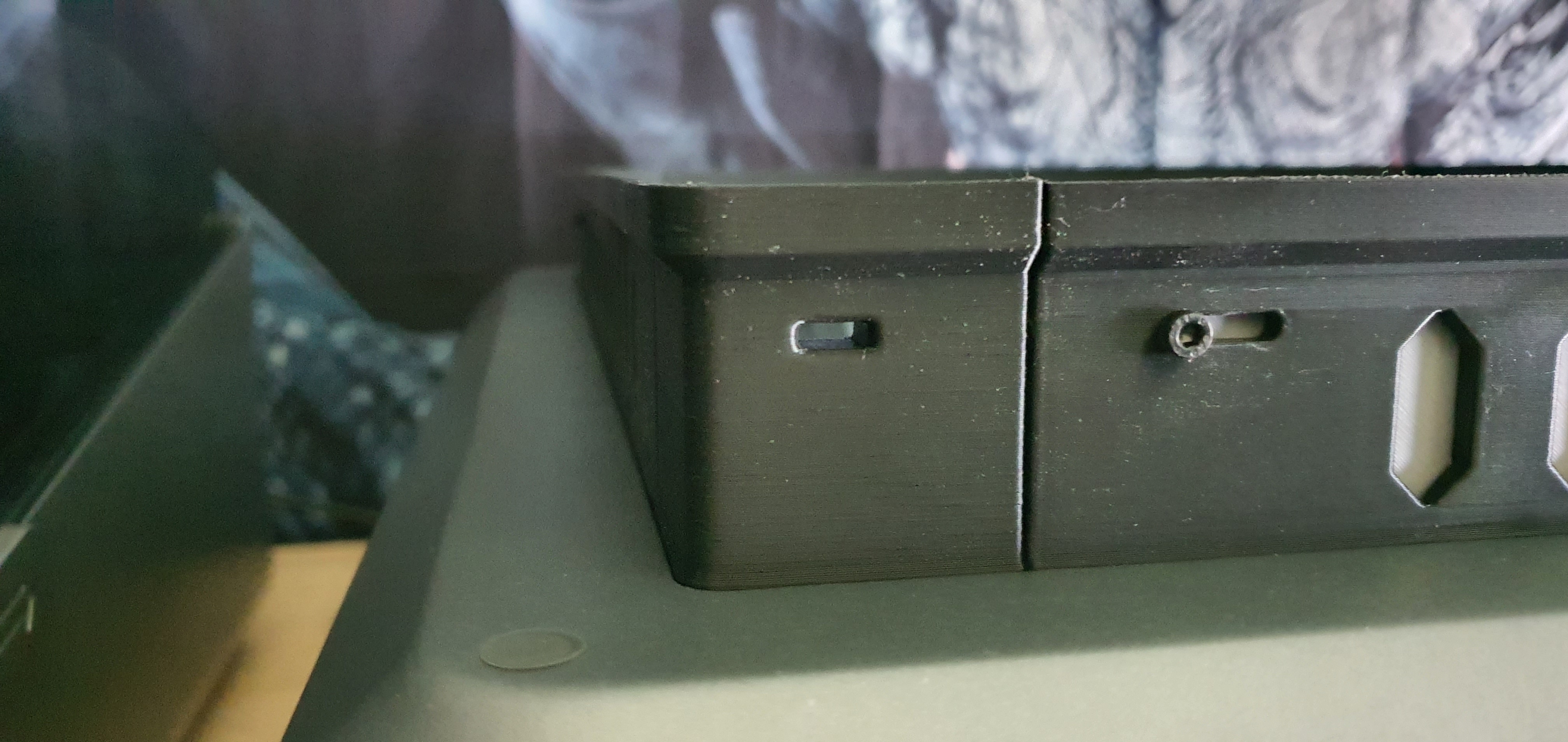

An M3 screw is used as adjustment knob for ventilation opening.
Add some self-adhesive foam tape as support for the glass cover.

Because higher temperatures can occur in the heated chamber of the K2 plus, it is recommend printing the raiser with a material that can withstand these temperatures.

edit 2025-02-22: added new version VE2
user requested improvements:
- more ventilation: slightly enlarged slots; smaller corners so 2 more slots on each size
- optionally the parts can be screwed together to increase rigidity (M3x8 button-head screws)
- increased tolerance of the sliders for easier movement


print settings:
printed on Creality K2 plus with eSUN eABS-GF
optimized for 0.4 mm nozzle ; 0.2 mm layer height ; 3 walls
8% rectilinear infill,  sliders 15% rectilinear infill
no support needed

I had no problems with bed adhesion or warping with this filament so mouse ear was enough,
but it is up to you to eventually use a brim.


included STEP files to easy modify

Update 12.04.2025:
Added K2Plus_riser_VE3 v3_B.step (new Export without any changes)
Added K2_Plus_Riser_V3.emf (new Export without any changes)

New note 16.04.2025:

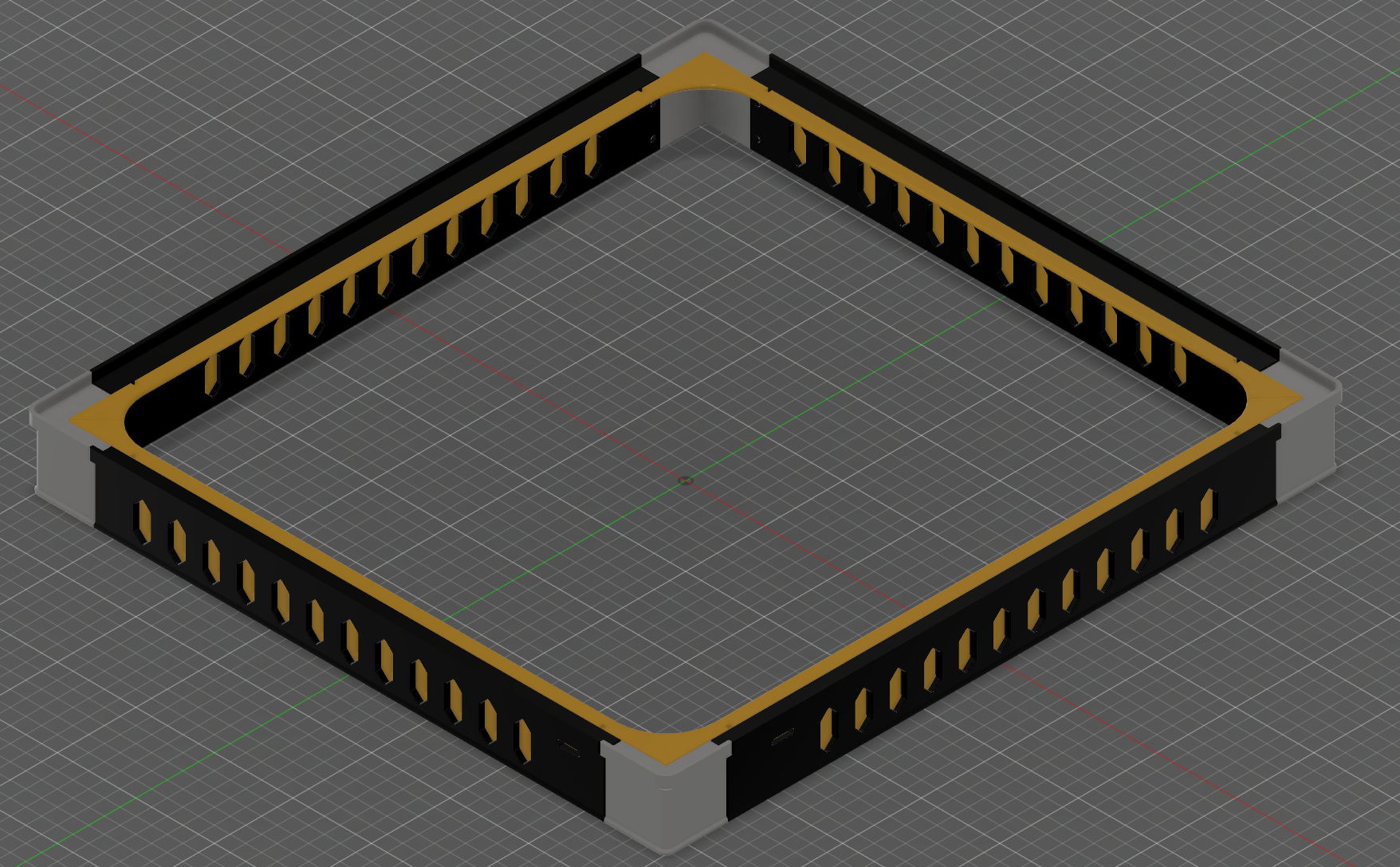

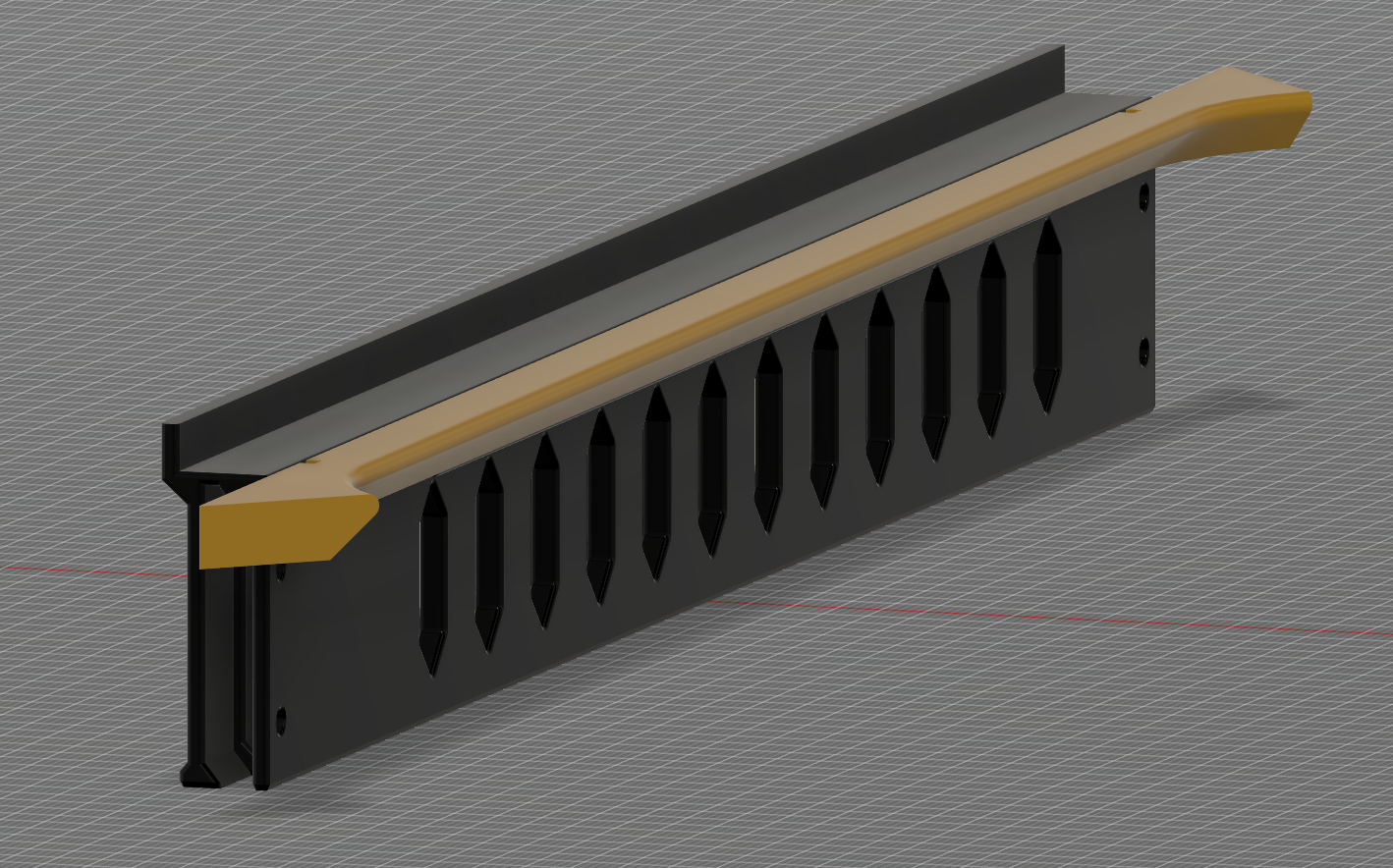

When printing LED frames, be sure to print plenty of brim. Otherwise, the ends will pull up.
I attached the LED strips with double-sided foam tape. I didn't use cable ties. This way, the Window sit neatly on the surface.
If you print as an *.stl file, I've added a list of all *.stl files so you don't forget one. You can find the list below the images.

New Note 13.05.2025
I used strong double-sided foam tape to fix LED strip.
I take this one: https://www.amazon.de/dp/B06XH2MKFH?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1
