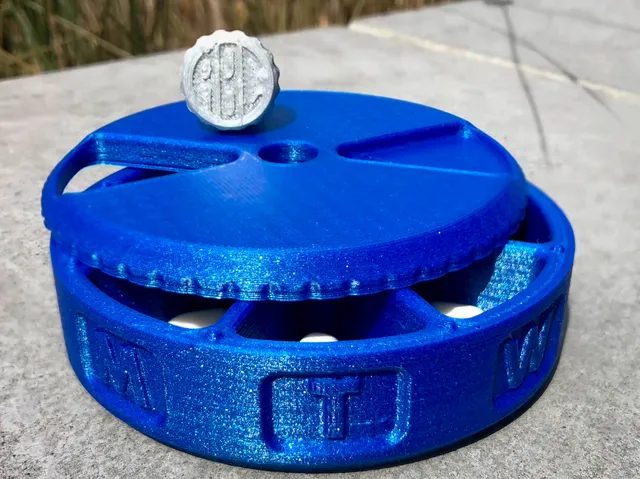

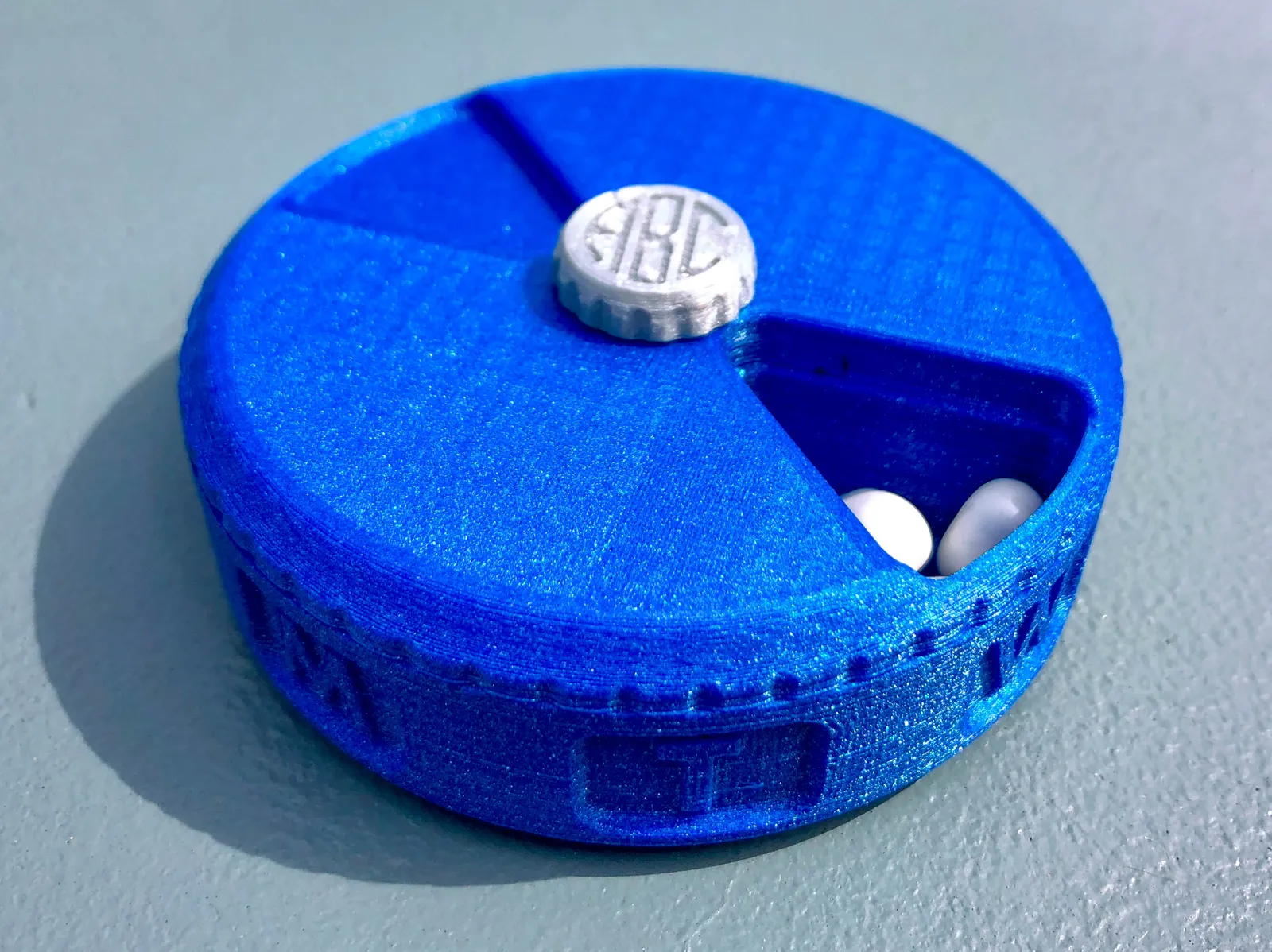

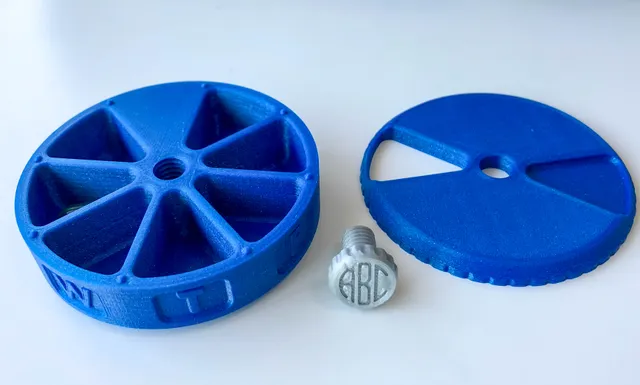

Pill organizer / vitamin reminder with a labeled slot for each day of the week. To use, loosen the screw 1 turn and twist the lid to the current day. The lid & screw are fully removable to refill the container at the end of the week.

To personalize your case, download the .f3d or .step file for the screw. Each letter is stored in a separate sketch and can be used to update the extrude feature to add your own initials. Just turn on the sketch for the desired initial, then double click on the extrude function and re-select the sketch curves.

Design inspired by the 7-Day Pill/Capsule/Tablet Dispenser by Jambeetle
and the Parametric Pill Boxes by pmoews

Print instructions

Category: Containers Print Settings

Printer Brand: Ultimaker

Rafts: Doesn't Matter

Supports: No

Resolution: 0.15

Infill: 20

Notes:

Works well with adaptive layer height settings in Cura

Personalizing in CAD

Personalizing the Monogrammed Screw

Download the .f3d or .step file for the screw.
Open the sketches folder and turn on visibility of the sketch for the desired initial.
Double click on the first extrude function in the history tab at the bottom of the screen.
Click X to clear the existing Profile curves, then select the new profile curves for your letter.
Click OK to update the feature.

Repeat for additional letters, then save out the .stl file to print!

Customizing Initial 1

Customizing Initial 2

Customizing Initial 3
