Extra kabelrupsclip voor de PTFE-slang van Bambu Lab X1 en P11 / 6

Beschrijving van de maker

Origineel in het Engels

Update:

Since some new printers from BambuLab have a modified cable chain, the originally designed clip did not fit anymore.
There are two variants, please check which one you need, otherwise the clip will not fit.
The difference is in the height of the cable chain:

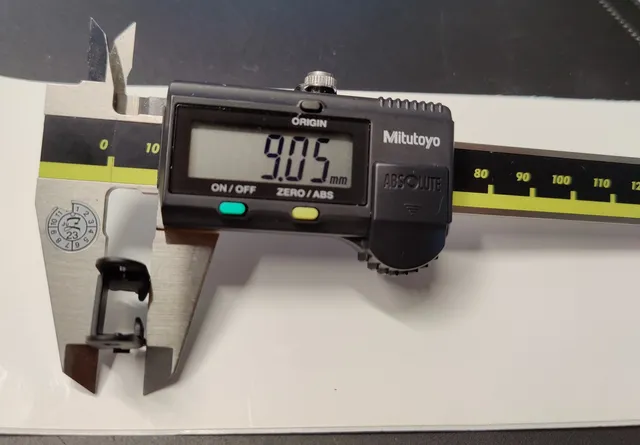

old version: height 14,4 mm --> print "old variant (14,4 x 9mm)".

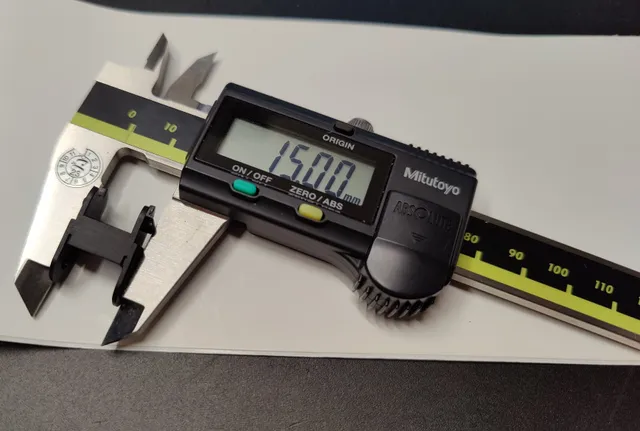

current version: 15,0 mm --> print "new variant (15,0 x 9mm)".

This clip is the same as the original cable chain of the BambuLab X1

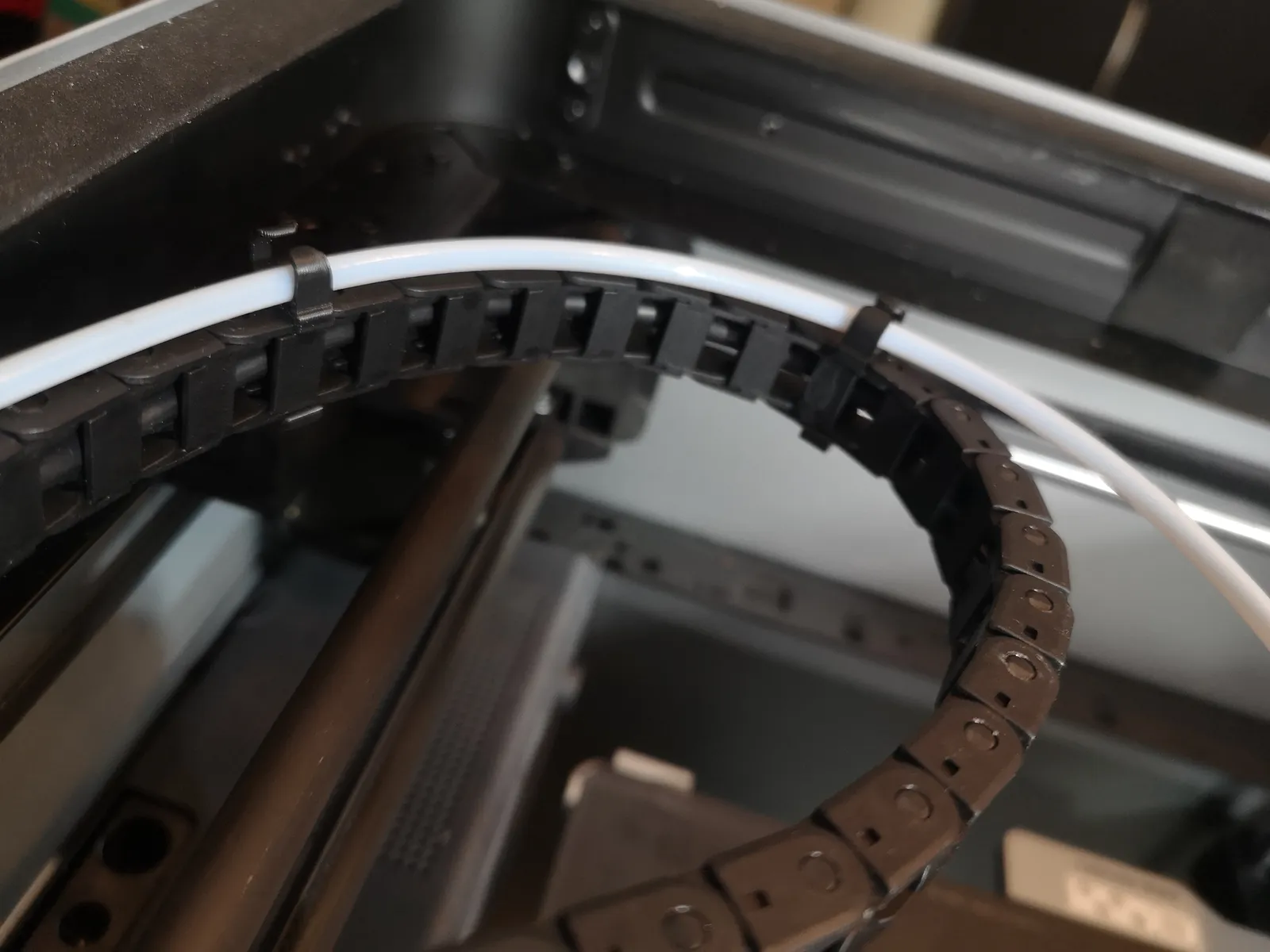

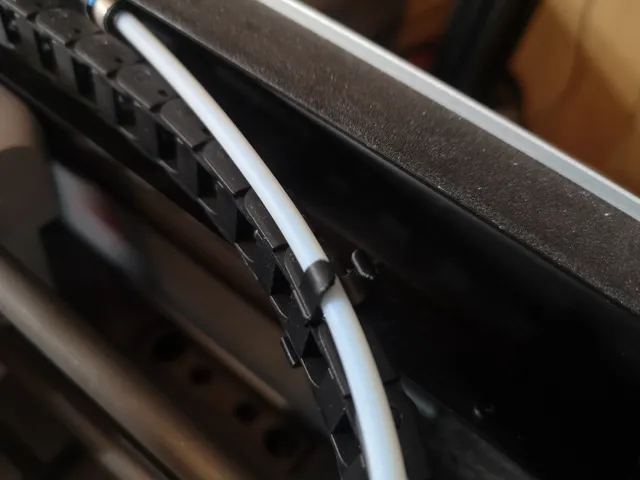

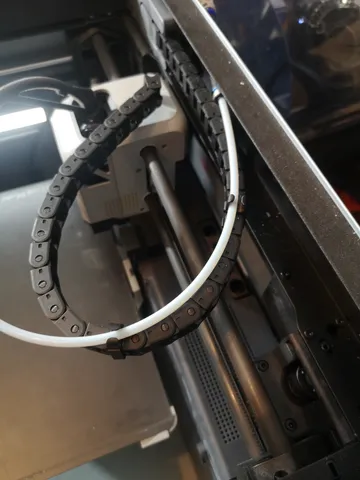

My PFTE hose was too loosely routed on the cable chain for me, so I wanted more than one clip on the chain. The Clip is snap-fit just like the original and works fine for me.

Print it with ABS, PLA+ or PETG for durability.

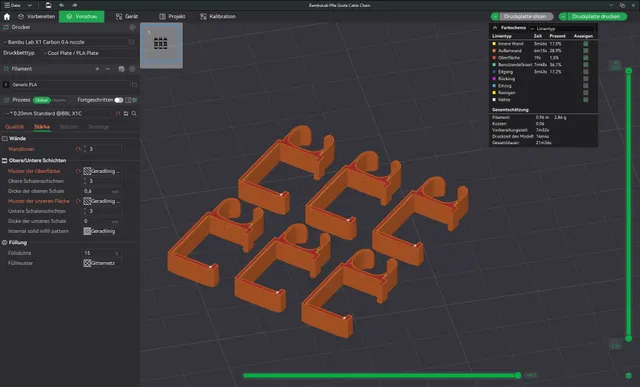

Print Orientation: horizontally - flat on bed (i added a picture)

If you enjoy this, then please leave a like, comment or make here.
