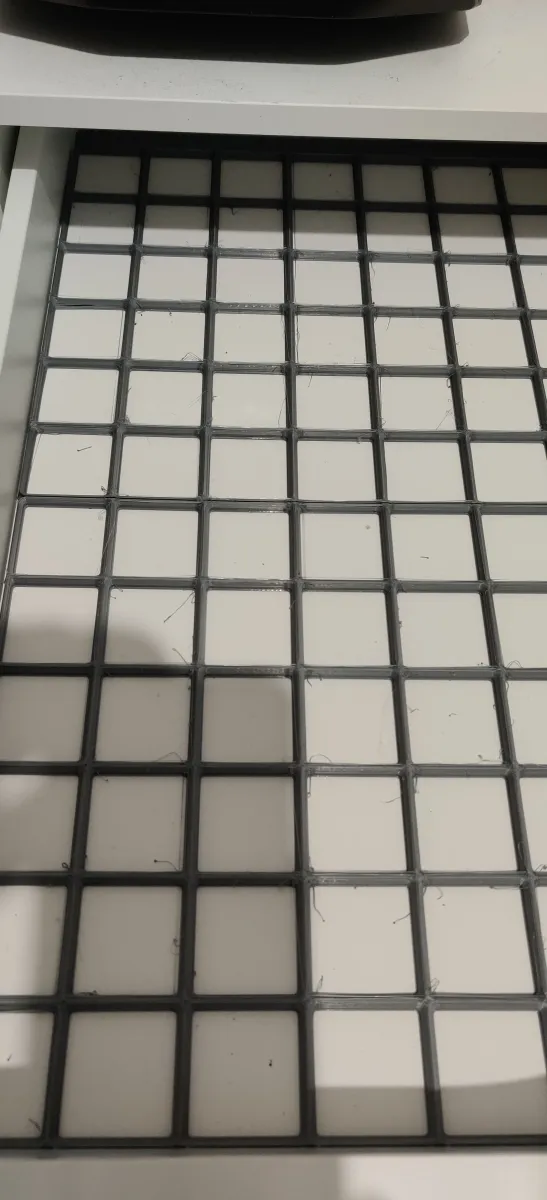

2 or 6 Part Gridfinity base inlay for Ikea Alex drawers with rims for better fit and less wiggle room.

Drawer Dimensions 297mm x 525mm should be a nice fit.

 *Updated to be a bit shorter since for some people it was a bit too large

Large (Print Part L1 & L2 once)
Part L1: Grid 7x6, Size 297mm x 252mm
Part L2: Grid 7x6, Size 297mm x 270mm

*Updated to be a bit shorter since for some people it was a bit too large

Small (Print Part S1 & S2 twice, Part 3 & 4 once)

Part S1:  Grid 4x5,   Size 169.5mm x 210mm
Part S2: Grid 3x5,   Size 127.5mm x 210mm
Part S3: Grid 4x2+, Size 169,5mm x 103mm
Part S4: Grid 3x2+, Size 127.5mm x 103mm

*There will be more Gridfinity inlays for the different Ikea Alex sizes as soon as I get my hands on them to measure and testfit.

**There will be better prictures in the future.
The first prints didnt look good cause the filament was bad.
Will reprint it when i have the time and then add better pictures but I think you get it anyway.

***Im normaly not using PrusSlicer but I did Slice the models for the g-code print time preview.
I couldnt select the correct printer here. I printed it with an Ender 5 Plus.
