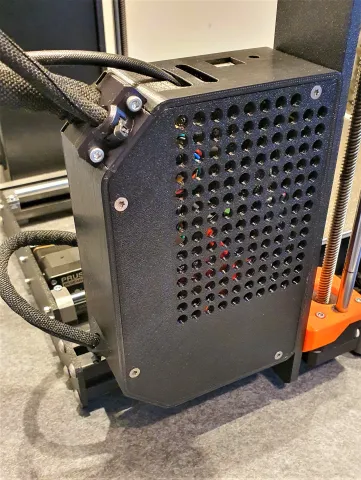

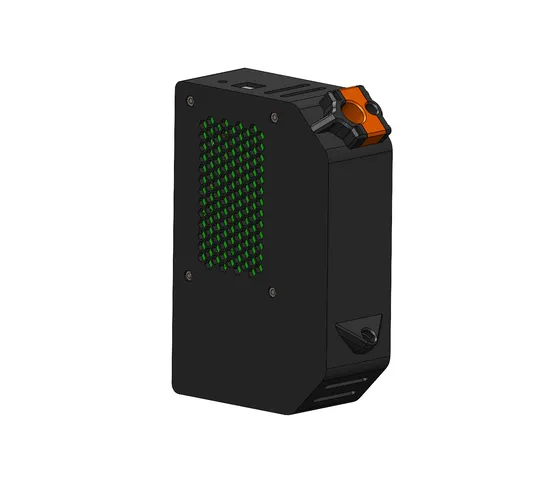

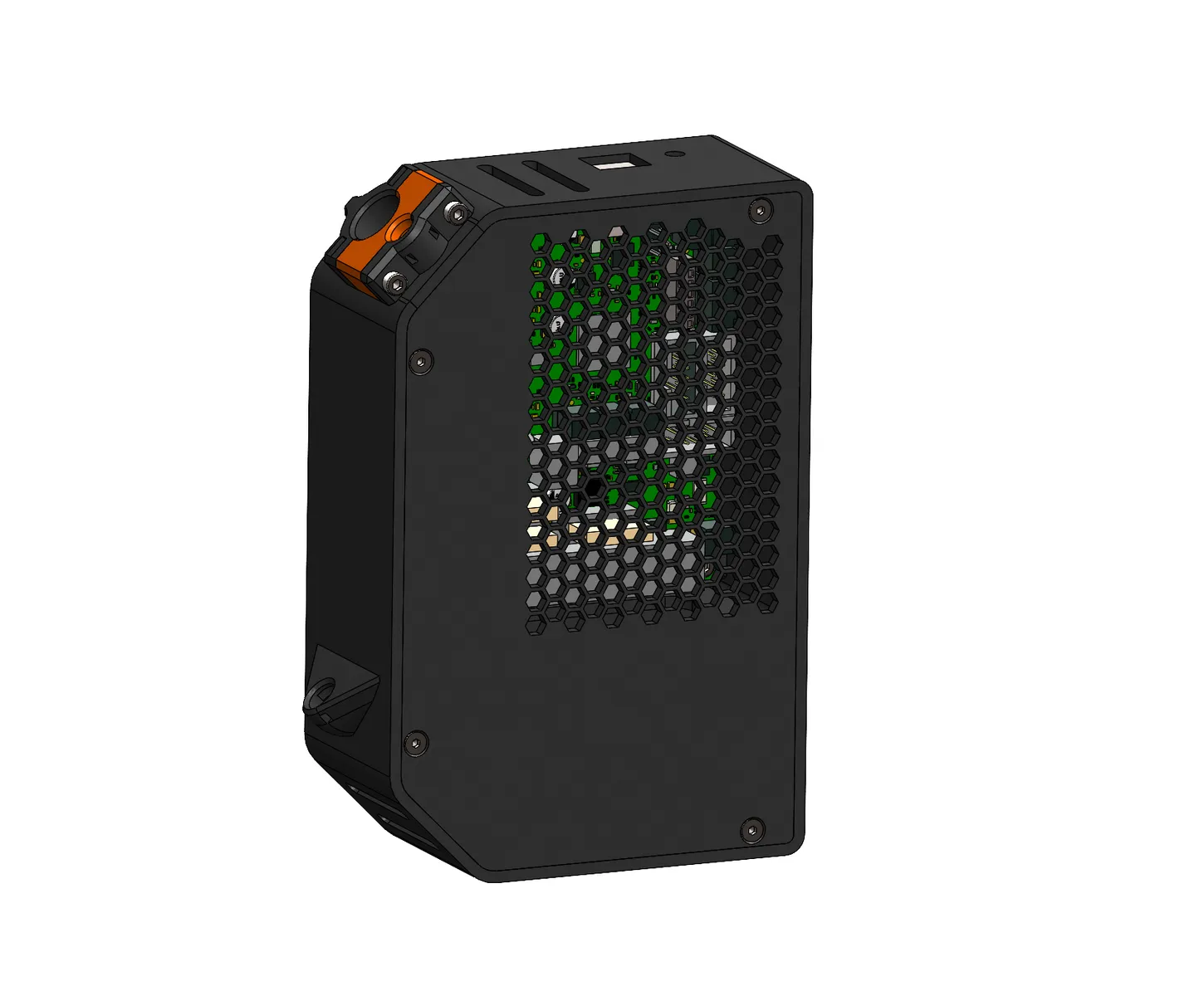

I created a bigger and reversed einsy case for better cable management and airflow

Fits on

• Prusa MK3
• Prusa MK3s
• Prusa MK3s+

To assemble everything you need:

• 6x M3 Square nuts (4x Cover and 2x Cablecover 1 and 2 )
• 4x M3 nuts (Einsyboard )
• 4x M3x10 countersunk screws (Cover)
• 4x M3x10 screws (Einsyboard)
• 4x M3x8 screws ( Case to aluminium frame)
• 2x M3x25 screws ( Cablecover 1 and 2)
• 2x zip tie 2,5x1,0 mm (Heatbed cable)

ASSEMBLING

#



Fasteners

1

Insert the zip tie for the heatbed cable before you assemble everything!

1x zip tie

2

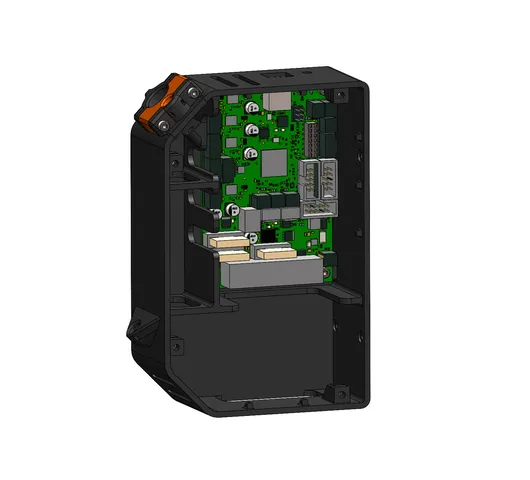

 Insert the M3 nuts on the backside of the case to attach the einsyboard

4x M3 nuts

3

Attach the Einsyboard with the screws to the case

4x M3x10 screws

4

Mount the case to the aluminium frame of the printer

4x M3x8 screws

5

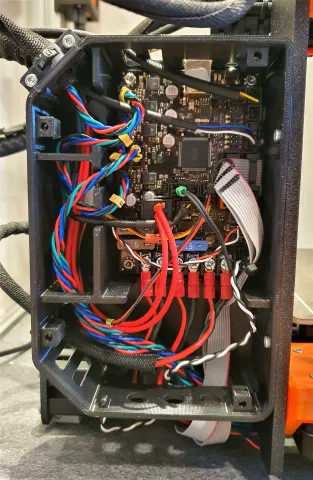

Insert the heatbed cable bundle including the textile sleeve in the case



6

Plug in the heatbed cables to the board and tighten the zip tie



7

Connect the extruder cable bundle  and the PSU cables to the board



8

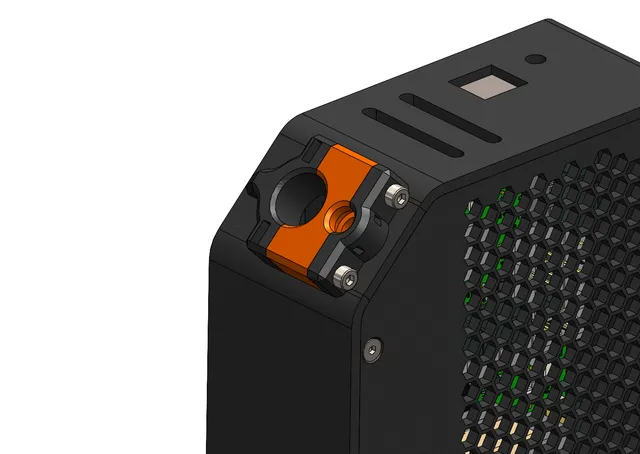

Mount the extrudercable cover part 1  to the case

2x M3 square nuts

9

Connect the X-Axis cable to the einsyboard



10

Mount the extrudercable cover part 2 to the case

2x M3x23 screws

11

Attach the cover to the case

4x M3x10 countersunk screws

Einsy connections



PSU and heatbed power cable connection

https://help.prusa3d.com/en/guide/8-electronics-assembly_174100#175093

FAN connection (optional)

Print instructions

Select "Supports from build plate only", no additional supports needed.

Updates

20.04.2023

New revision with a lot of updates.

To use this you have to print everything again.

Parts are NOT interchangable to the old revision!

30.10.2022

Adjusted the thickness of the “einsycase_cable_cover_2” part.

Instead of 23mm long screws you can now use 25mm long screws.

30.04.2021
The screwable cover has now two holes for the extruder and x-axis motor cable.
To assemble you need two M3x23 screws

02.12.2020
Much easier assembling of the extruder cables
with the screwable cable cover

30.10.2020
Additional cover for 40x40 fans

20.06.2020
New cover

18.06.2020
Slightly bigger hole for extruder cables
Two more air vents

15.06.2020
Case Cover: Hole for x-axis cable higher
Einsy Case: Improved holes for square nuts
