Overview

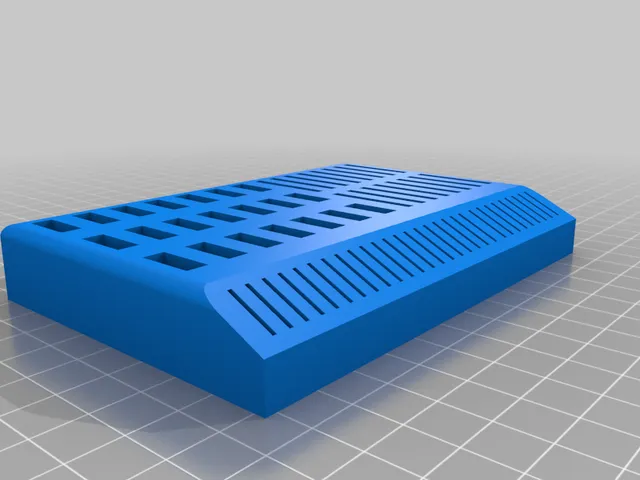

File this under the "yet another" category, but yes, I wanted to model one too. I have a bunch of media and dongles and wanted a nice rectangular "plot" to arrange them on. Though this isn't a remix, this was definitely inspired by Lalo_Solo's USB SD and MicroSD holder for wide USB sticks. Prior to making this model I used two of his model, mirrored one, and glued the two together on the lengthier side.

This will hold:

• 24 USB-A devices of fairly-wide variety (see photo)
• 16 SD cards
• 29 MicroSD cards

Dimensions

• Length: 124mm
• **Width:**8 4mm
• Height: 18mm

Estimated Resources (using Cura 5.2.1):

• Print Time: 17hrs, 5min (with 50mm/s print speed)
• Material Use: 124g, 41.46m

(I generally print with 3-line walls. Decreasing the wall thickness will decrease the filament used)

Related Content:

• Edit on TinkerCad
• View on my blog

Print Settings

Printer Brand:

Creality CR-10 v2

Rafts:

No

Supports:

No

Resolution:

0.2mm

Infill:

25%

Filament: Hatchbox PLA White
