Koffertje voor AFA-ontbraamgereedschap met mesjes1 / 5

Beschrijving van de maker

Origineel in het Engels

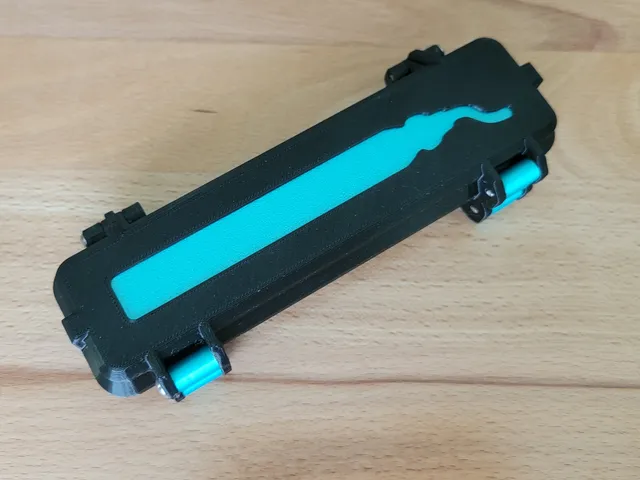

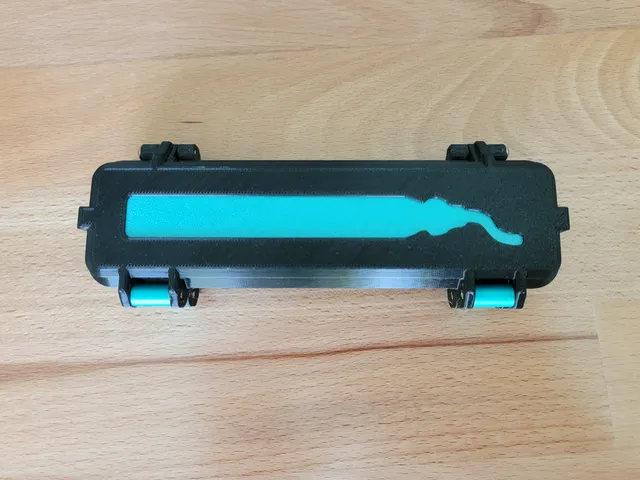

This is a remix of Chewey's deburring tool case and Whity's parametric rugged box. It has an insert construction in the style of PjotrStrog's Multipart Pinecil case.

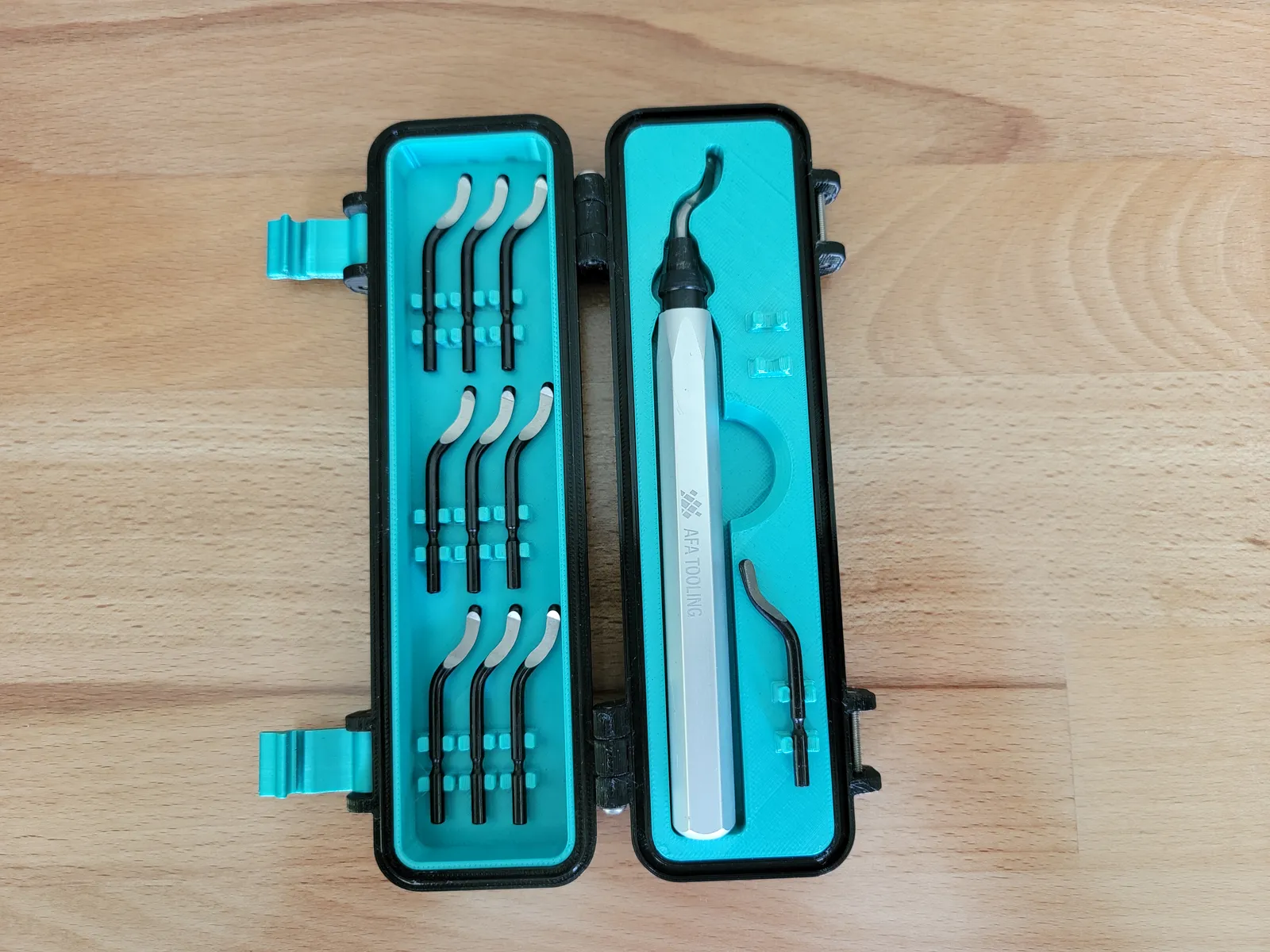

Like the original, this case fits a 150mm length tool from tip of blade to end of handle and has the sturdy blade holders. The handle width is 15mm across (widest) edge of the hex handle.

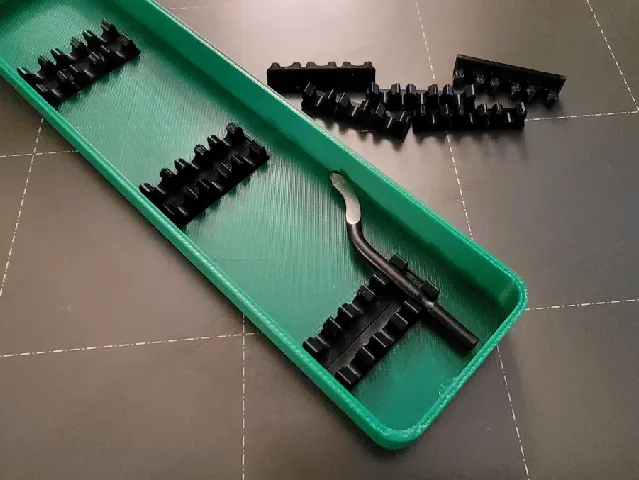

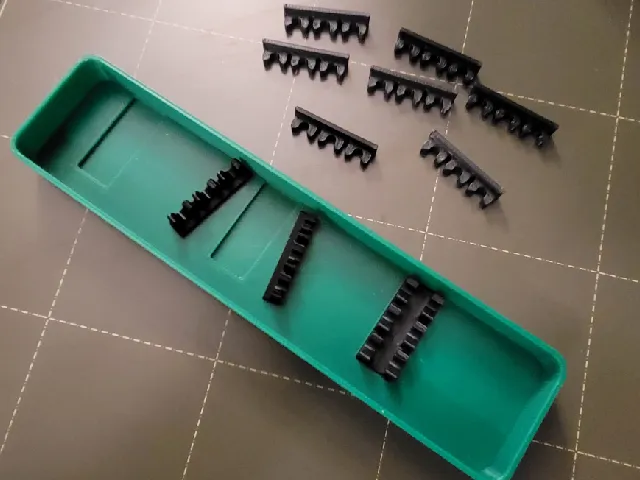

For people having issues with the blade holders breaking, I've added a version of the top insert which has separated blade holders. The blade holders are printed in a better orientation for strength, but need to be glued in place on the insert. See last photos for details.


See remix for 155 length tools here:
https://www.printables.com/model/591653-deburring-tool-case-155mm-insert

From the makes people have posted, here is a list of the tools and what insert was used.

150mm Length:
- AFA Tooling
- Meistergriff
- Parkside
- CGBoom

155mm Length:
- Libraton

Updates:
- Jan-31-2024:
     - Added bottom insert with no blade holders

- May-16-2024:
     - Added top insert with separate blade holders
     - Blade holders to be printed  laying down and glued into matching slots in top insert.

- June-17-2024:
     - Added lid with no cutout

Assembly

You will need six 20 mm long M3 screws to assemble it. The magnet used for holding the tool in place is 6mm x 3mm.

Super glue can be used to hold the magnet and inserts in place if the friction fit is not strong enough.

Additional Attributions

Due to new constraints on Printables.com, I had to move some attributions here:

The original deburring tool case from morleykert_96343:
https://www.printables.com/model/441000-deburring-tool-case

The parametric version from @Daboh_341565:
https://www.printables.com/model/450453-deburring-tool-box-variable-length
