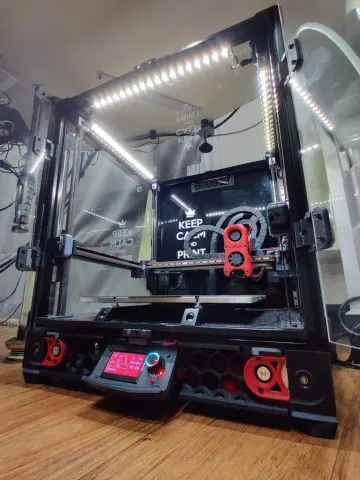

LED Strip Holder designed for VORON 2.4

LED Strip Holder (200mm).stl
It's 210mm long and for a 20cm long LED strip.

LED Strip Holder (250mm).stl
It's 260mm long and for a 25cm long LED strip.

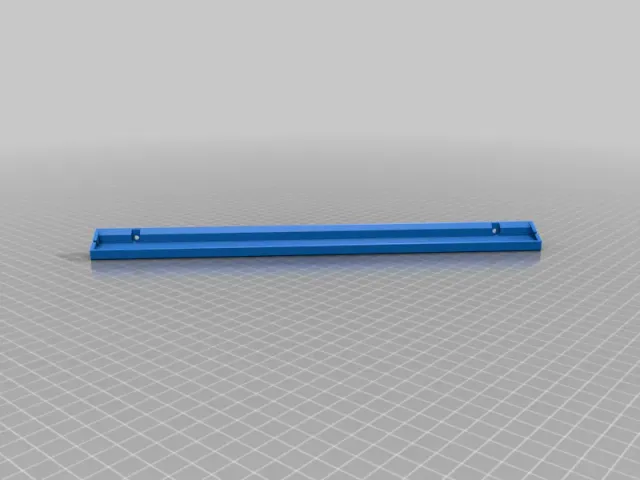

LED Strip Holder (300mm).stl
It's 310mm long and for a 30cm long LED strip (best-fit VORON 2.4 - 300mm).
And this is a diffuser for this holder. Check it out.
https://www.printables.com/model/217102-voron-led-diffuser.

LED Strip Holder (350mm).stl
It's 360mm long and for a 35cm long LED strip. (best-fit VORON 2.4 - 350mm).

LED Strip Holder (400mm).stl
It's 410mm long and It's for a 40cm long LED strip.

Use with a regular 10mm width LED strip.
Cut the LED strip to length then stick it to this holder with 3M double-sided VHB tape. Mount to the top frame with 2pcs of M3x8mm and 2 pcs of M3 t-nut.

Print Settings

Printer:

VORON 2.4

Rafts:

No

Supports:

No

Resolution:

200

Infill:

15

Filament: Ziro ABS Black


Notes:

Shell: 3
Top: 5

Bottom: 5

How I Designed This

Category: 3D Printer Accessories
