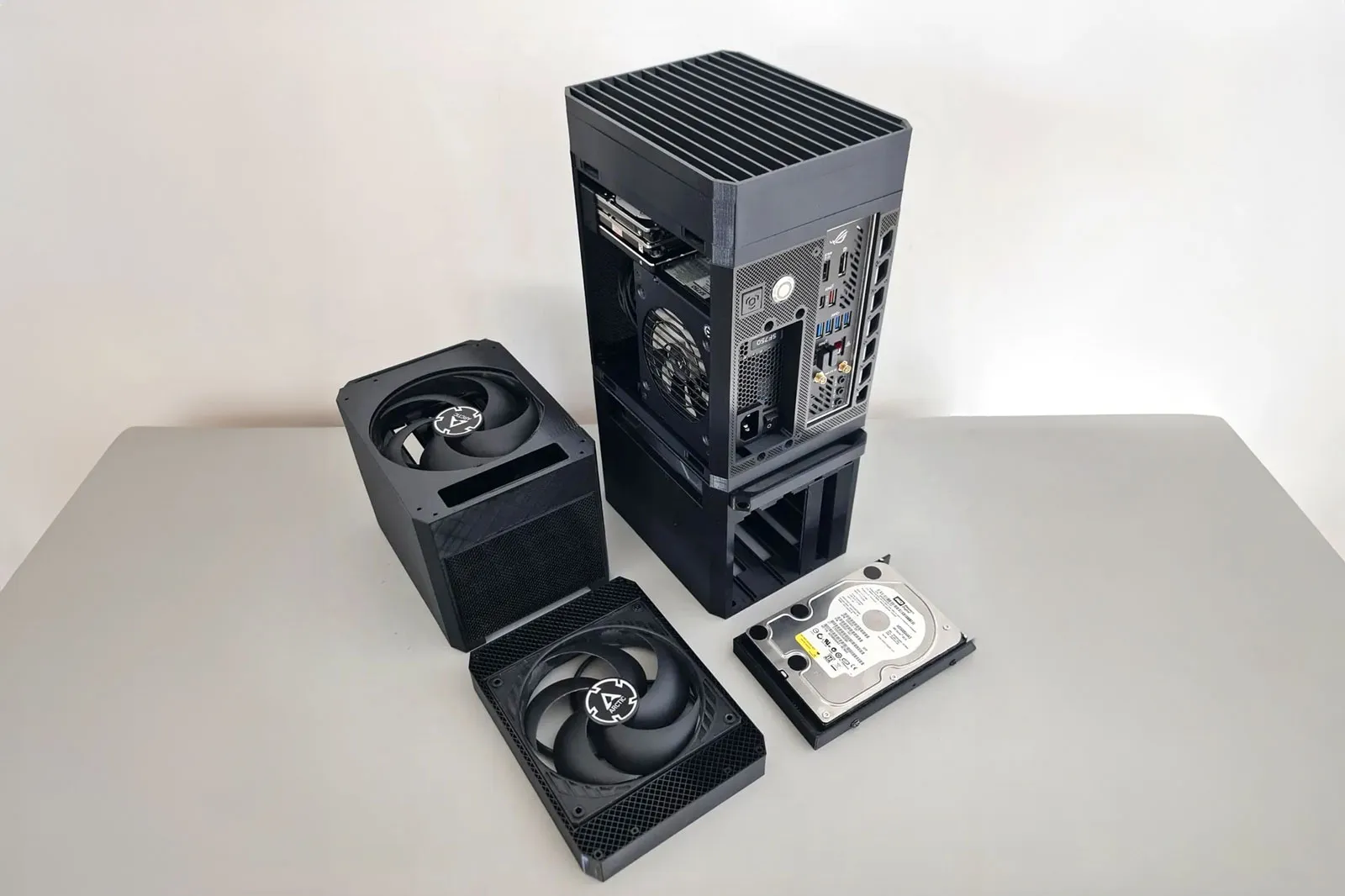

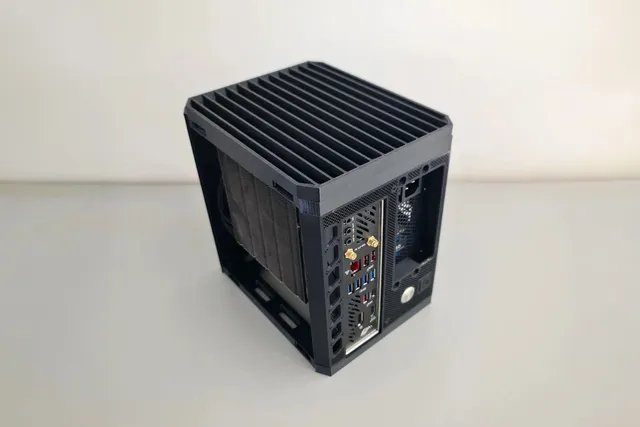

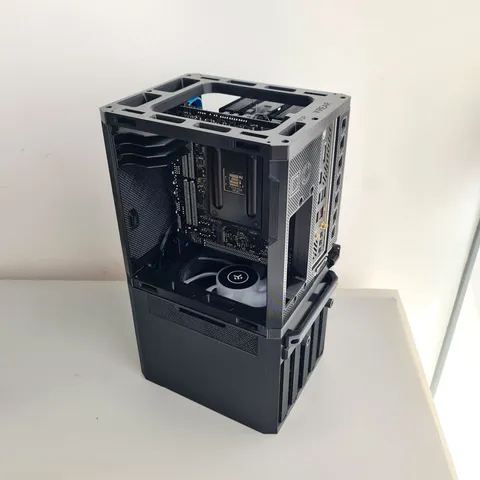

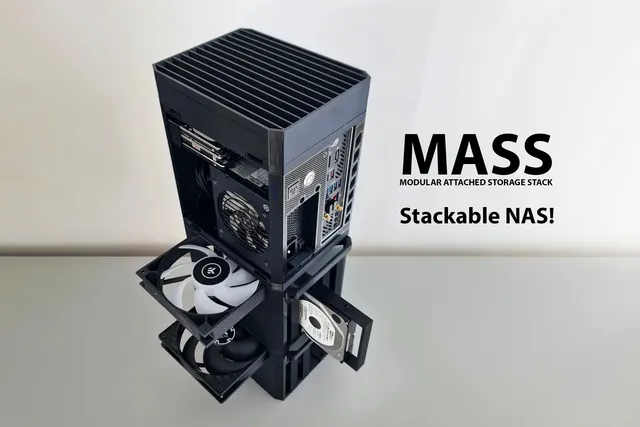

The Modular Attached Storage Stack (link) is a compact 3D printed NAS enclosure with expandable bays support up to 8x 3.5" + 3x 2.5" drives.

👉For the premium version of MASS with additional features, please see MASS Premium Page here.

Features

• Minimal Part count. Maximum Strength.
  Sturdy and simple assembly with 1 screw type for all

• Expandable Drive Support
  Stackable Modules for up to 8x 3.5” + 3x 2.5” drives

• Fully 3D Printable
  210x210mm Print volume, optimized for FDM

• Powerful Airflow
  Quiet vertical airflow with 3x 140mm fans

• Customizable
  Add a touch screen and other optional features

The Premium version of MASS adds the following:

• PCIE Slot Support

• 5 Drives per Caddy

• Capacity for Up to 13 Drives

• Handles

• Dual 2.5” to 3.5" Drive Adapters

• FlexATX PSU support

• Addon Fan Modules

• Supports development of more MODCASE designs!

Specs:

MASS Premium

MASS Free

Drive Bays

Up to 10x3.5” + 3x2.5"

4x3.5”+ 3x2.5"

PCI-E Slot

1 Slot Low-Profile

NA


PSU

SFX, SFX-L, FlexATX

SFX, SFX-L

Fans

3x 140mm or 120mm

3x 140mm or 120mm

CPU Cooler

66mm tall

55mm tall

Printer Requirements

Min. Bed 210x210
240°C Nozzle

Min. Bed 200x200
240°C Nozzle

Core Size (APU)

210x199x162mm 6.7L

203x199x151mm 6.1L

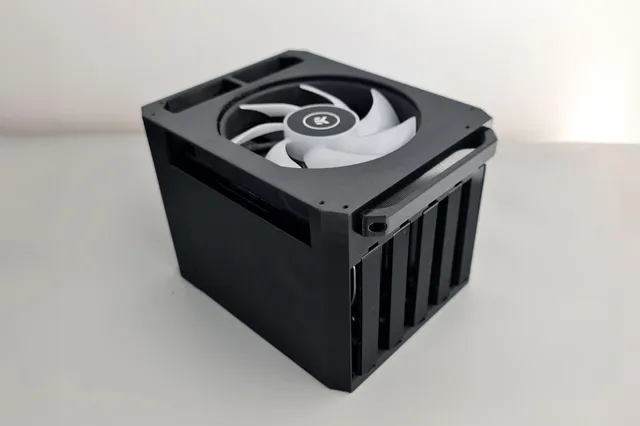

Bay Module

199x162x150mm 4.8L

199x150x150mm 4.5L

Motherboard

ITX

ITX

Material

1-2kg PETG

1-2kg PETG

Handles

Low profile and standard options

NA

Display Mod

up to 7" with adjustable CAD

up to 5" with adjustable CAD

Additional 2.5" Bays

Optional mounts for 2x2.5" drives in a 3.5" bay

NA

Mechanical PBT

Optional: use keyboard switch as power button.

NA

Required to Complete

Screws: M3x20 (40pcs) - Amazon Option, AliExpress Option
Power Button: Ø16mm - Amazon Option, AliExpress Option

(MASS has been designed to use one screw type for all)

PC Parts List:

• Mini ITX Motherboard

• SFX, SFX-L or Flex PSU

• 3.5” HDDs (Up to 10 Drives)

• 140mm Fans (Up to 4 Fans)

• 5in1 SATA Power and SATA Cables

• [Optional] PCIE Sata Expansion Card or PCIE SAS HBA Controller

• [Optional] 2.5” HDDs (Up to 13x)

Download Instructions:

MASS_Instructions.pdf (v1.3)

Note: Optional files are under "other files" section of your printable download page.

Update Log

New in V1.3

• Improved fitment for all ITX motherboard types, including boards with integrated IO shield. (Top and Rear pieces updated)

• Mechanical Key Cap integrated into Rear punchout

• FlexATX PSU mount added to Free version

• New Optional Front with no 2.5" drives

• New Optional Front with 4x2.5" drives for core module with FlexATX.
  (The core can be used as a compact standalone 4x2.5" bay NAS)

Note: Optional Front panels are located in the optional folder. All updates are backwards compatible.

New in V1.2

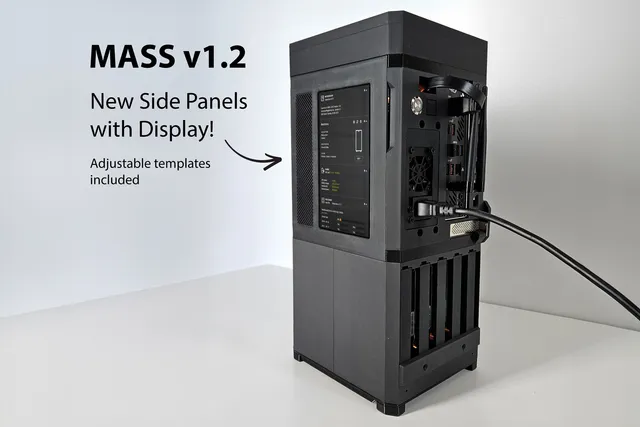

• New side panels with integrated displays added

• Adjustable CAD templates for side panels

• HDMI / USB passthrough added to rear

• New 2-Split Bays module added

• Tool-less Drive retainer added

• Optional screw and locknut option for drive retainer

• Bays module has improved clearances for SATA connectors

Note: The old single body Bays module is now in the optional folder. All updates are backwards compatible.

Reddit Discussions on MASS:

• r/datahoarder - Free Modular NAS Enclosure

• r/sffpc - Free Stackable ITX NAS Case

FAQ

▶How much does it cost to print?

1-2kg of filament. MASS is tested on generic PETG. You can typically find 1kg rolls for $13/kg each (Link), $12/kg if you buy 4 (Link), $10/kg if you buy 10 (Link).

▶Premium vs Free difference?

Premium has PCIE slot support, holds 5 drive per caddy, supports up to 13 drives, has handles, extra 2.5” drive adapters, Flex PSU bracket, addon Fan modules and ongoing updates. It supports development of more awesome designs.

▶Can Free version use premium modules?

No. MASS Free Version was the original model without PCIE slot, making it slimmer by 11mm on the width of the tower, and thus not compatible with the PCIE equipped Premium model.

MASS Free is still a potent enclosure with 4x3.5” bay support and can technically stack up to 8 drive bays using M.2 HBA.

▶Is MASS durable?

MASS is built with an intimate understanding of the non-anisotropic strength properties of FDM. The parts are appropriately designed to overcome layer splitting issues by orientation and print settings. MASS development is committed also to ongoing improvement to ensure it is a durable and reliable option for your NAS setup.

▶How to connect more than 4 drives?

To expand the beyond the 4 sata ports on most ITX motherboards, you can install a Low profile PCIE SATA card on the premium model. You can also use an m.2 SATA controller to add a few more.
