Update 2023 :

New designed parts available!                                                                                                 Clamping range now 25mm and includes V-groove                                                                     New grippy slider                                                                                                                           Check the file names starting with 2023 NANO VISE…                                                                The new basic version (no desk clamp) you can find here:                                                   https://www.printables.com/model/546422-2023-nano-vise                                         ===========================================================

NANO VISE V2 is here!
This is a complete renewal of my quite famous Nano Vise https://www.thingiverse.com/thing:2066644 and in fact the vise base and slider has undergone some design & size corrections like no more sharp edges at the dove tail entry plus the vise jaw-height has increased to 6mm while the overall clamping width remains max. 20mm.The screw position on the slider part has been accurate re-positioned to provide more straight clamping movement.
2 types of slider available (blank or grooved jaw)

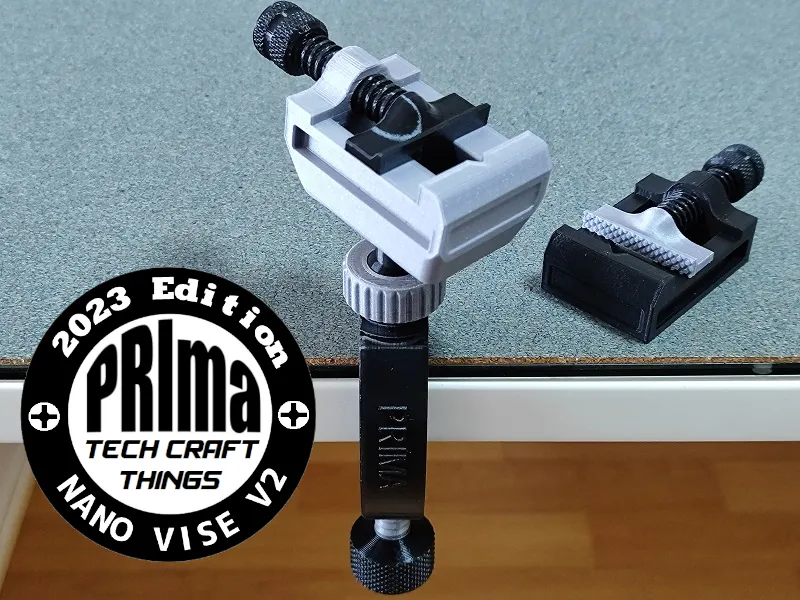

DESK CLAMP VERSION

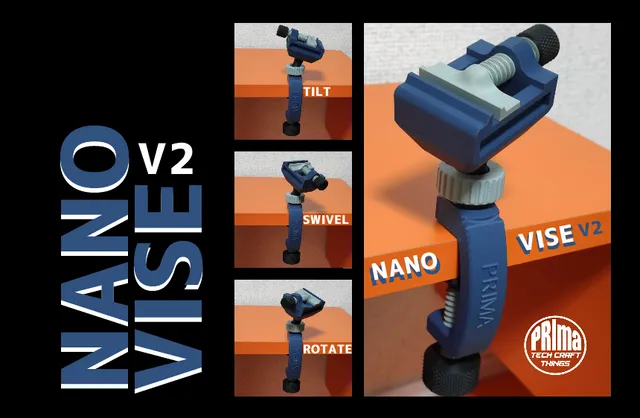

What's completely new here is the C-clamp which includes one ball-joint system where the shaft is fixed by a M8x10mm Allen screw (with cylindrical head) to the vise base bottom.
Clamp it to your workbench or desk and you have a very compact sized vise which can be positioned as you like.
original C-clamp fits table plate from 15 up to 40 mm thickness
additional C-clamp for bigger thickness available as well

here is a link to a M8x10 screw which you can print :
https://www.thingiverse.com/thing:5160028

all parts can be printed without support
happy printing!

#FOR PERSONAL USE ONLY#
#NOT FOR SALE#

Print Settings:

0.2mm Layer Height

Infill min.20%

3walls or more
