This is an improved version of Tomaae's parametric funnel with additional parameters and the ability to enable/disable “optional” features. It also includes support for a tapered tube section. The table below contains a complete list of parameters.

Parameter

Variable Name

Default

Total Height

Height

60mm

Tube Height

Tube_Height

20mm

Funnel Diameter

Top_Outside_Diameter

60mm

Tube Diameter

Tube_Outside_Diameter

10mm

Tube Taper Angle

Tube_Taper

2.5°

Tube Tip Angle

Tube_Cut_Angle

30°

Wall Thickness

Wall_Thickness

1mm

Hanging Ring

Hanging_Ring

true

Vent Ridge

Ridge

true

Ridge Thickness

Ridge_Thickness

1.5

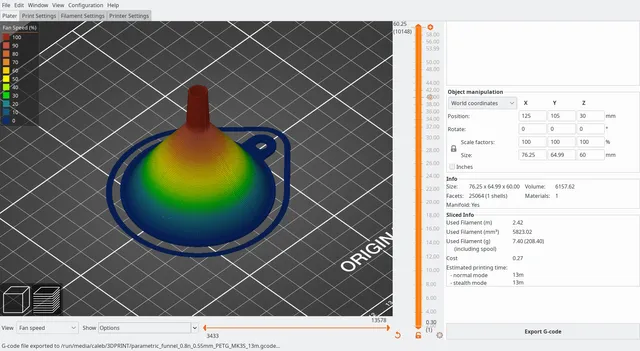

Due to the parametric nature of this design and the heavily customized print settings I used, an STL was not included. I encourage users to use export their own STL from OpenSCAD and load it into my 3MF file. I used a 0.8mm nozzle to improve print speed.

2022-07-24 Update: add ridge thickness parameter to improve vase mode printing quality. Update sample 3mf to support vase mode “out of the box”.

Note: I strongly recommend printing this in PETG due to its excellent chemical resistance.
