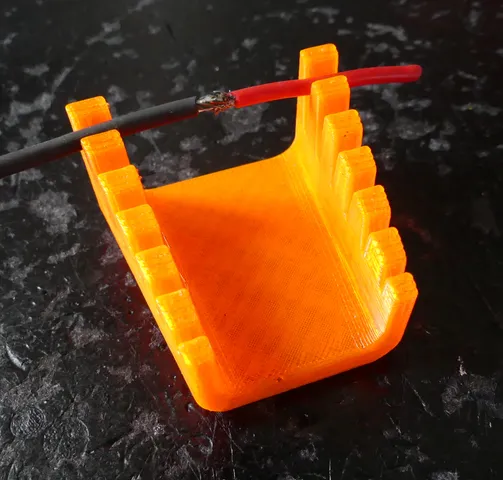

Origineel in het EngelsThis is a helper for cable soldering.

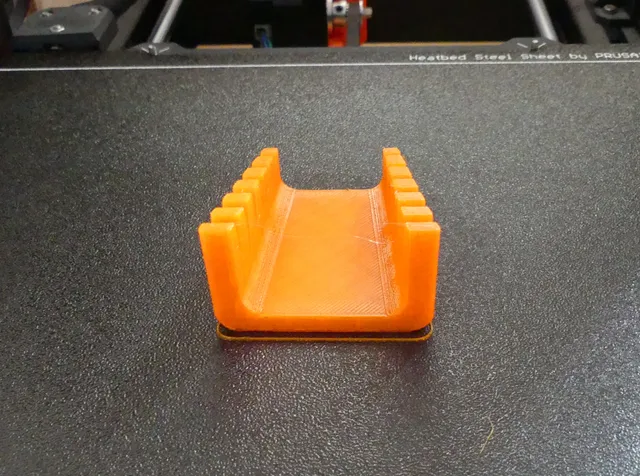

Exchanged to a faster to print design and attached CAD file.
Update 16.04.2023:
As requested I added a chamfered version of the model.
Thanks and Credits to the originator of this print: mistertech
https://www.thingiverse.com/thing:1725308
Update 26.01.2024:

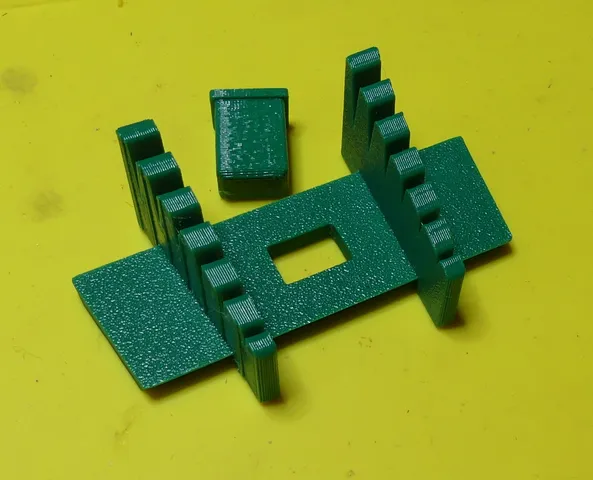

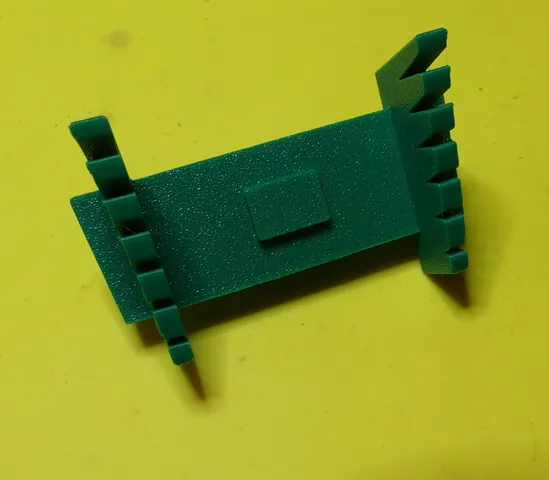

As there were some remixes which added more fancy fuctionality to this soldering jig. e.g wider, narrower, vice holding capabilities etc. I added a flex-version with variable width and the possibility to add a post for vice clamping. It is based on a dovetail base and you can adjust the width of the jig. Optional you can press in the post. Also added updated Fusion 360 drawing.
