I always was curious about, whats the best compromise of the original gardena variable jet for maximum water flow, to minimize my time efffort for watering my garden.

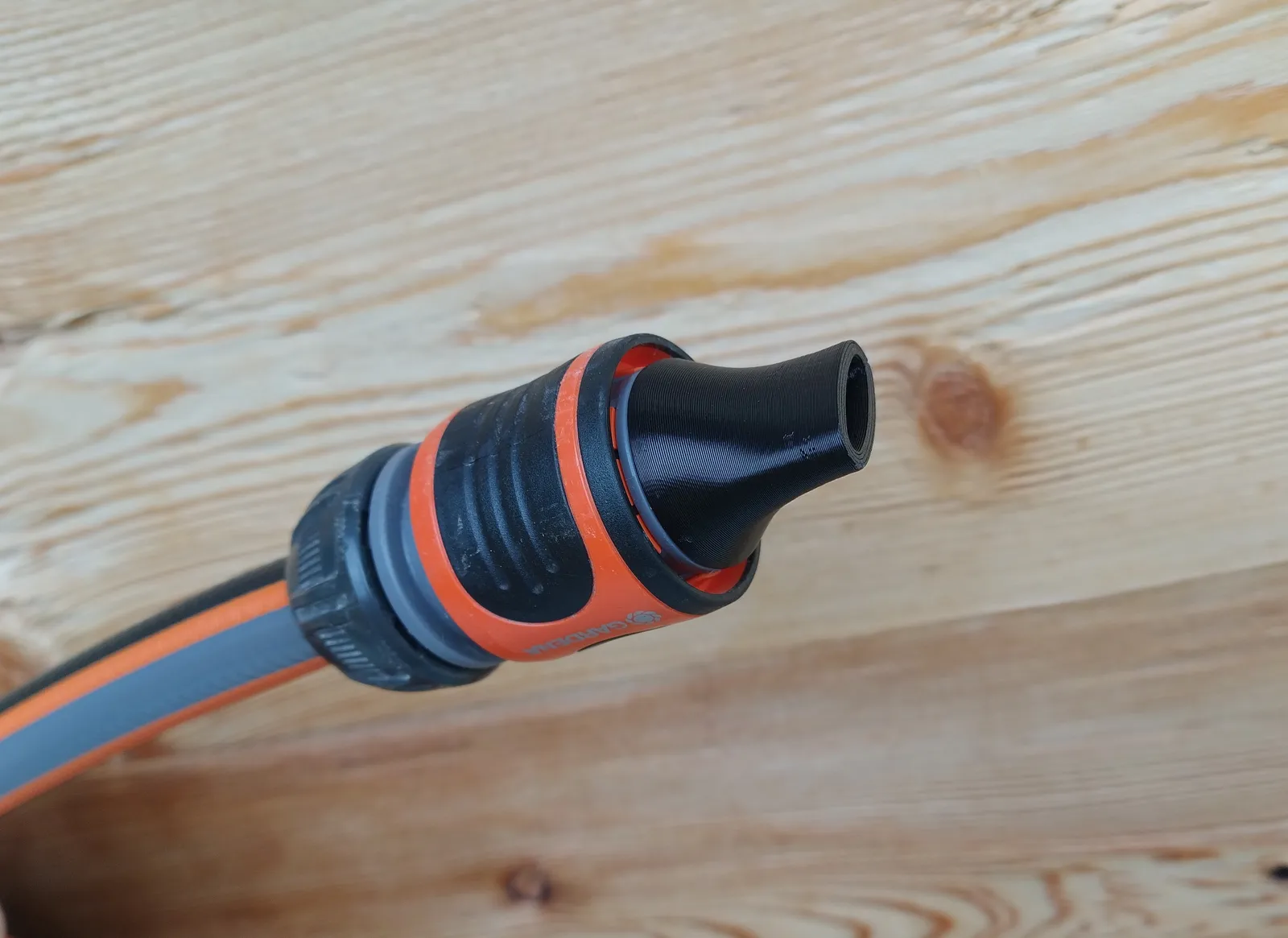

So i tried many different designs by myself and came to this simplified high flow jet. With this jet the resistance is reduced to a minimum, the cross section is maxed out and the throw distance of the water is in my case around 2-3 meters. It does not spray, only a litte distribution to be kind to my plants.

Print it with the jet tip on the build plate - the gardena coupling upwards. Very simple to print with any filament types. No support needed.

You need a rubber o-ring for sealing (16mm outer diameter, 2.5mm ring thickness).

Have fun and post a make if it helped you save your time for watering!
