Hook for the HSW

Compact and strong hook that can be printed without support.

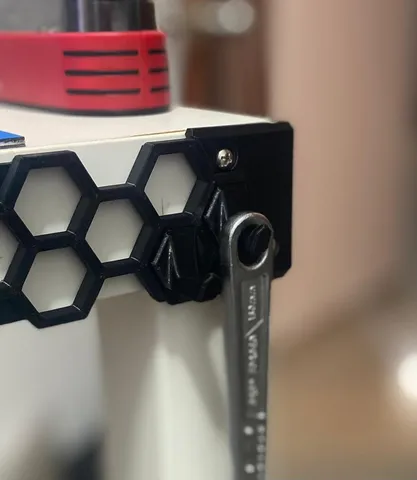

Easy to Snap to your Honeycomb Storage Wall.

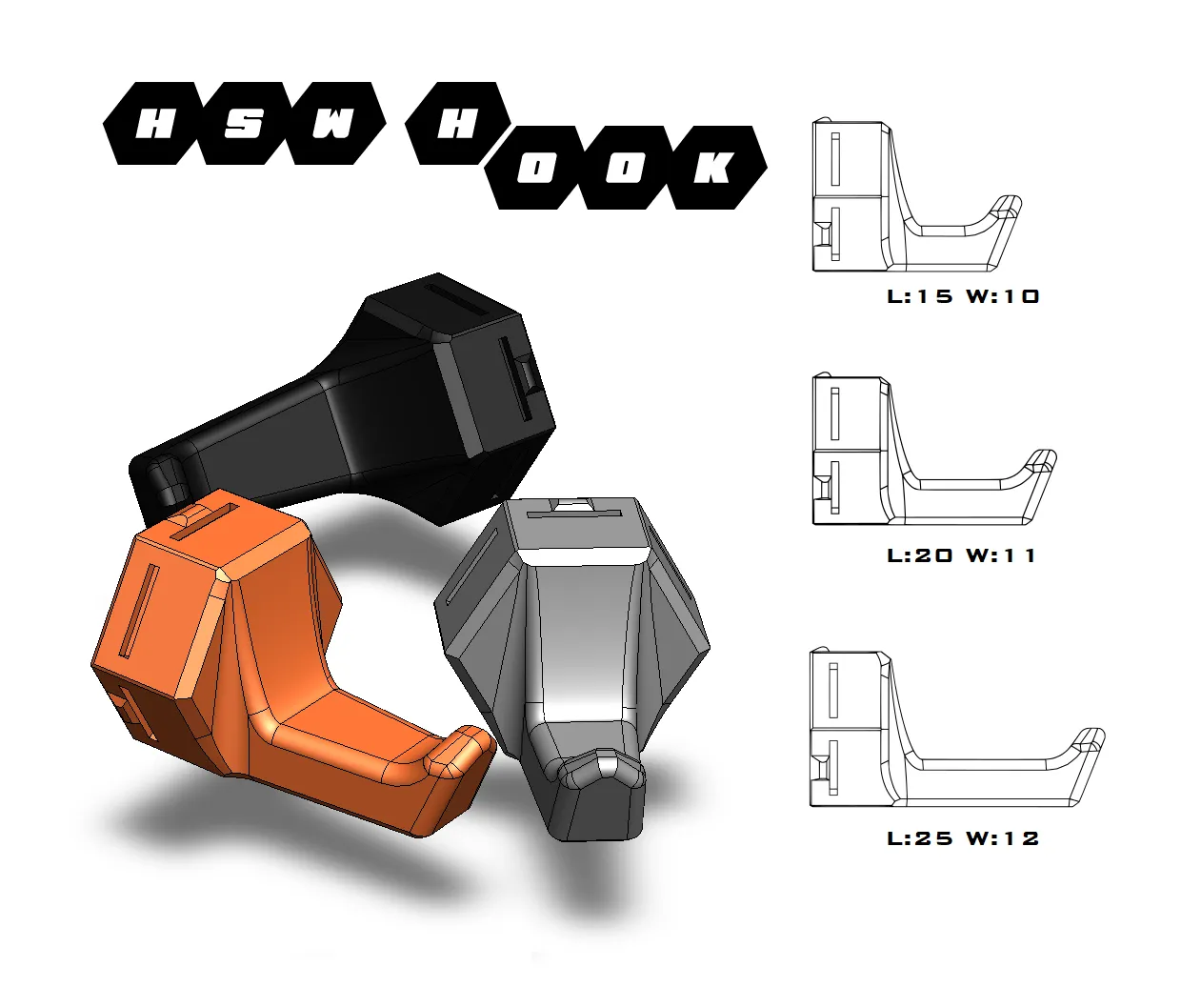

3 Different Sizes.

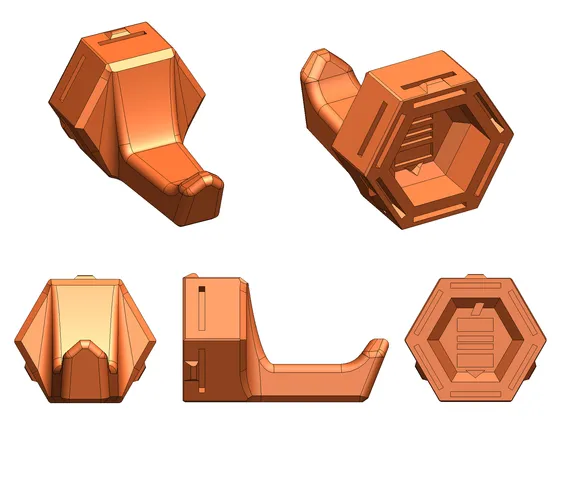

Print orientation:

Recommended orientation for printing as the image shows.

Print Settings:

• Material: PLA/PETG
• Layer heigth: 0.2
• Perimeters: 4
• Infill density: 25%

Hook Types:

Taper Hooks: Compact nice looking and strong hook.

Hex Hooks: small and not so strong but ideal for those little things to hang on the wall and HEXAGONAL!

With 7, 10, 15 and 15 mm length.

13/09/2023 UPDATE: New Hook type' models, with super tight fit and stop walls, thanks for the suggestions and feedback.

14/09/2023 UPDATE: New Hook type' models, without taps for easier fit! Thanks for the suggestions and feedback.

If you like this design, you can go through my profile and see the others.

This project can also be complemented with my other design of Ikea LACK HSW

Ikea LACK HSW (Honeycomb Storage Wall) by Horacio | Download free STL model | Printables.com

Happy Printing!!!
