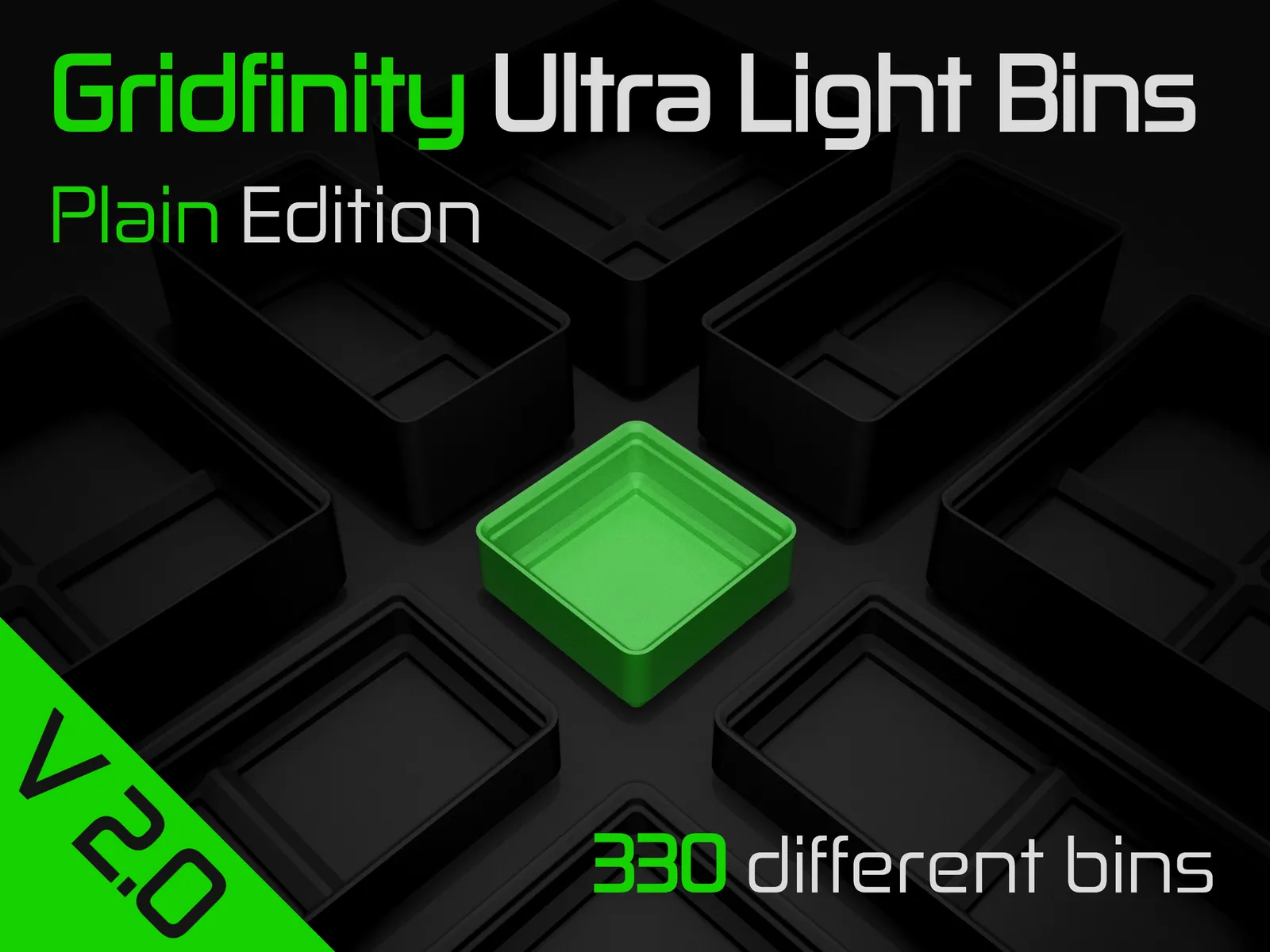

Gridfinity Ultra Light Bin Generator Online

Check out the Gridfinity Ultra-Light Bin System. With so much to print in the Gridfinity universe, this system helps you save time, filament and money, allowing you to print even more Gridfinity stuff...

It all started with the Gridfinity Lite Bins from Jake. But I thought maybe they could be even lighter without losing stability. So, I redesigned them from the ground up and achieved an ultra-light version of it that is not a flimsy as a vase mode bin.

To put it in perspective for a 3x4x6 bin:

• Slicer: OrcaSlicer
• Printer: BambuLab P1S
• Layer Height: 0.20 mm
• Wall Loops: 2
• Top/Bottom Shell layers: 3
• Sparse Infill Density: 10%

Version

Filament Usage

Print Time

Original Bin

98.06 g

2 h 37 min

Lite Version

83.01 g

2 h 10 m

Ultra Light Version

61.96 g

1 h 31 min

In comparison to the original, this version saves approximately 37% of filament and about 42% of print time. Compared to the lite version, it saves about 25% of filament and around 30% of print time – savings that can be reinvested in more Gridfinity stuff. ;)

If you encounter any issues when printing the bins or need a size that is not available, please feel free to let me know. I will either fix the error or upload the missing parts.

Happy printing :)

Other Editions

Plain Label Edition

Plain bins with labels

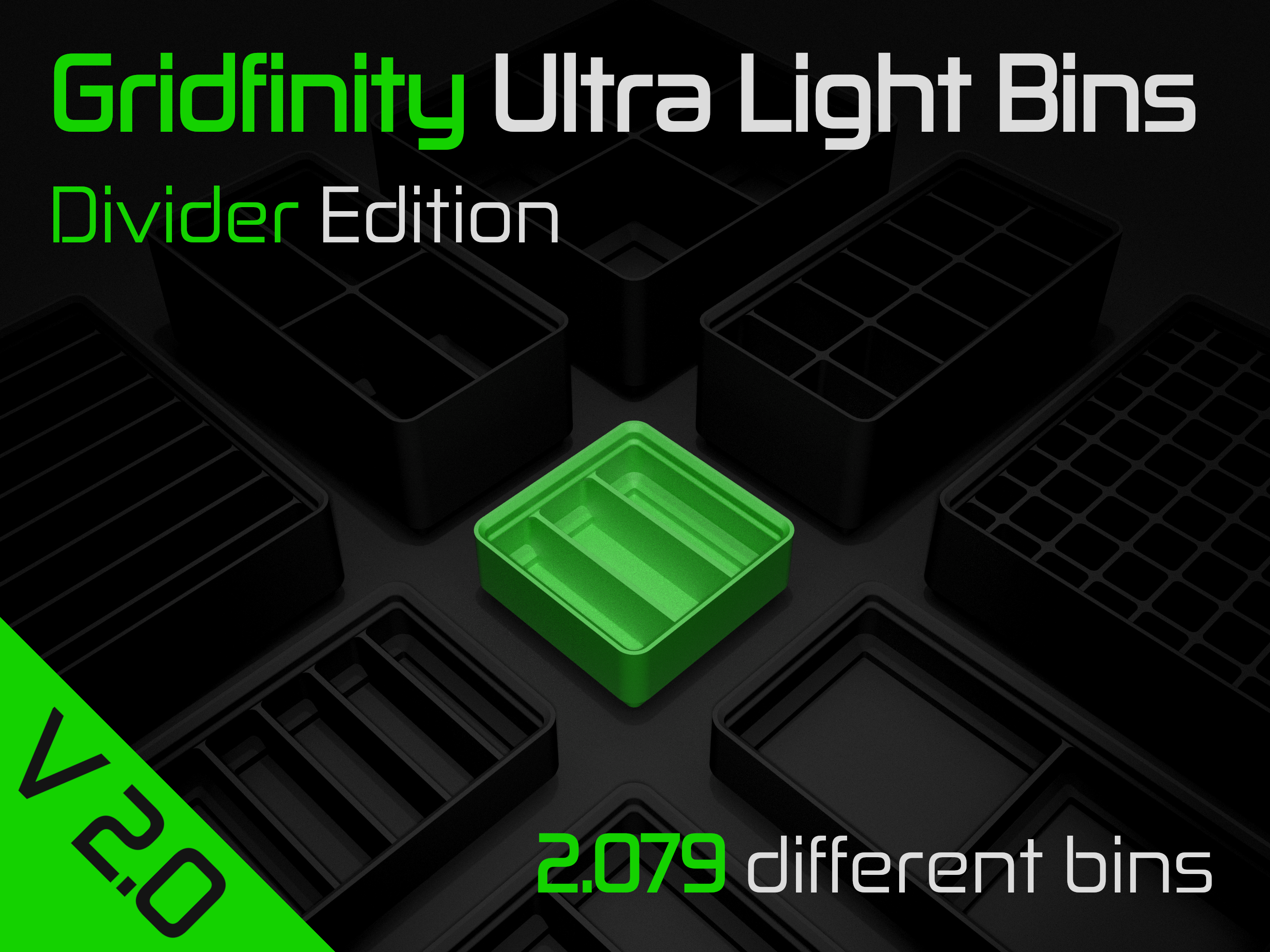

Divider Edition

Same lightweight boxes, but with dividers

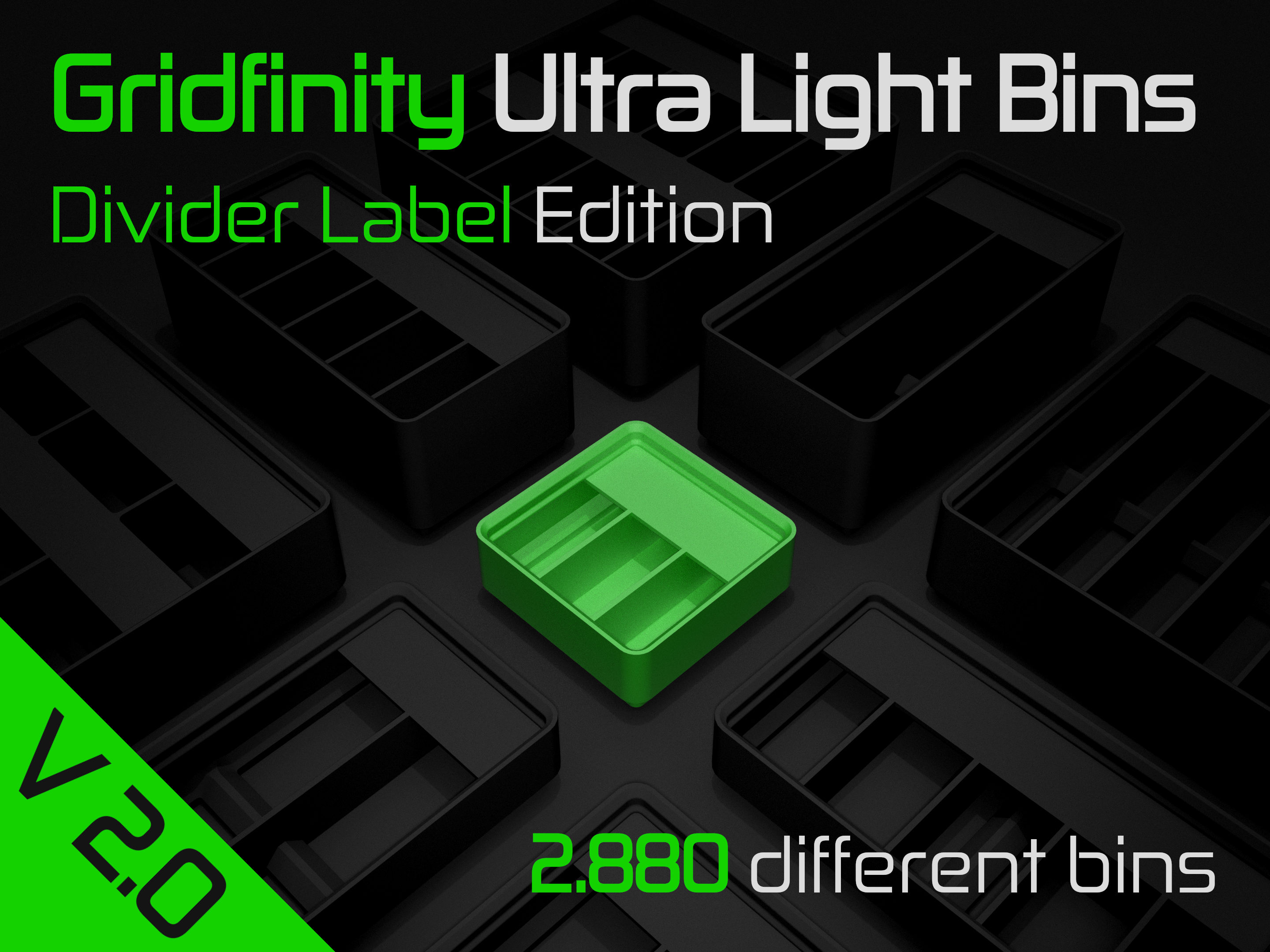

Divider Label Edition

Divider bins with label

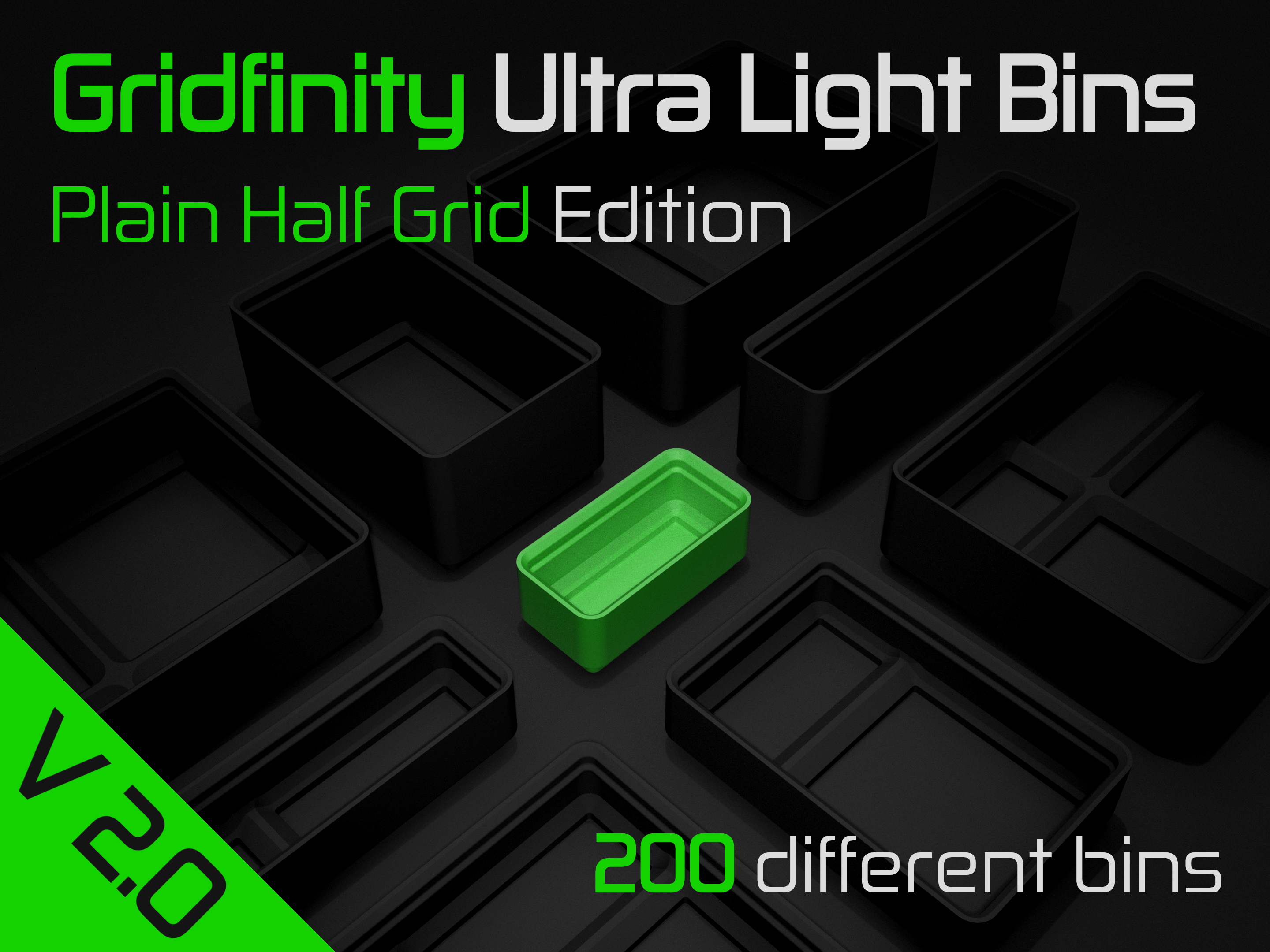

Plain Half Grid Edition

Ultra light half grid version

Plain Label Half Grid Edition

Ultra light half grid version with labels

Gridfinity Ultra Light Bin Generator

A OpenSCAD file to create your own Gridfinity Ultra Light Bin

How to find your bin

The first two numbers indicate the grids in the X and Y directions. One grid is 42 x 42 mm. So, for example, a 2x3x_ box would be 84 mm in the X direction and 126 mm in the Y direction.

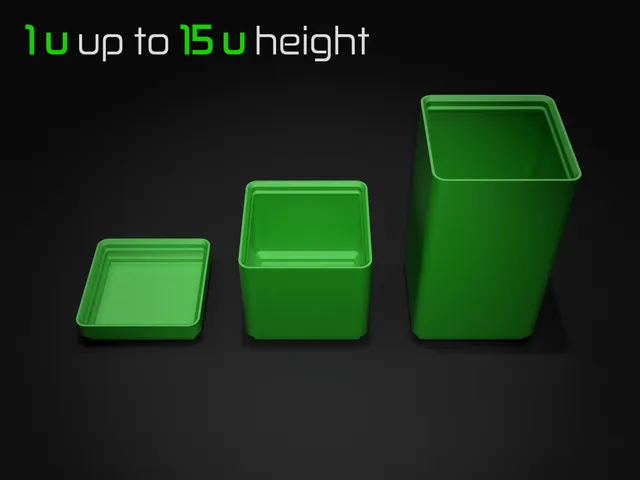

The third number indicates the height of a box. One height unit is 7 mm. On top of that height comes a lip with approximately 4.4 mm of height to stack the next box onto it. So, for example, a _x_x3 would be around about 25.4 mm high. If you want to know more, there is a very good website, where all the specifications are explained.

Changelog

Date

Version

Type

Comment

2024-02-08

V2.0

Minor Changes

A few changes to the models

2024-02-07

V1.0

Update

New pictures

2023-11-19

V1.0

Description update

Added section ‘How to find your bin’

2023-11-10

V1.0

New models

Added 1u, 5u, 7u, 9u and 11u height models and put edition name to file names

2023-11-09

V1.0

Description update

Added changelog table

2023-10-31

V1.0

New models

Added 15u height models

2023-10-27

V1.0

Release
