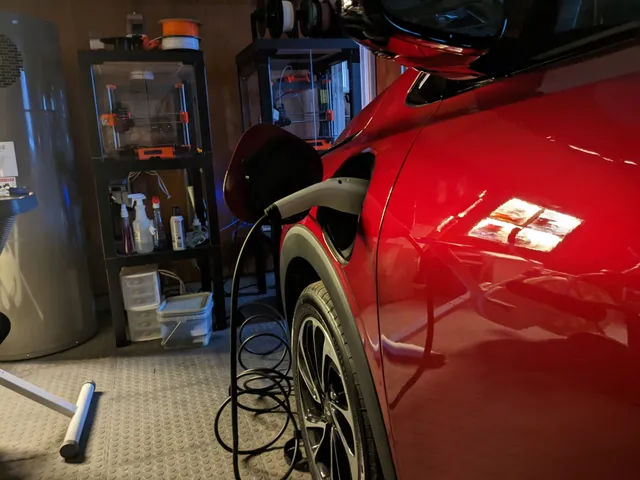

Tired of your charging cables laying all over the place, tripping over them at night?  Why are you in the garage in the dark, at night??

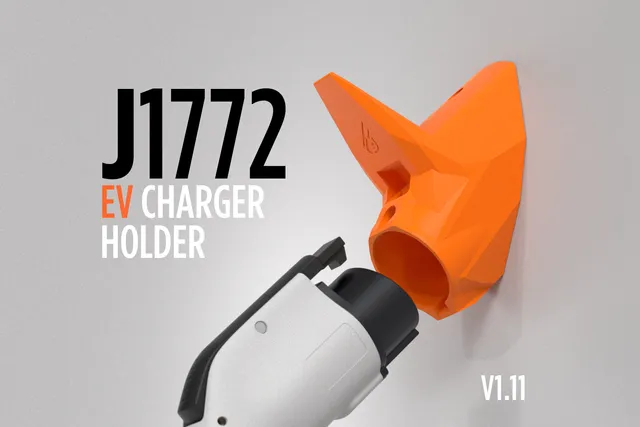

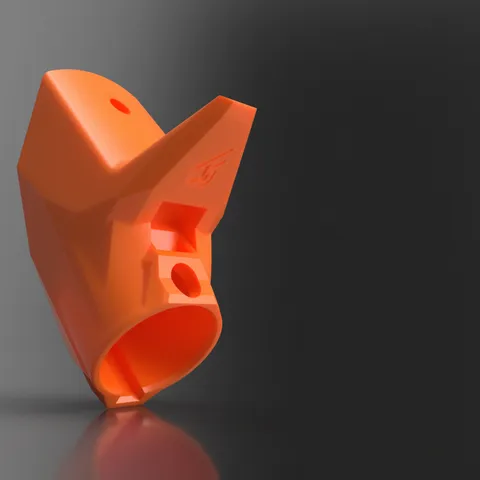

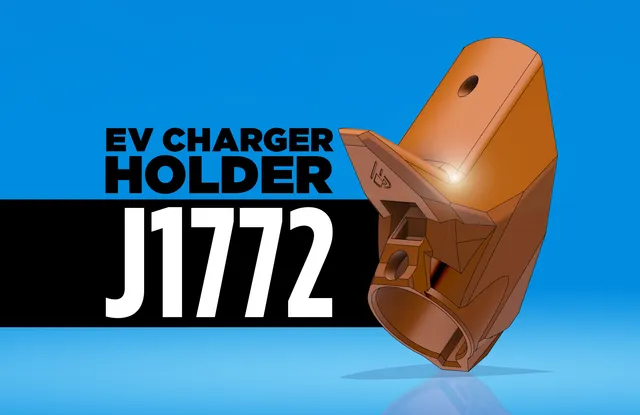

The ⚡EV Charger Holder J1772⚡ is designed to hold an at home Level 2 EV charging plugs and cables nicely on the wall.

*NOTE: I have tested this with my General Motors Level 2 J1772 charger. Some designs may vary, so please let me know if you have any questions or have suggested adjustments.

FEATURES:

• Compact Design
• 2 screws stacked vertically for stud mounting
• Also holds the cable
• Also makes a great coat hanger

UPDATES

11/21/2023
• Increased opening Diameter by 1mm for better clearance across variable sizes of J1772 chargers. (Thank you for the feedback everyone)
• Increased height of cable holding tab slightly

HARDWARE

• Screws: x2 wood self tapping countersunk screws
• Screw Driver / Power Drill
• Stud Finder

INSTALLATION

• I recommend installing the holder onto a wall stud if possible, otherwise use wall anchors to a solid hold.

• Hold the holder and screw the screw lol. Start with the top screw, adjust the hangers angle if needed, and install the lower screw.

PRINT SETTINGS
Filament: PETG
Nozzle Size: 0.4mm (3 perimeters), 0.6mm (2 perimeters)
Print Height: 0.2-0.35mm
Infill: 10-20%
