Update 13 Apr 2024:

• Updated nearly all models:
  • Frames and back covers now support battery size of 103665 (similar to MakerFocus 3000mAh lipo pack)
  • Multiple thickness options for back covers

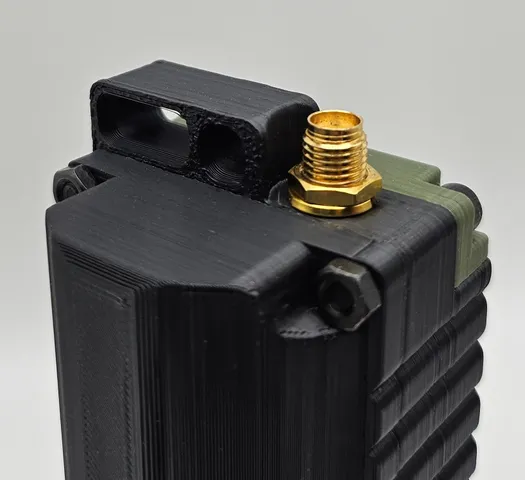

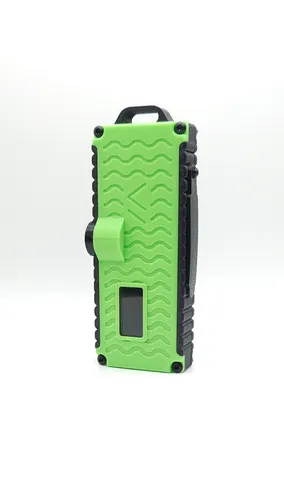

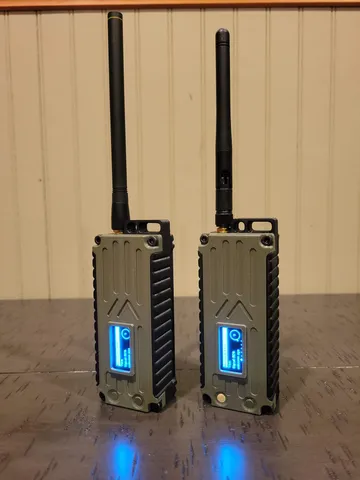

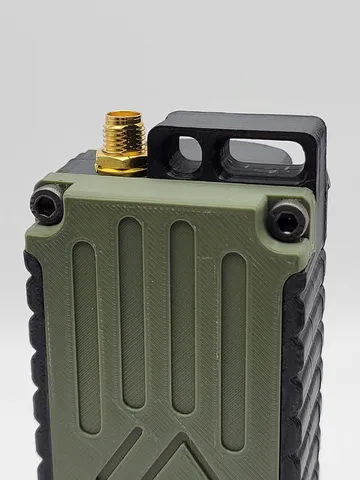

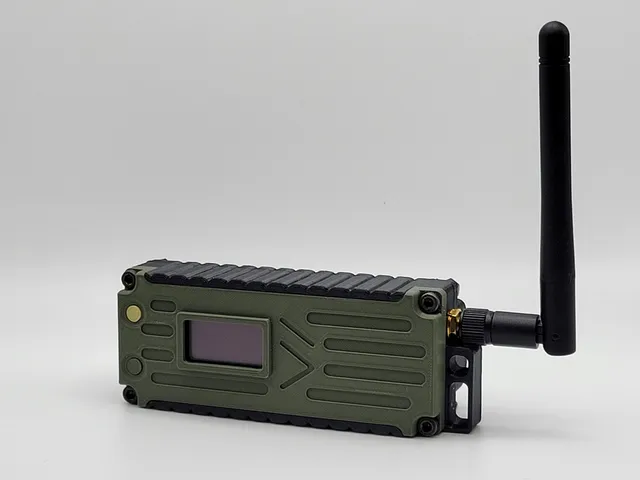

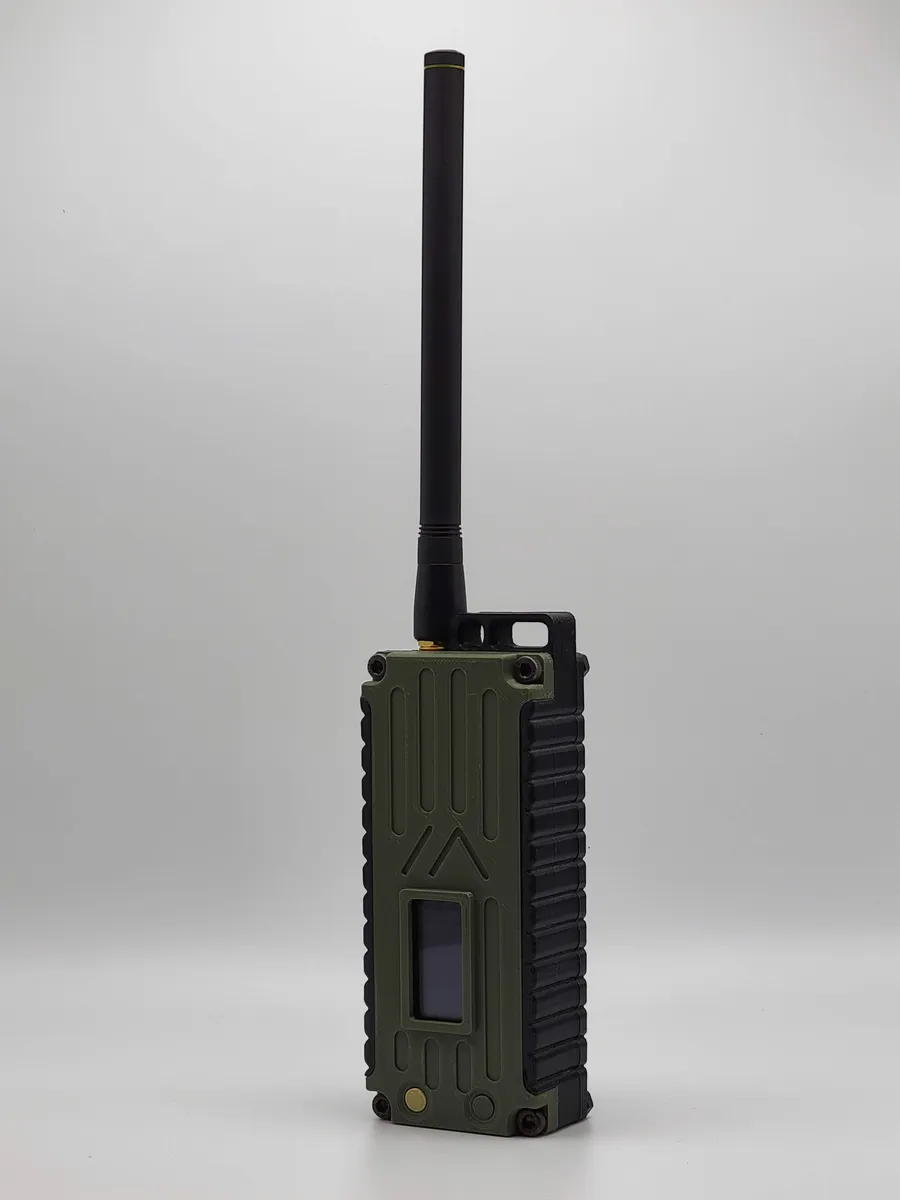

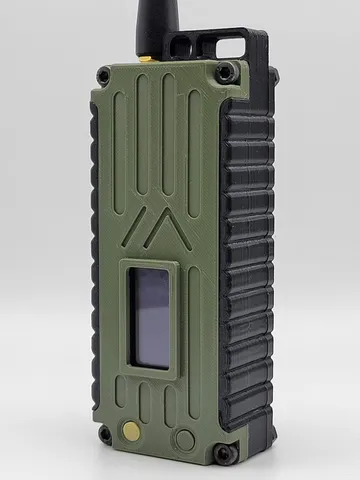

This is a case for the Heltec v3 boards, designed with the Meshtastic project in mind (https://meshtastic.org).

There are five models required for a complete case, as well as socket head cap screws and a SMA antenna pigtail cable; refer to the parts list below.

Required hardware:

1. Four (4) M3x20mm socket head cap screws
2. Four (4) M3 nuts
3. Battery: 18650 cell (protected cells are highly recommended for safety!) or flat lithium polymer type.  Flat lithium ion battery compartment maximum dimensions: 70mm x 28mm x 16mm (LxWxH).

Optional hardware:

1. GoouuuTech GT-U7 GPS module (ublox NEO-6M chip) or similar size GPS module: https://www.amazon.com/Navigation-Positioning-Sensitivity-Consumption-High-Precision/dp/B08MZ2CBP7 (also available via Ali Express)
2. 3-pin on/off two-position panel mount slide switches for GPS and/or power: https://www.amazon.com/gp/product/B06XFXWLJP
3. Laser-cut acrylic window (see note below)

Minimum required model files:

1. Heltec-v3_front-
   +OR+ Heltec-v3_front-noscreen-
2. Heltec-v3_back-
   +OR+ Heltec_v3_back-18650-
3. Heltec-v3_frame-noswitch/GPSswitch/powerSwitch/powerSwitch-GPSswitch
4. Heltec-v3_button- (requires two; medium size recommended)

There are multiple versions of the Heltec-v3_front-xxx model, including noscreen versions (no need to remove the screen, it's just covered up).
