With all that said, now on to the models…


Update 13 Apr 2024:

• Updated nearly all models:
  • Frames and back covers now support battery size of 103665 (similar to MakerFocus 3000mAh lipo pack)
  • Multiple thickness options for back covers

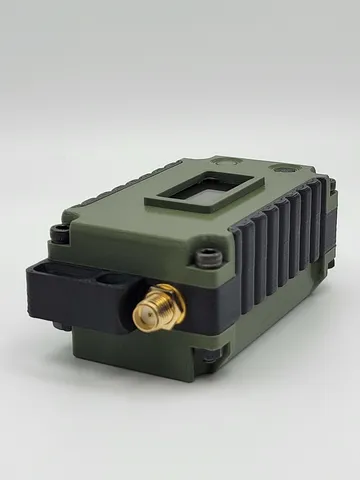

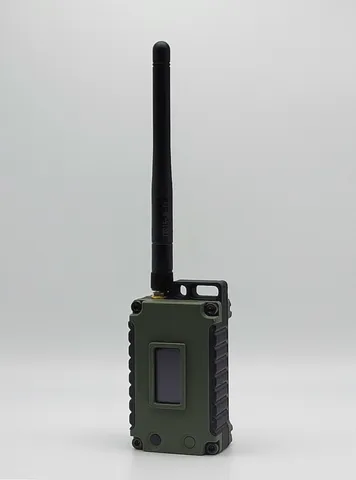

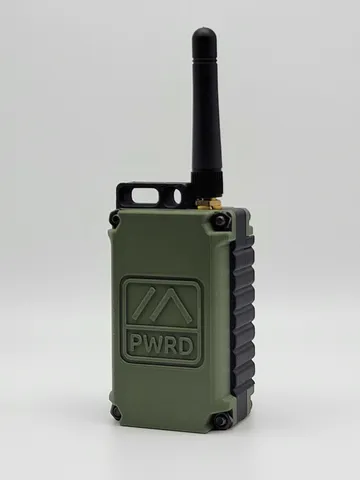

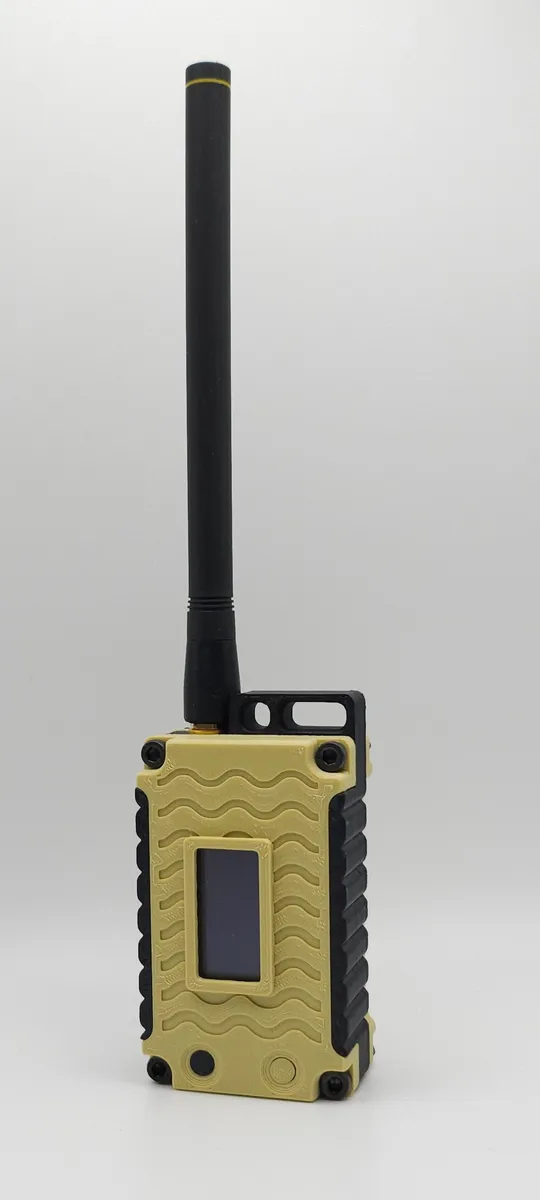

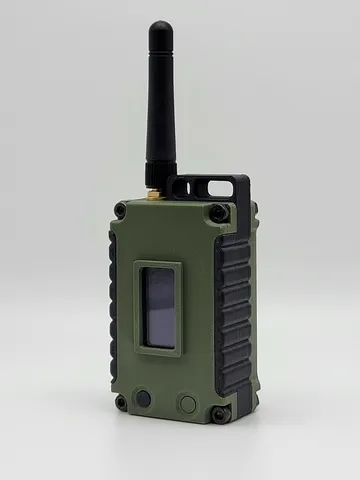

This is a small/"mini" case for the Heltec v3 boards, designed with the Meshtastic project in mind (https://meshtastic.org).

There are five models required for a complete case, as well as socket head cap screws and a SMA antenna pigtail cable; refer to the parts list below.

Required hardware:

1. Four (4) M3x20mm socket head cap screws
2. Four (4) M3 nuts
3. Battery: https://www.amazon.com/MakerFocus-Rechargable-Protection-Insulated-Development/dp/B0867KDMY7 or similar size 1000-1100mAh battery (47mm x 30mm x 8mm / 1.41" x 0.84" x 0.23" (LxWxH)

Optional hardware:

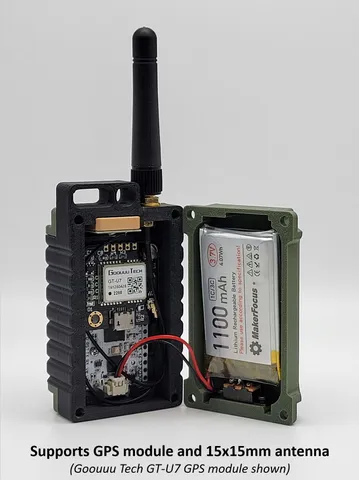

1. GoouuuTech GT-U7 GPS module (ublox NEO-6M chip) or similar size GPS module: https://www.amazon.com/Navigation-Positioning-Sensitivity-Consumption-High-Precision/dp/B08MZ2CBP7 (also available via Ali Express)
2. 3-pin on/off two-position panel mount slide switches for GPS and/or power: https://www.amazon.com/gp/product/B06XFXWLJP
3. Laser-cut acrylic window (see note below)

Minimum required model files:

1. Heltec-v3-mini_front-
   +OR+ Heltec-v3-mini_front-noscreen-
2. Heltec-v3-mini_back-
   +OR+ Heltec-v3-mini_back-18650-
3. Heltec-v3-mini_frame-noSwitch/GPSswitch/powerSwitch/powerSwitch-GPSswitch
4. Heltec-v3-mini_button- (requires two; medium size recommended)

There are multiple versions of the Heltec-v3-mini_front-xxx model, including noscreen versions (no need to remove the screen, it's just covered up).
