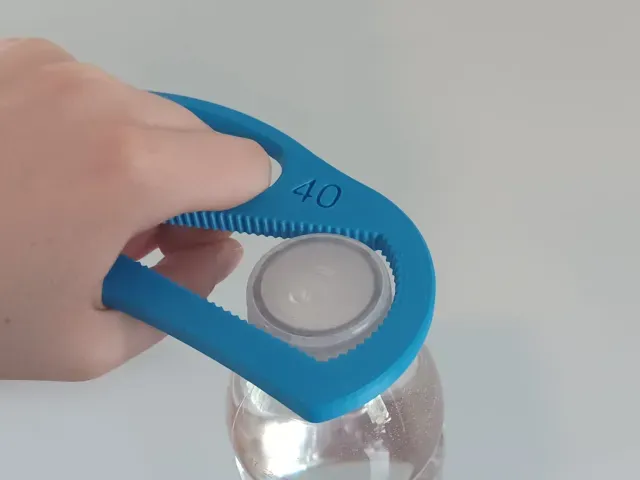

The bottle opener assists people with arthritis, limited finger dexterity or other disabilities to open standard water bottle caps (⌀ 30 mm or 1.18 in).

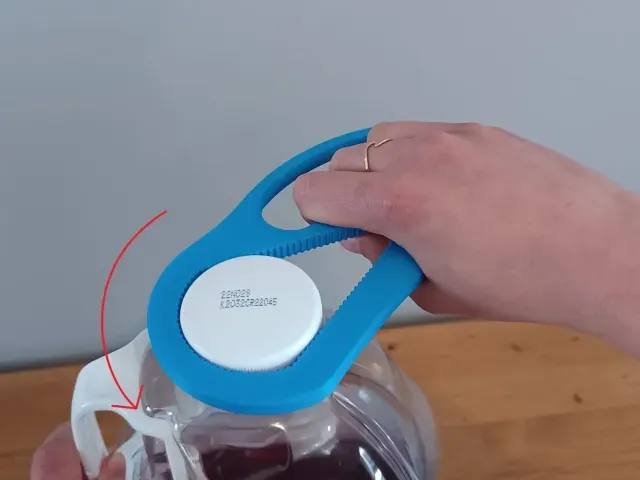

The device provides a large gripping surface and clamps onto the caps of standard water bottles with a small squeeze, allowing users to remove or screw on water bottle caps. It also has a narrowed feature that can be used to help open the pull tab of a can.

Print Settings

Infill: 50%

Resolution: 0.2mm

Supports: No

Rafts: No

Sizing Guide

Bottle Opener Version

Compatible Diameter of Caps (mm)

Example Containers

Bottle Opener 30

28-30

• Pop bottles of all sizes (355 mL to 2 L)
• Bottled Water of all sizes (355 mL to 2 L)
• Milk Carton 2 L
• Juice Carton 2 L

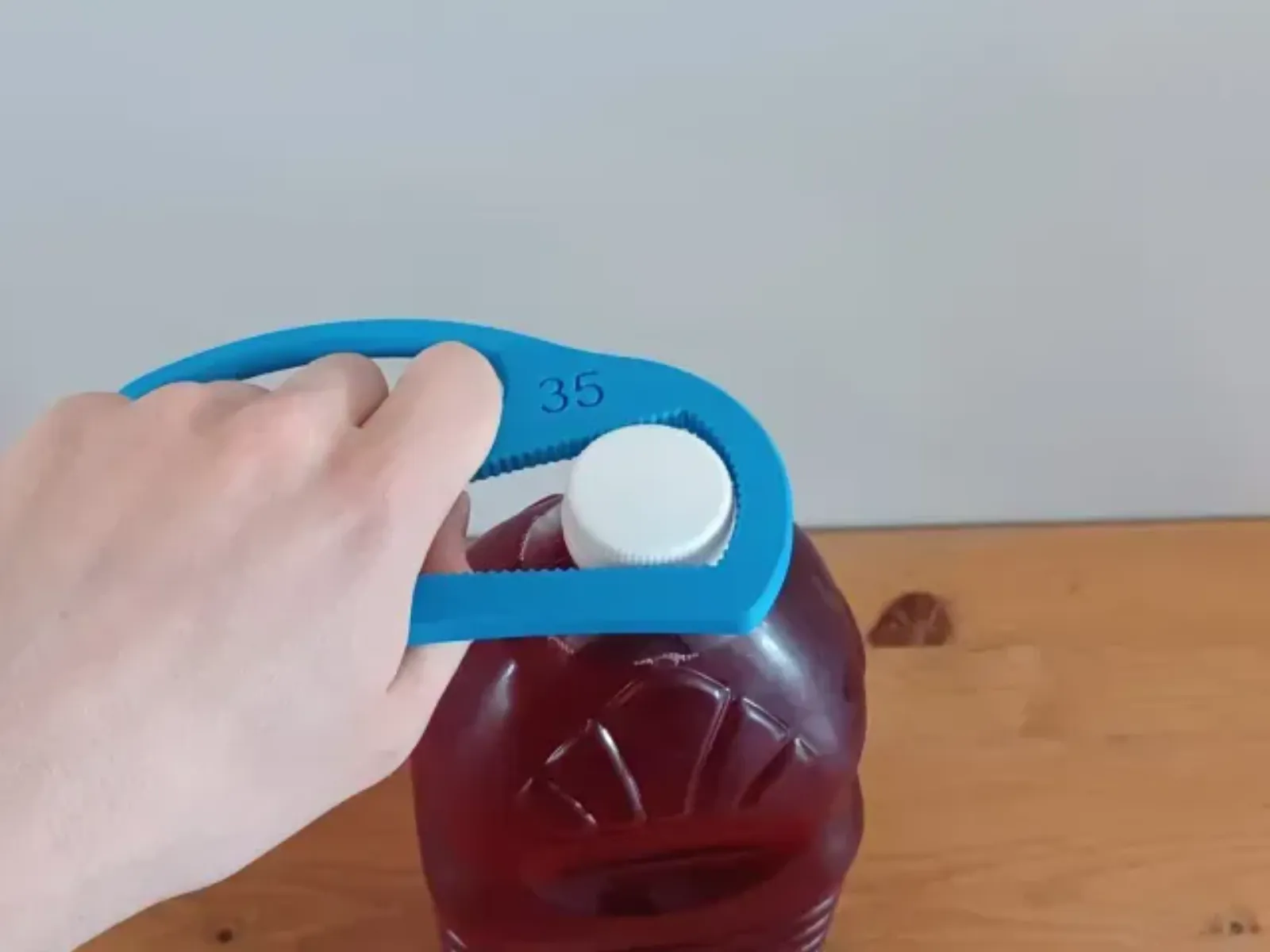

Bottle Opener 35

33-36

• Juice Jug (Some brands) 1.89 L
• Ketchup Bottle 1 L
• Juice Carton 900 mL

Bottle Opener 40

38-41

• Sports Drink 591 mL
• Sports Drink 950 mL
• Juice Bottle 473 mL
• Iced Tea Bottle 473 mL
• Milk Bottle 473 mL
• Milk Jug 2 L
• Milk Jug 4 L
• Kefir Bottle 1 L

Bottle Opener 45

43-46

• Juice Jug 1.46 L
• Juice Jug (Some Brands) 1.89 L
• Juice Jug 945 mL

Bottle Opener 50

48-51

• 3 L Juice Jug

Additional Documentation

https://github.com/makersmakingchange/Bottle-Opener
