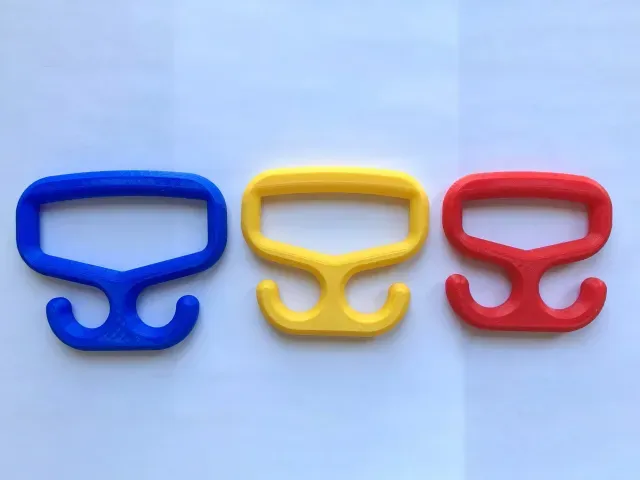

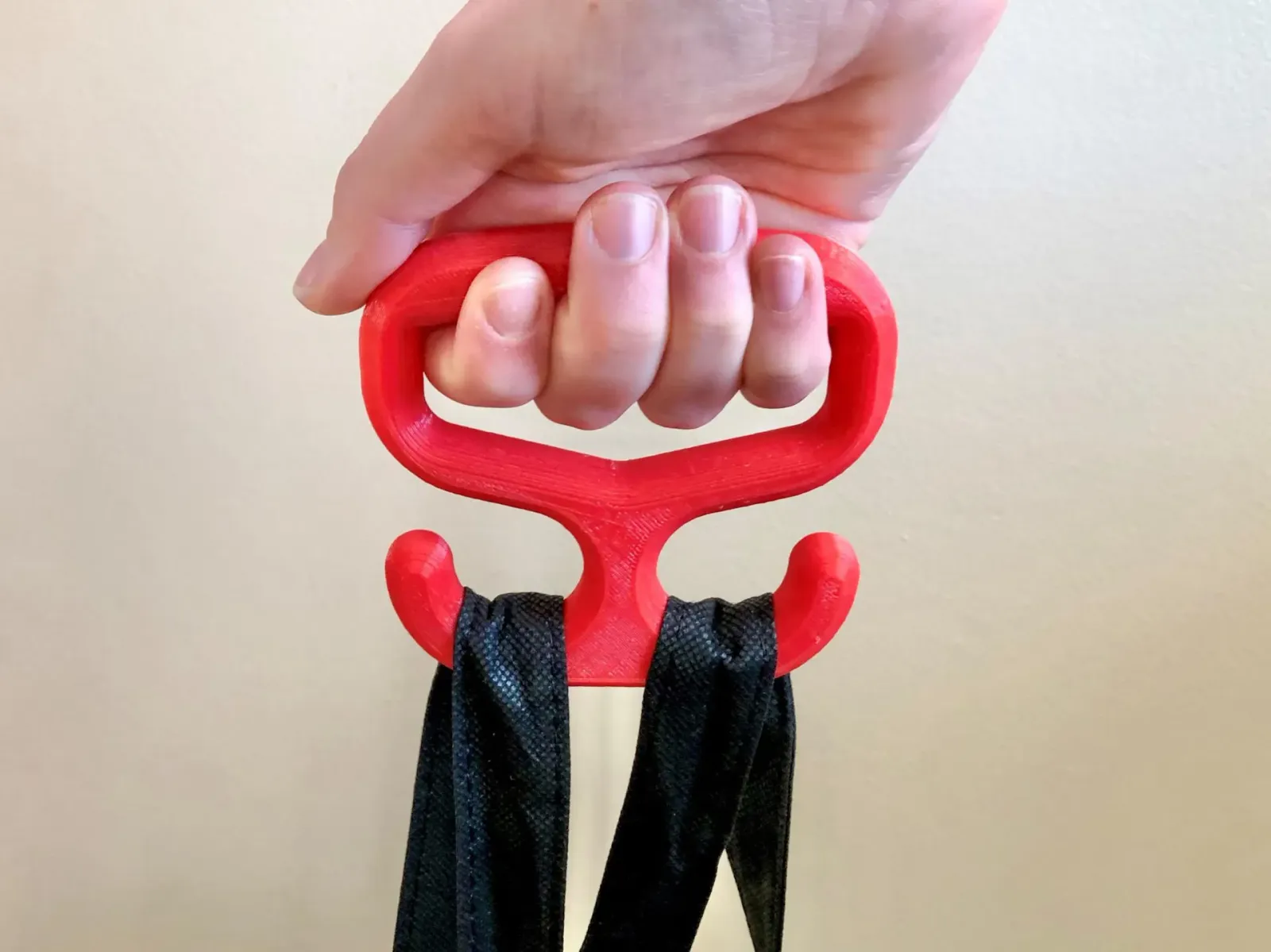

The bag carrier is a low-cost, 3D-printed handheld tool that distributes the weight of bags carried. This 3D Printed Assistive Device can assist people with arthritis or other disabilities to carry plastic bags and reusable bags. This bag carrier comes in 3 different sizes: small, medium, and large.

Print Settings

Infill: 20%

Resolution: 0.3mm

Supports: No

Rafts: No

Sizing Guide

There are small, medium, and large handles available for different sized hands. A downloadable sizing guide can be found in the User Guide located in Files.



Weight (g)

Dimension (mm)

X

Y

Z

Small

35

97

96

46

Medium

45

113

101

46

Large

41

127

106

46

Additional Documentation

https://github.com/makersmakingchange/Bag-Carrier
