Extra haak voor uittrekbaar traphekje van Momcozy1 / 5

Wat heb je nodig?

Naast de geprinte onderdelen:

  • 2×houtschroeven

Beschrijving van de maker

Origineel in het Engels

The Momcozy retractable baby gate came with extra latches so the gate can be moved, but I needed a couple more to allow us to hook it to extra spots depending how how we wanted to contain the child…

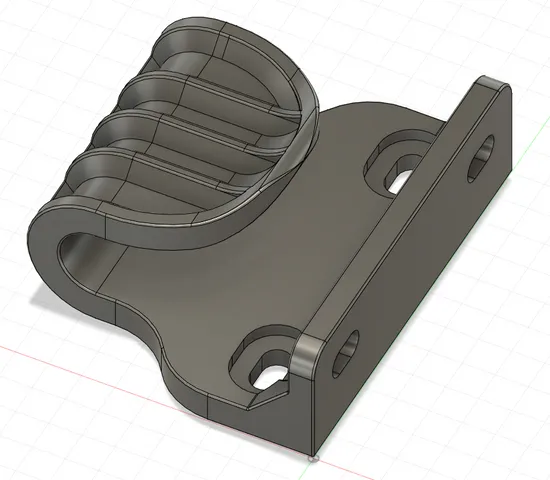

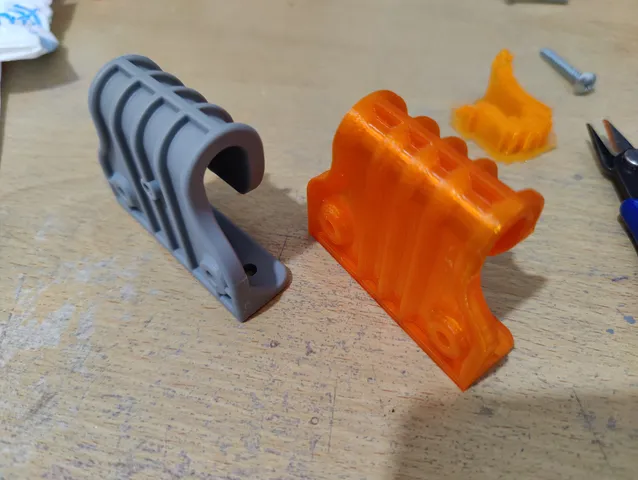

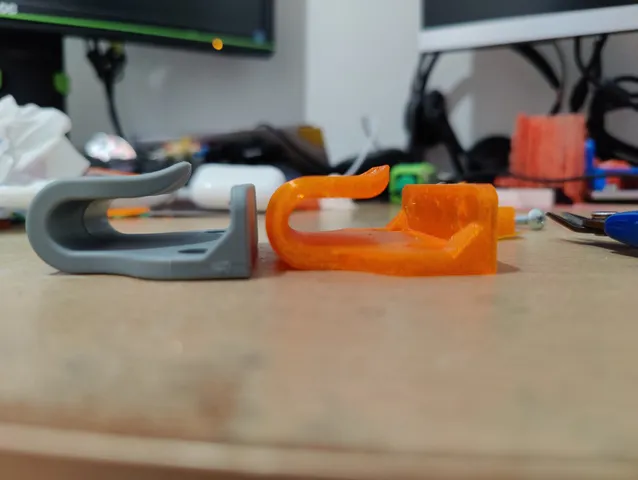

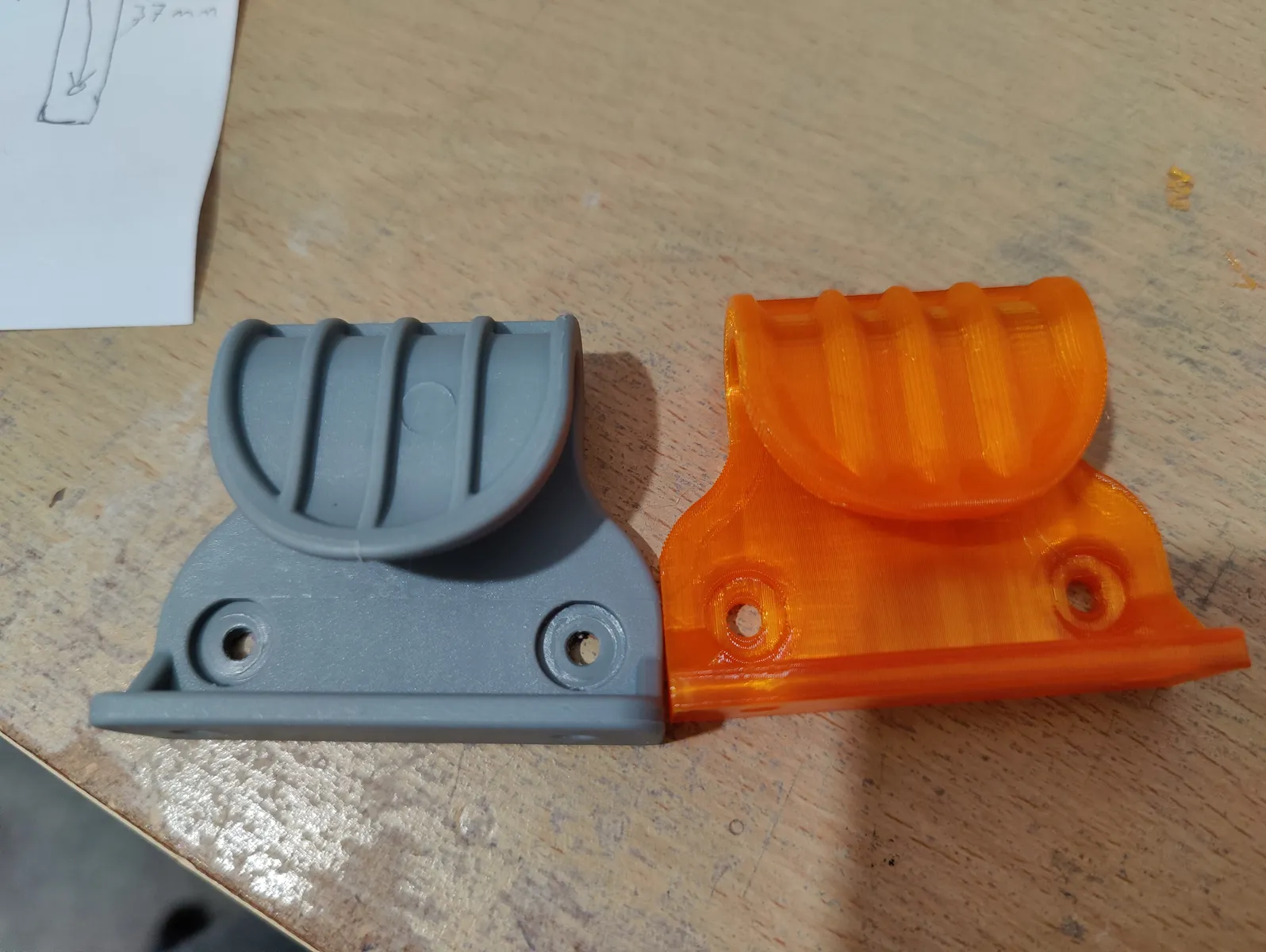

Elongated the screw holes compared to the original (shown in the render, but not on the photo of my first printed version), to compensate for error when drilling holes for the screws… (I managed to get 3 of the 4 original latches screw holes wrong!).

Printed with 4 perimeters and 15% infill and it seems as strong as the original.

I use 1 original for the top of the gate, and 1 printed for the bottom of the gate.

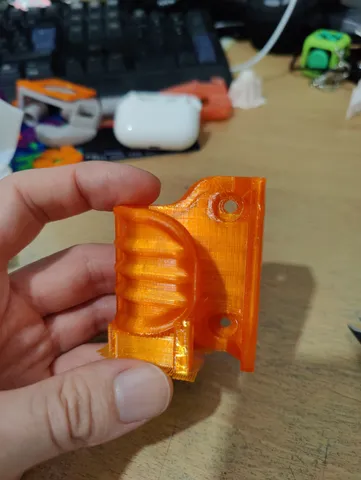

Printed stood up with supports only for the bottom edges (I painted supports on instead of auto, to avoid them supporting the ribs and screw holes) - you can see where on one of the photos.

Geprint door de community

Bij de bron al 4 keer geprint. Laat hier als eerste zien hoe het bij jou werd.
