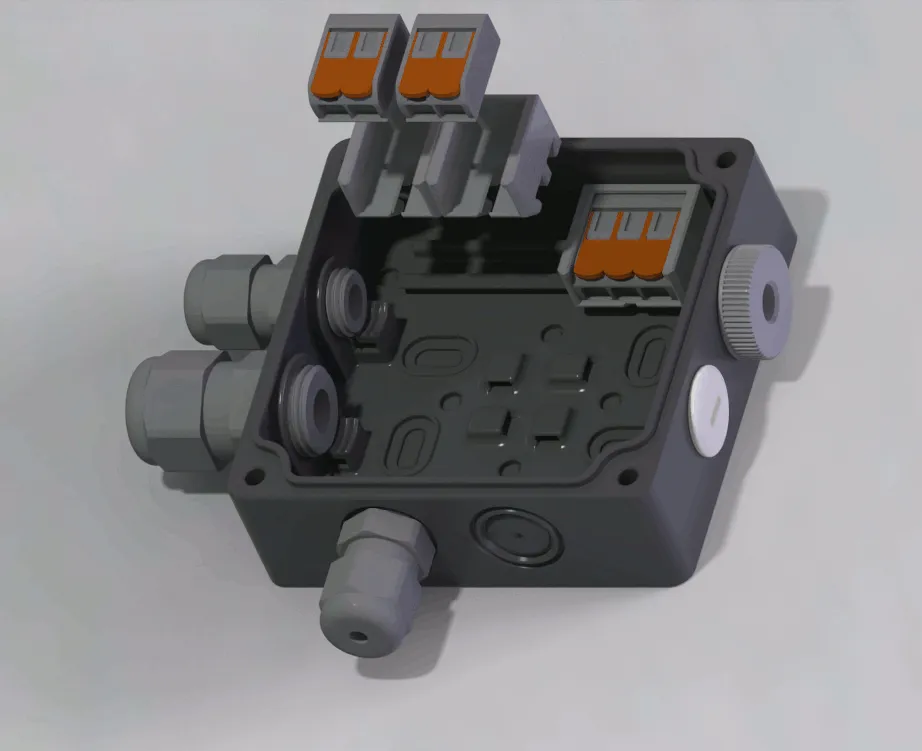

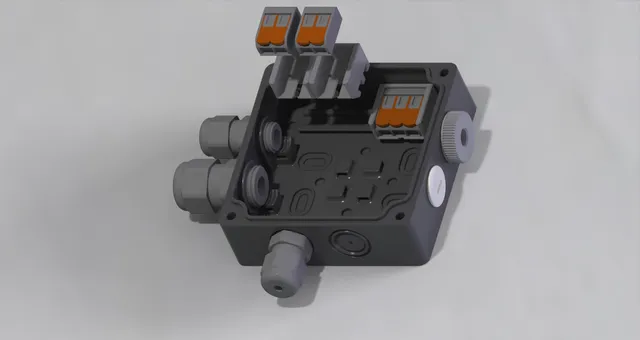

Print your own junction box and attach various WAGO terminals. Whichever you need for your application.

Secure your cables with zip ties or various cable glands. Use the threads for your cable glands or drill your own holes to secure the cable gland with nuts.

If you miss a variants please let me know! Anyway, if my time permits, I would like to provide further variants!

Update 29.02.2024: Clip-on lid added

Update 02.03.2024: Box 80x60 added

Update 11.03.2024: Box 120x120 added, nuts thickness from 5mm to 4mm, thread of the sleeves extended by 1.2mm

Update 21.03.2024: Higher lids added (15mm and 25mm for each box size), generic insert as stp-file, to create your own inserts.

Features:

Fix your cables with zip ties:

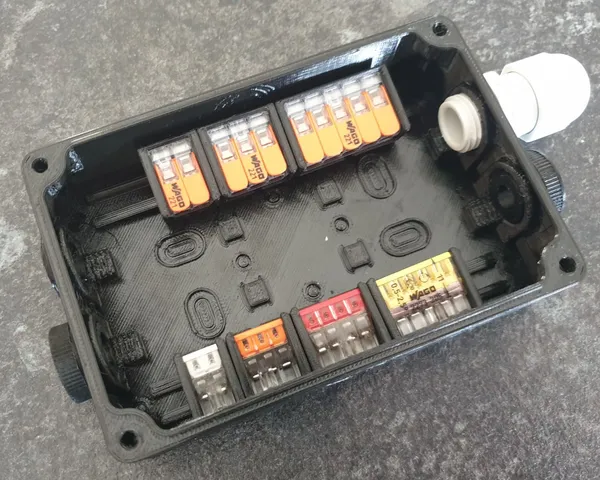

Clip different WAGO Inserts in a rail:

To mount the Wago inserts, they are clipped onto the rail. The Wago terminals can also be clipped in before or afterwards.

Add various cable glands and accessories:

Inserts:

• WAGO 2273-202
• WAGO 2273-203
• WAGO 2273-204
• WAGO 2273-205
• WAGO 221-412
• WAGO 221-413
• WAGO 221-415

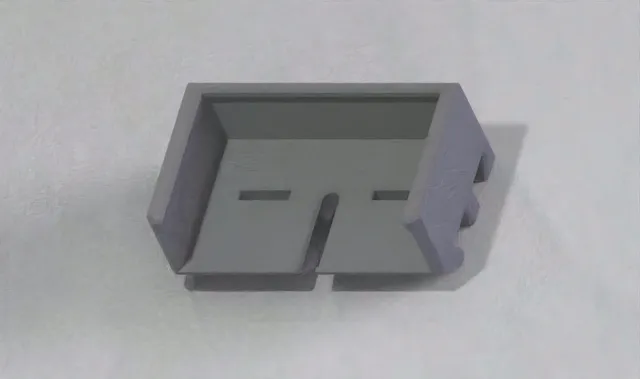

• generic insert

Choose your lid:

• Lid 80x60, with screws, height: 7mm, 15mm, 25mm
• Lid 80x80, with screws, height: 7mm, 15mm, 25mm
• Lid 120x80, with screws, height: 7mm, 15mm, 25mm
• Lid 120x120, with screws, height: 7mm, 15mm, 25mm
• Lid 80x60, clip on
• Lid 80x80, clip on
• Lid 120x80, clip on
• Lid 120x120, clip on

Example: Lid 80x60, with screws

Example: Lid 80x60, clip on

Box Variants 80x80:



Breakouts

M12 x 1.5

M16 x 1.5

M12x1.5 zip ties

M16x1.5 zip ties

Rail for inserts

Note

1











NO

only box

2

8x









NO



3



8x







NO



4





8x





NO



5







8x



NO



6









8x

NO



7



4x

4x





NO

different Positions

8







4x

4x

NO

9



4x

4x





NO

10







4x

4x

NO

11

4x

4x







YES



12

4x



4x





YES



13

4x





4x



YES



14

4x







4x

YES



15

4x





2x

2x

YES



Box Variants 120x80:



Breakouts

M12 x 1.5

M16 x 1.5

M12x1.5 zip ties

M16x1.5 zip ties

Rail for inserts

Note

1











NO

only box

2

10x









NO



3



10x







NO



4





10x





NO



5







10x



NO



6









10x

NO



7



4x

6x





NO

different Positions

8







4x

6x

NO

9



4x

6x





NO

10







4x

6x

NO

11

6x

4x







YES



12

6x



4x





YES



13

6x





4x



YES



14

6x







4x

YES



15

6x





2x

2x

YES



Box Variants 80x60:



Breakouts

M12 x 1.5

M16 x 1.5

M12x1.5 zip ties

M16x1.5 zip ties

Rail for inserts

Note

1











NO

only box



6x









NO



3



6x







NO



4





6x





NO



5







6x



NO



6









6x

NO



7



2x

4x





NO



8







2x

4x

NO



9



4x

2x





NO



10







4x

2x

NO



11

4x

2x







YES



12

4x



2x





YES



13

4x





2x



YES



14

4x







2x

YES



Box Variants 120x120:



Breakouts

M12 x 1.5

M16 x 1.5

M12x1.5 zip ties

M16x1.5 zip ties

Rail for inserts

Note

1











NO

only box

2

12x









NO



3



12x







NO



4





12x





NO



5







12x



NO



6









12x

NO



7



4x

8x





NO

different Positions

8







8x

4x

NO

9



4x

8x





NO

10







8x

4x

NO

11

6x

6x







YES



12

6x



6x





YES

2 rails

13

6x





6x



YES

2 rails

14

6x







6x

YES

2 rails

15

6x





2x

4x

YES

2 rails

16

8x







4x

YES

4 rails

17

8x





4x



YES

4 rails

Print Settings:

• See the different examples in download section, especially for orientation
• I used PETG, PLA will work too
• 0,2mm layer heigt
• 0,4mm nozzle
• 15% infill
• no supports needed

Screws:

• Use countersunk screws M4 to assemble the lid with screws

Miscellaneous:

• Electrical work may only be carried out by trained electricians.
• Does not represent a certified junction box according to VDE or similar standards.
• Use at your own risk.
