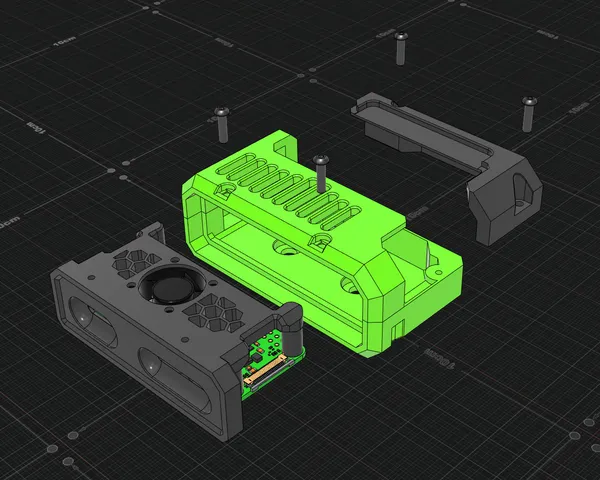

Modulaire behuizing voor Raspberry Pi Zero 2 W met profielmontage1 / 3

Wat heb je nodig?

Naast de geprinte onderdelen:

  • 1×Raspberry Pi Zero 2 W
  • 7×M2,5x10 zelftappende schroef (behuizing)
  • 4×M2,5x6-8 zelftappende schroef (Pi)
  • 2×M5x10-bout (profielmontage)

Beschrijving van de maker

Origineel in het Engels

U will need:

  • Case - M2.5x10 self tapping screws X7
  • Pi - M2.5x6-8 self tapping screws X4
  • Mounting to 3060 extrusion (30mm spacing) - M5x10 BHCS or SHCS X2

No supports are needed for this design.

Red faces can be removed for wire/ribbon access (see 3MF)

As with all my designs, I'm open to suggestions..
