I would suggest to use ASA for this print, but should work with PETG as well. Printing is easy and doesnt need any supports as the pin is printed seperately (if needed).

As this is a part which needs to handle forces, fiber enforced filament might also be a good idea!

Print Settings

Rafts:

No

Supports:

No

Resolution:

0,2-0,4

Infill:

40%

Filament: Extruder ASA/ABS/PETG

Notes:

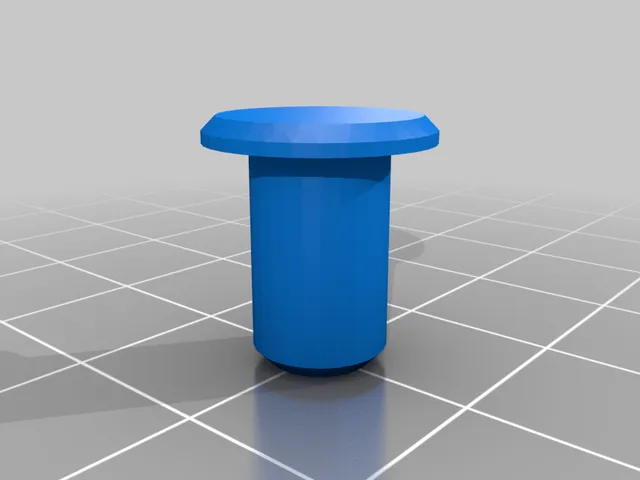

No supports needed, but for the bold a 3mm brim is a good idea as the touching surface is small

Post-Printing =============

Some windows seem to require that bolt, some others don't. If needed just use Acetone (ASA/ABS) or other glue to stick them together. If your printer isnt perfectly calibrated you might need to use a drill to widen up the holes. The bolt should be a tight fit, but should slide in without applying a lot of force.
