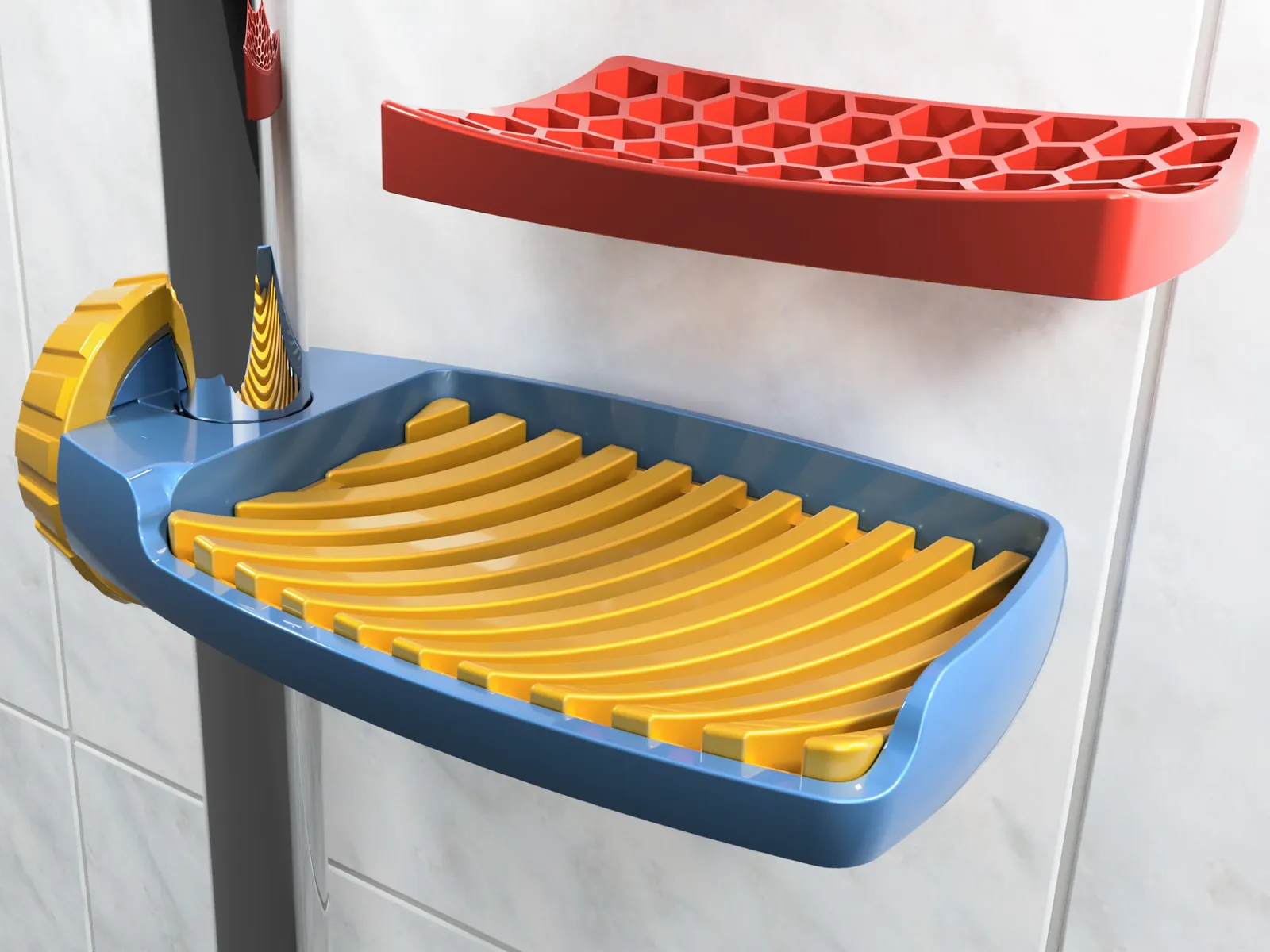

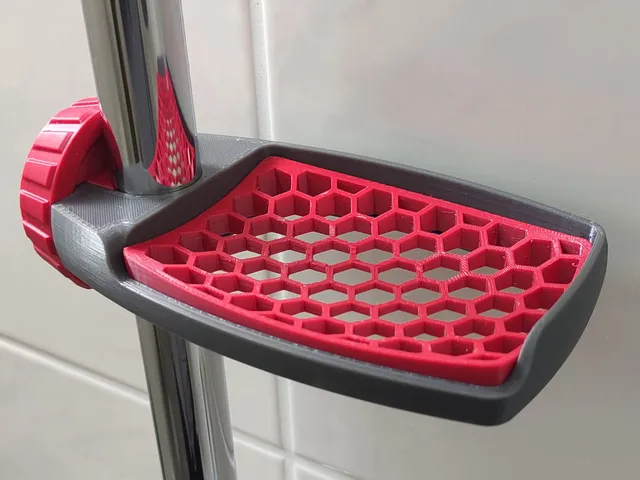

This beautiful and robust soap dish for your shower already comes with two fancy insets to choose from and even allows you to design your own individual inset.

You can download variants for shower rails with a diameter of 18, 20, 22 and 25 mm and there are even variants for the left and right side of the shower rail.

Design your custom Inset:

If you like to design your custom inset, download this templates which I made available under a free license. So you might even publish them for the benefit of other users. The templates include a STL and STEP variant so that you can edit them for example with Tincercad or any other 3D application.

There are already some additional fancy inserts. Here you will find the growing collection.

How to print:

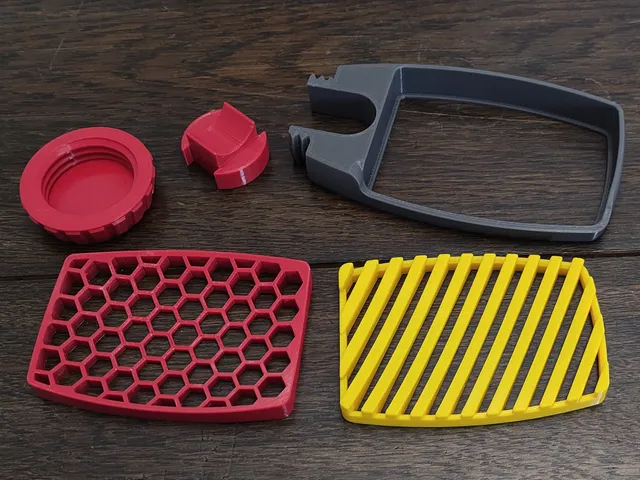

Choose one of the following parts based on the size of your shower rod:

• Bolt,
• Frame (left or right),
• Spacer.

Plus an inset, choose hex style or rib style.

Make sure the frame and the inset are in the same x-y-orientation when printing.

The inset has a rather tight fit. If it is too tight or too loose for your needs, you can correct this by scaling the inset in the slicer by 0.1 to 0.2% in the x-y direction.

How to assemble:

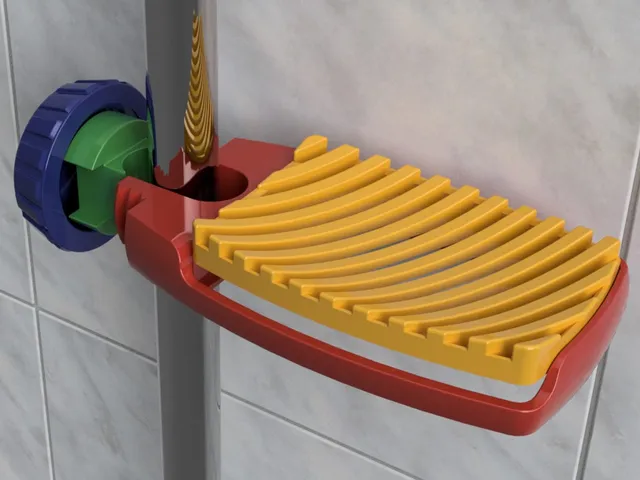

Please follow the scheme above (last picture).

Do you like it?

If you have printed this design and you like it, I would be happy if your make is uploaded.
