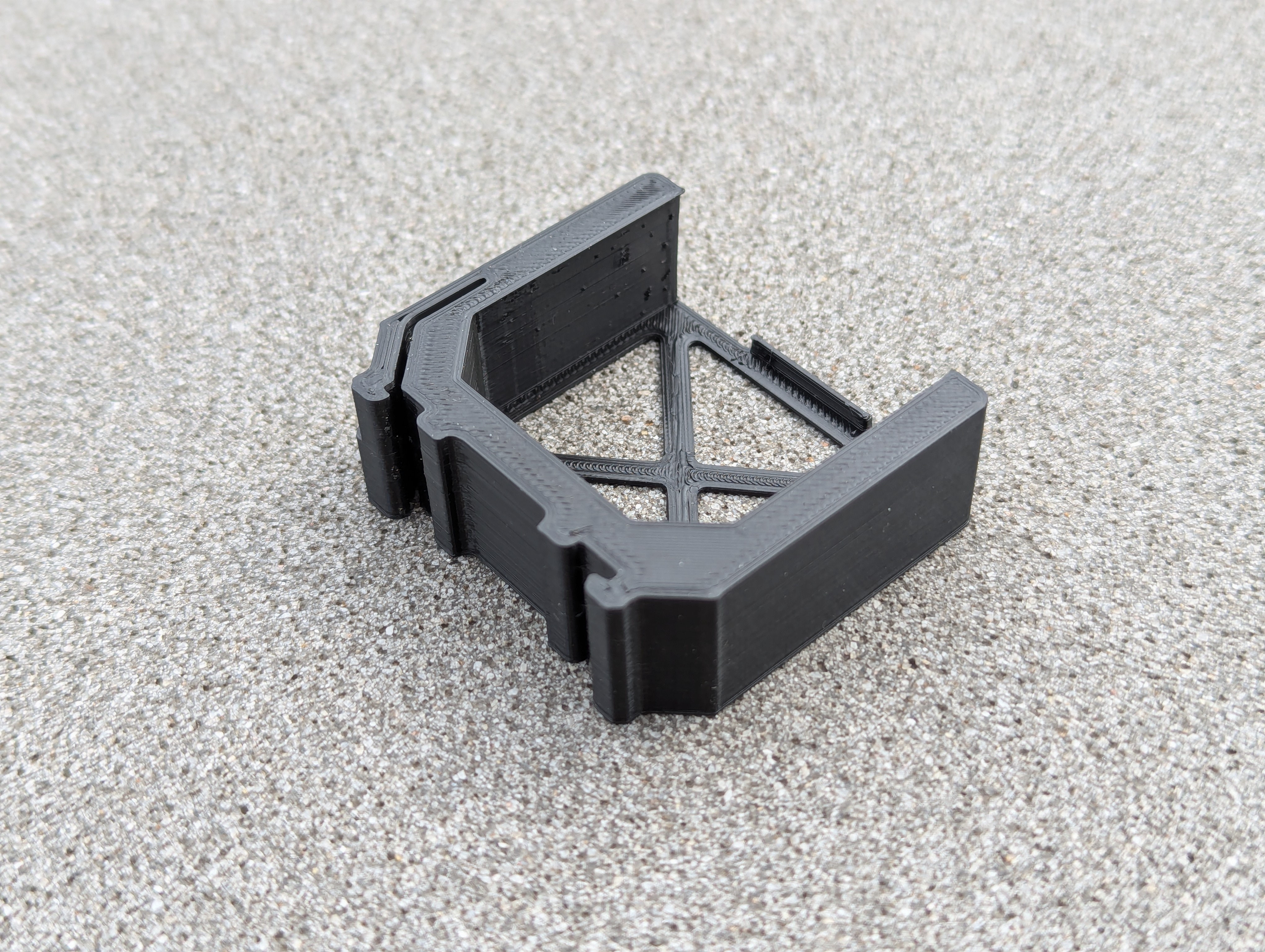

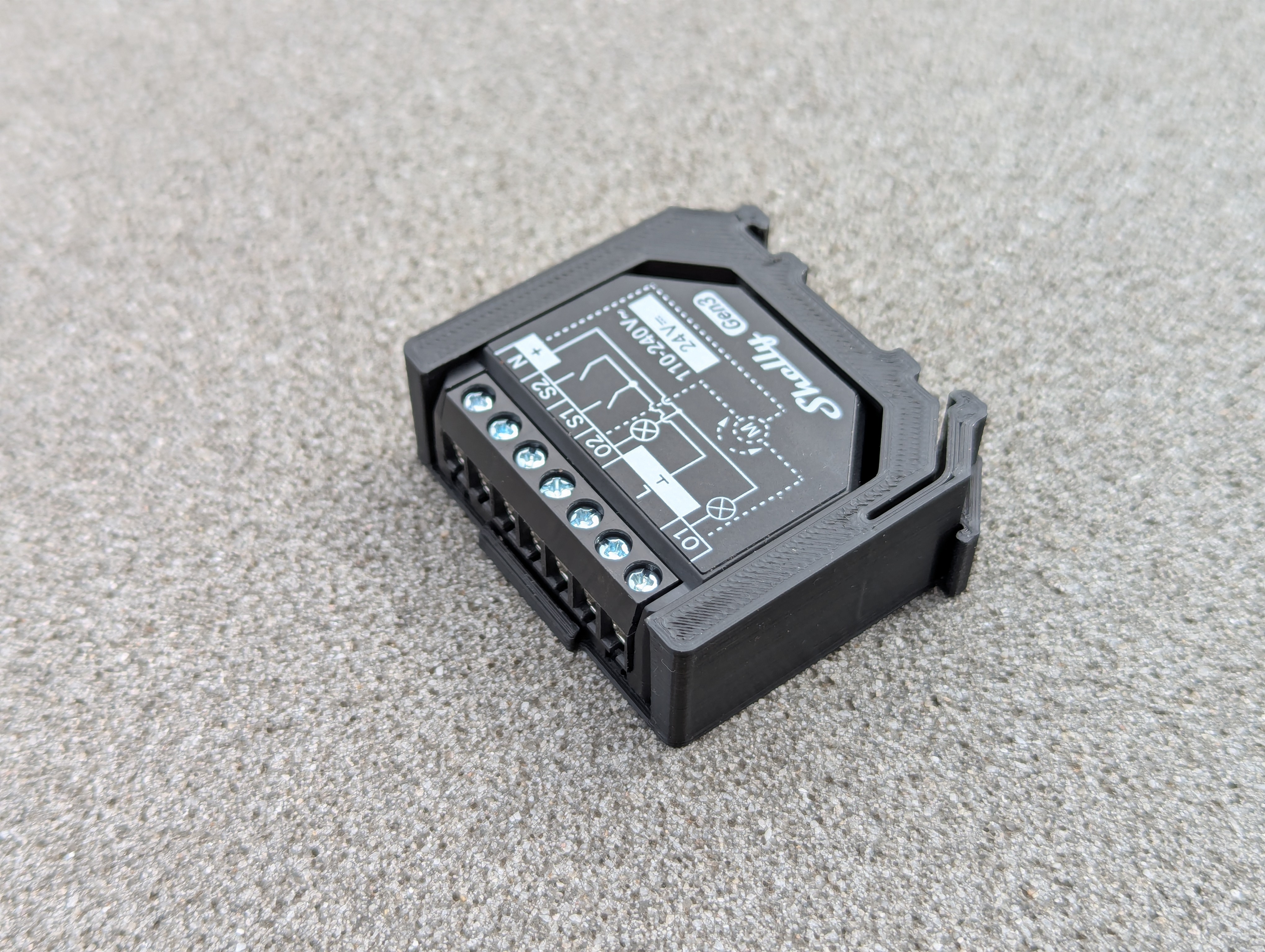

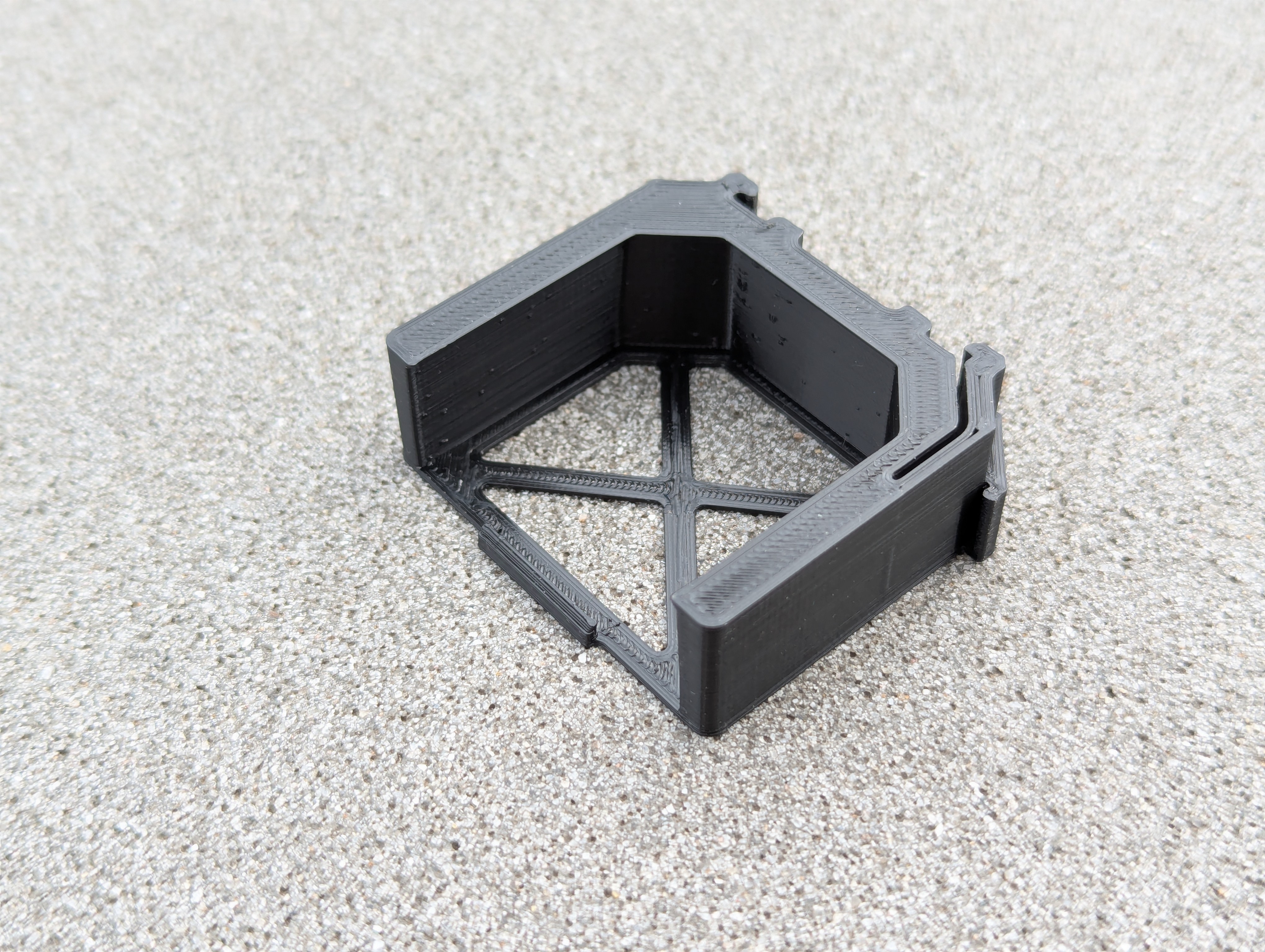

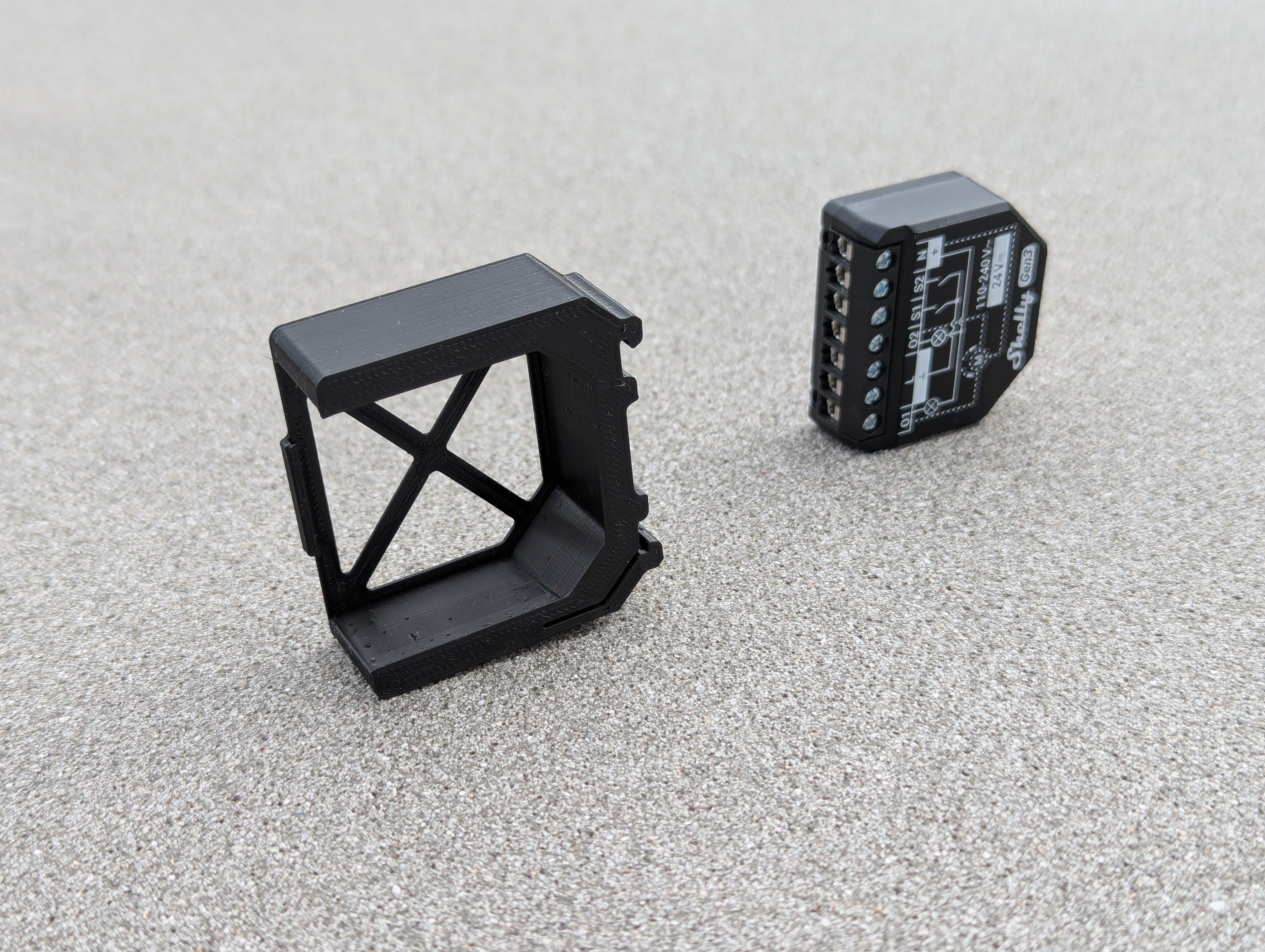

This compact 18mm (1 TE) mount is specifically designed for the Shelly 2PM Gen. 3, ensuring a good fit. It allows you to orient the Shelly's connections to face forward for easy access and wiring. The mount provides a secure grip on the DIN rail and features a locking mechanism to prevent accidental dislodging. While mounted, the reset button remains accessible on the Shelly itself, though you might need to remove the adapter from the DIN rail for easier access to the button in some setups. For mounting and dismounting from the DIN rail, a flathead screwdriver is recommended.

Print Settings

• Filament: PETG recommended, PLA possible (depends on your cabinet temperature)
• Supports: Not required
• Infill: Infill percentage does not matter

Updates

File: shelly-2pm-gen3-dinrail-v2-horizontal

After some time my PLA print lost some of its grip on the din rail, so I tried to improve it:

• little notch for better clamping
• improved snap-fit latch mechanism
