Split-flapdisplay met tien modules en wifi1 / 4

Wat heb je nodig?

Naast de geprinte onderdelen:

  • 1×ESP8266-bordje
  • 10×stappenmotor met driver
  • 10×sensor voor de nulstand (volgens handleiding)
  • set×printplaten volgens handleiding
  • 1×voeding
  • set×schroeven en bedrading

Beschrijving van de maker

Origineel in het Engels

This split-flap display sets itself apart by being almost completely 3D-printed. The flaps are printed by changing the color mid-print and mid-layer. The case is also completely 3D-printed.

Video of the display in action (with sound):

https://www.reddit.com/r/3Dprinting/comments/o4boxk/i_designed_my_own_splitflap_display/

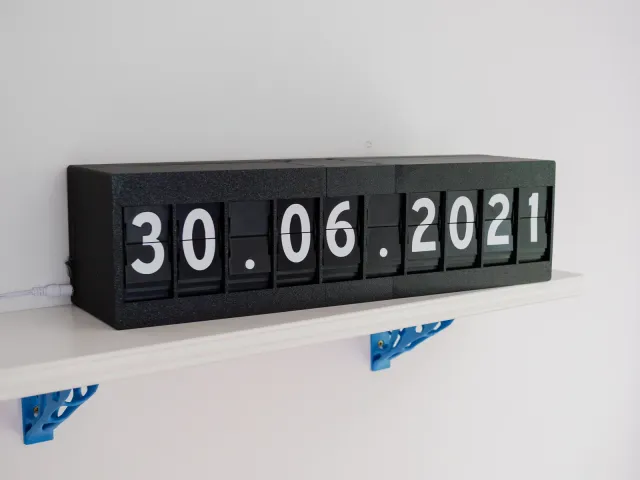

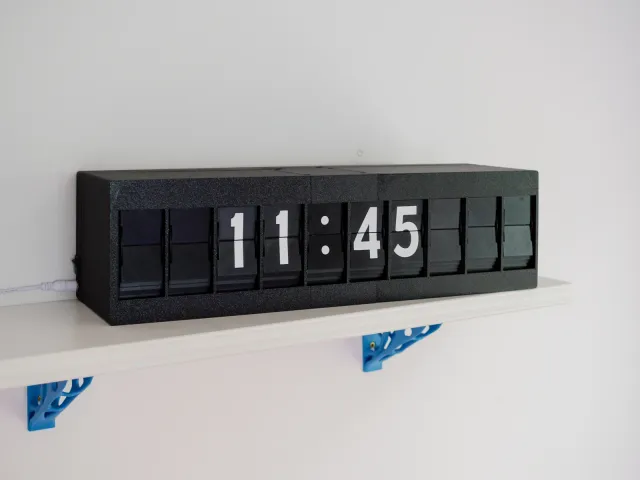

It can be used as a date display, clock or anything really. It is connected to the local network with an esp8266.

Josh Murrah made an in-depth video about his build:

General info about display:

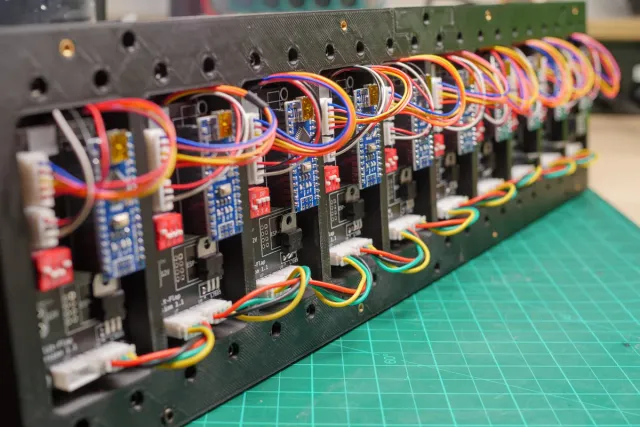

  • 10 units (pcb design allows up to 16)
  • 45 flaps per unit
  • Size: 513 mm x 136 mm x 138 mm

More info in the instruction manual (scroll all the way down to “other files” in the files tab right here on prusaprinters).

GitHub: https://github.com/davidkingsman/split-flap

Partially inspired by https://splitflap.home.blog/
