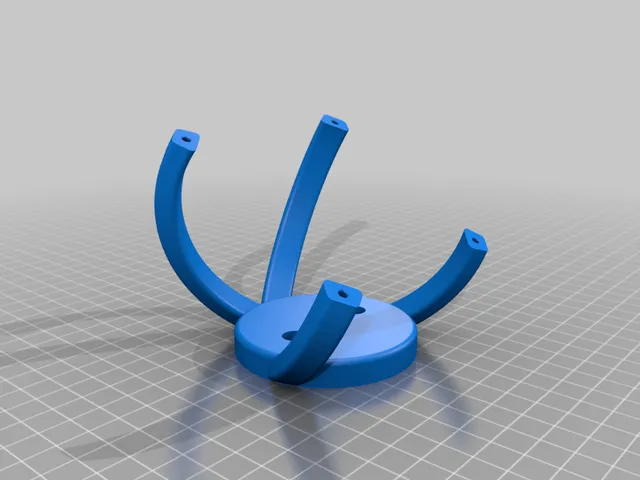

I wanted to hang one of my Echo Dots on the underside of a wall cupboard, so I needed a mount. Maybe someone else has a use for this, too.

You need 4 M3x10 screws for the ring and whatever screws you might want to use to screw the mount onto the ceiling/whatever else (max dia. 4mm).

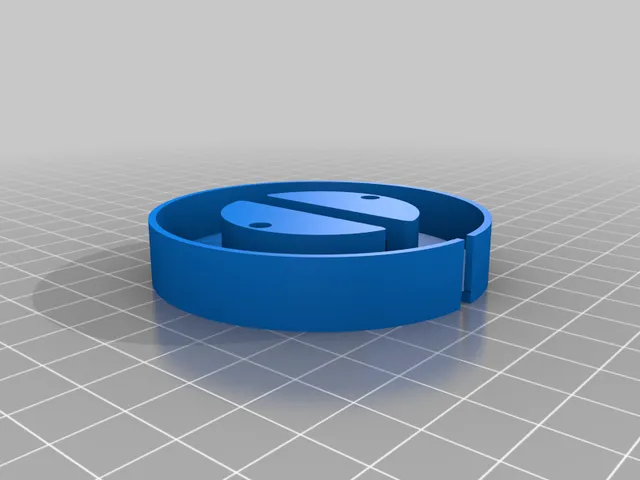

I also added a "cable base": this optional part can be placed between the ceiling and the mount to hide some of the cable (be aware that this part is just quickly thrown together to a_"well, it works"_ state

Print Settings

Rafts:

No

Supports:

No

Resolution:

200

Infill:

15-20

Filament:

PETG

Notes:

Print with 3 perimeters and 15-20% infill.

The overhang on the mount is a bit steep, but possbile to print without supports.

Post-Printing

mounting

• screw on the mount
• put the Echo Dot in the mount (hold it until it is secured by the ring)

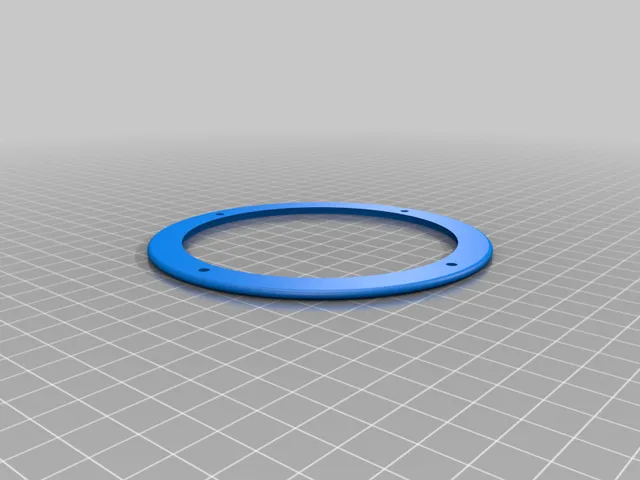

• screw on the ring (be aware of the direction: the inner diameter is different on top and bottom of the ring!)
