A compact housing that will fit the Shelly Mini Gen 3 series.

Two options for the base, one with 6mm holes and another with 8mm holes for thicker power cables. The lid works for either base.

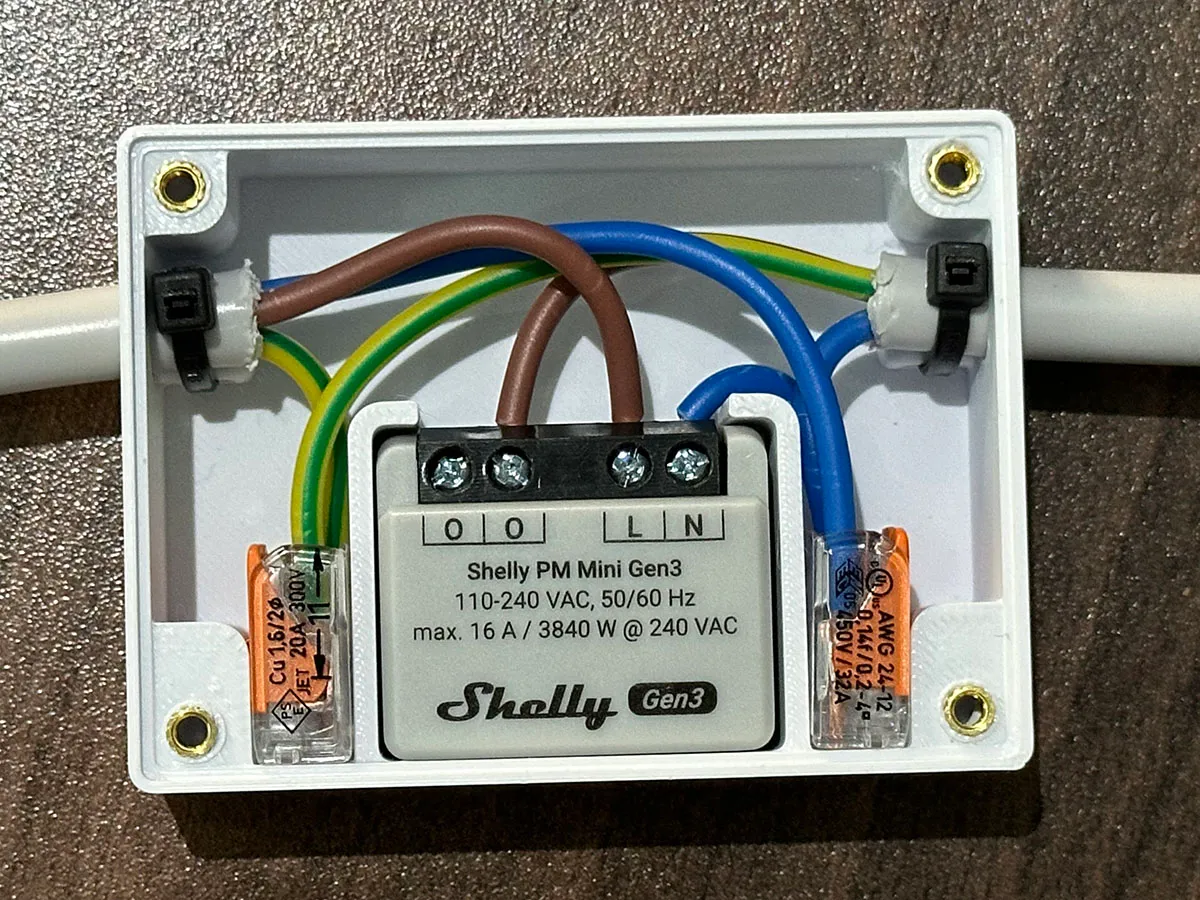

Allow you to mount the unit and two WAGO 221-413 (3 terminals) on either side. You can use the 412 if you don't need 3 terminals.

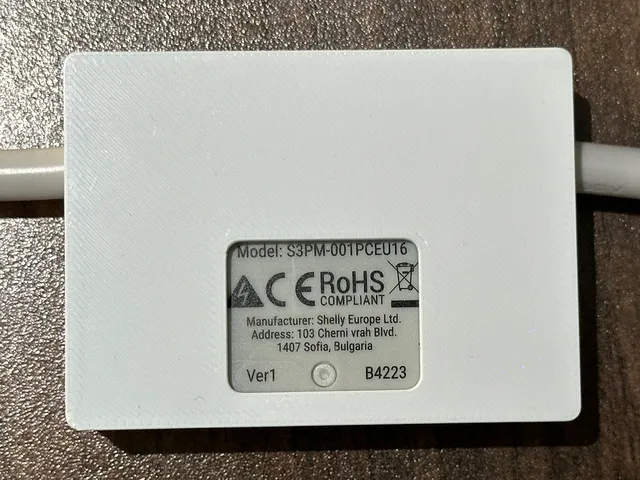

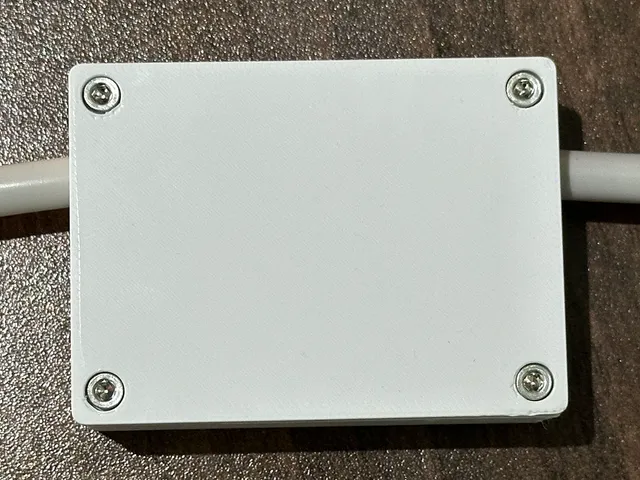

Makes use of 4 x M3 threaded inserts and M3x6mm socket cap screws, there is a cut-out at the back for ventilation and access to the reset button.

Print Settings

This was printed in eSun PLA+ on my Bambu X1C. I used tree supports for the top of the cable openings and a 15% infill at 0.2mm
