Snoerbehuizing voor Shelly 1 en 1PM1 / 4

Wat heb je nodig?

Naast de geprinte onderdelen:

  • 2×Wago 221 lasklem
  • 4×M3 inzetmoer
  • 4×M3-schroef

Beschrijving van de maker

Origineel in het Engels

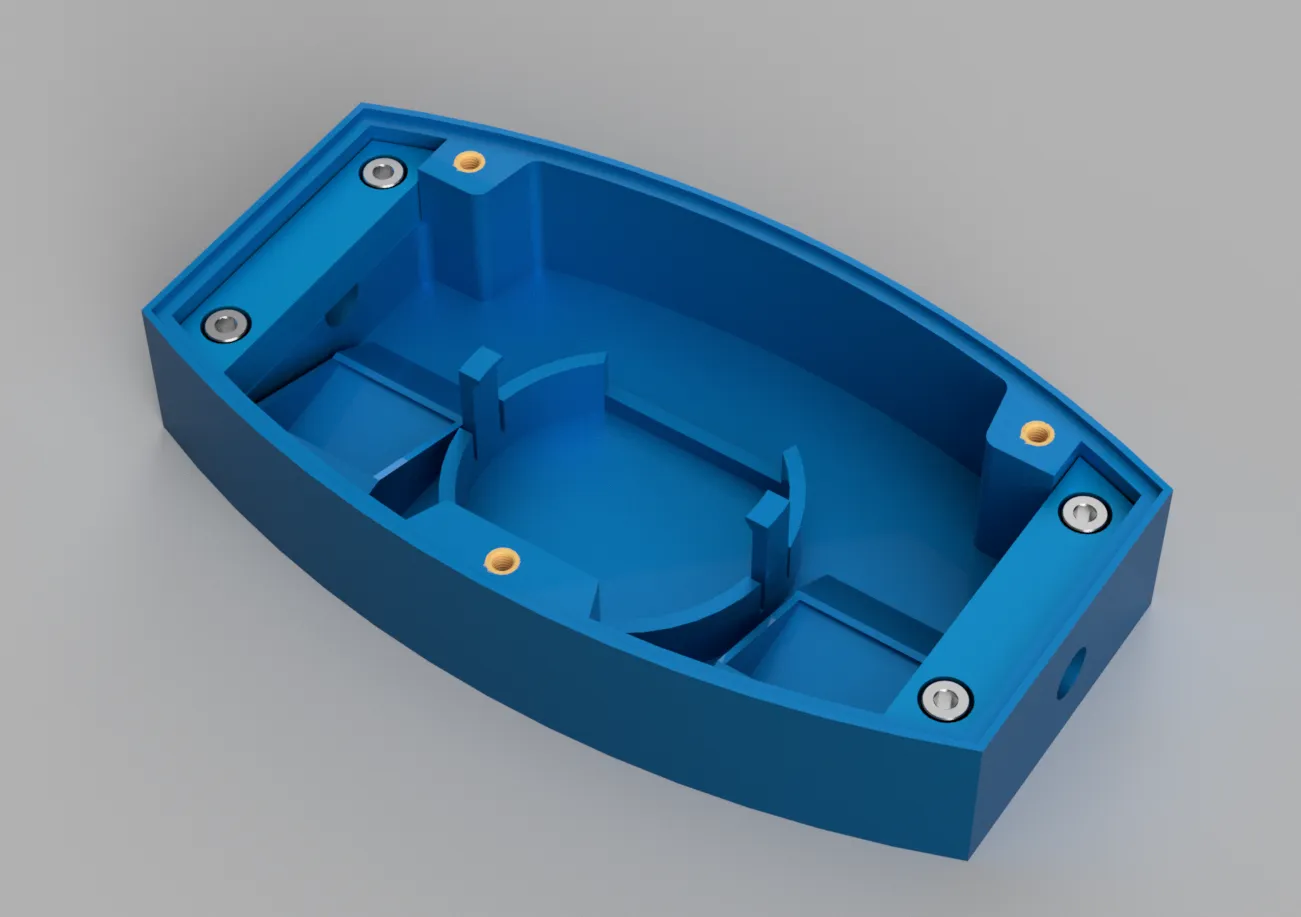

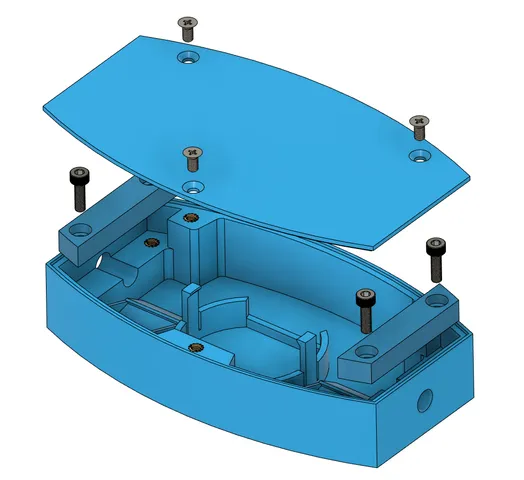

Within this box fits a Shelly 1 or 1PM and two WAGO 221 connection clamps for easy cable connection. Cables are secured by two printed cable clamps.

I used threaded inserts from ruthex in size M3 for the screws.

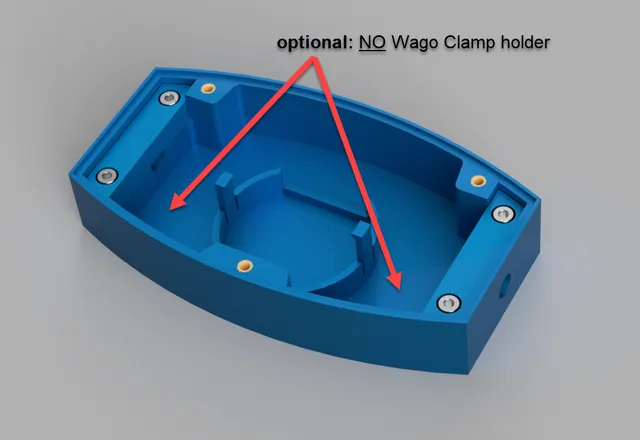

Update 12/07/2022: added another Base option without WAGO terminals. Some people might prefer that.

Update 12/08/2022: Looks like the dimensions from the Shelly website were actually smaller than the device itself. I corrected the dimensions in the design and uploaded the new versions.

Geprint door de community

Bij de bron al 9 keer geprint. Laat hier als eerste zien hoe het bij jou werd.
