Shelly box for inline flex wire and Wago 221 connectors

This is an enclosure that I designed to hold a Shelly device associated wiring in a closed, electrically safe box. Wiring layout was planned so that the box sat inline between socket and appliance being controlled.

Electrical safety

• Mains electricity carries danger of death. Please don't attempt to use one of these with real circuits unless you are competent and aware of health and safety procedures.
• Use PETG or other fire resistant materials other than PLA.

Purpose and features

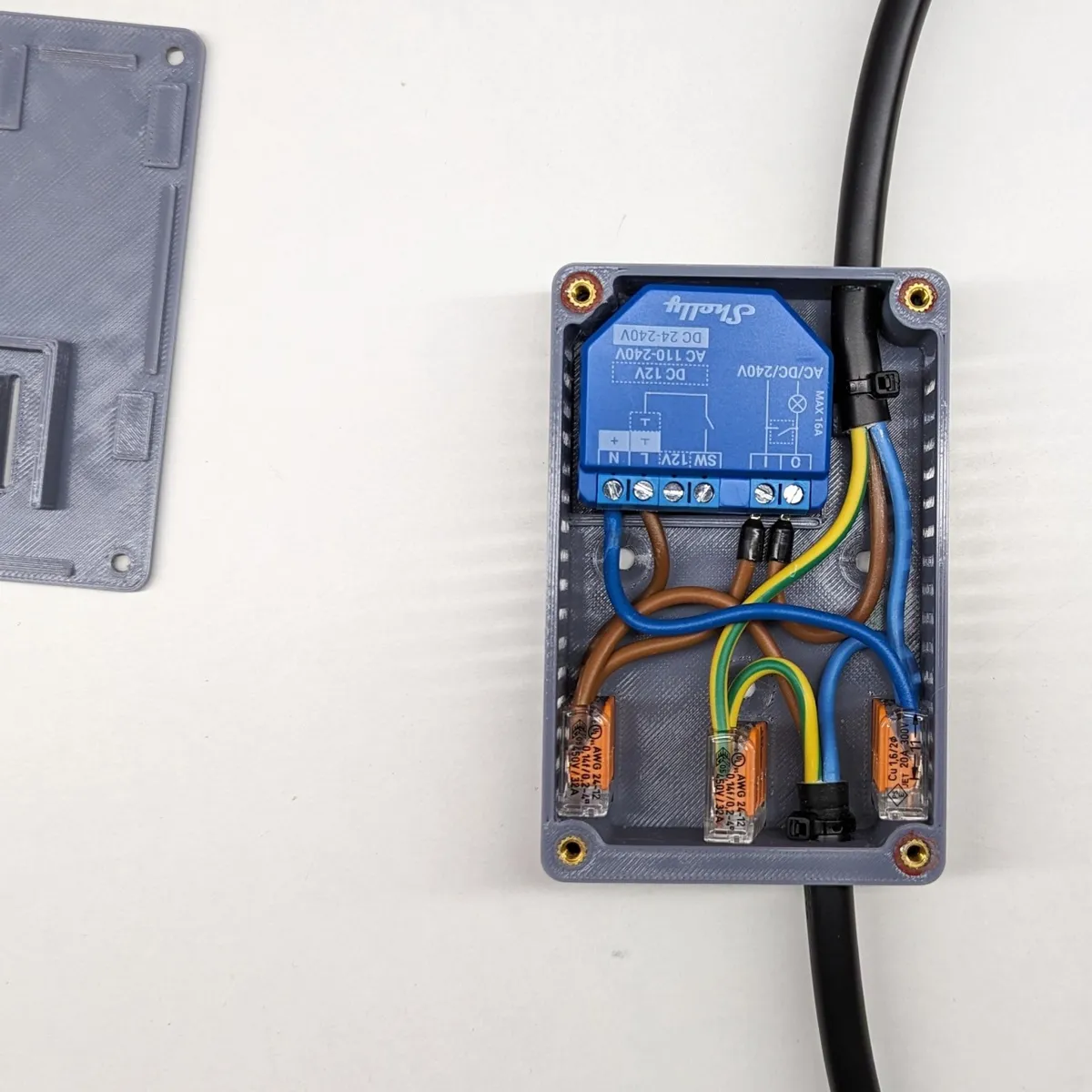

The box was designed to hold a Shelly Plus1 to control an appliance. It was fitted in line with a flex wire with a socket plug at one end and an IEC female plug at the other.

Shelly device support: Shelly Plus1, Shelly 1L, Shelly 2.5, Shelly 2PM, Shelly Dimmer2

Wire strain relief: Each twin&earth entry port has slots for fitting a cable tie as strain relief for the wires.

Attachment holes: The box has counter-sunk holes to attach it to a surface.

Cooling slots: There are cooling slots all around and above/below the shelly device.

Lid fitting: The lid attaches to the box using 4x M3 screws (5-10mm max) which thread into M3 heat inserts to be installed on the box.

Printing notes

• The lid requires supports on the bolt hole counter-bores, otherwise it will not print cleanly (in my case it didn't)

Version control

Version 2.1 - 11/03/2024

• Updated (reduced) cable tie shelf width, validated lid locator and wago pad locations

Version 2.0 was a significant redesign to include the following features:

• M3 heat thread inserts instead of square nut slots or holes for tapping
• Attachment bolt holes on the inside of the box rather than outside brackets
• Cable tie pads inside the box as opposed to accessible from the outside (enables refitting ties without dismounting the box)
• Shelly slot adjusted for compatibility with multiple models
