Shelly Case v2

Shelly Case v2 is compatible with Shelly Case
Additionally there is the possibility of wall mounting (screwed, magnetic, ...)

Only the housing parts have to be recreated.

If using the Shelly Plus AddOn, please use Shelly Case v2+AddOn.
Parts with the same name are identical.

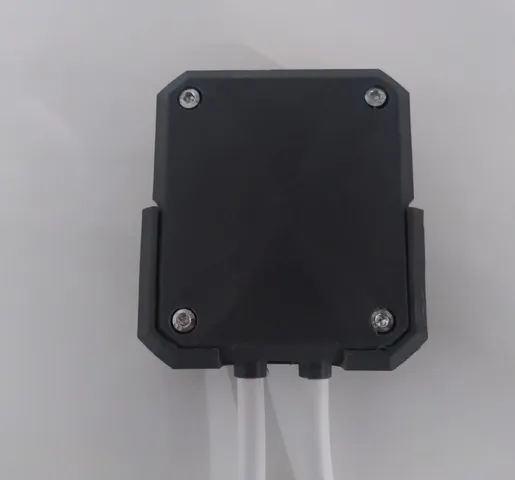

The housing is used to securely hold Shelly Plus devices:
Shelly Plus 1PM, Shelly Plus 1, Shelly Plus 2PM, Shelly Plus i4 and devices of the same size.

Consists:

• 1x housing (bottom part)

• 1x lid

• 2x clips for cable clamping

• 2x cable kink protection (optional, see below)

This requires:

• 4x cylinder screw DIN912 M4x20

• 4x nut DIN 934 M4

• 4x countersunk screws M2x12/16
  (caution! screws that are too long may punch through the enclosure wall.)

• 2x kink protection KM4 (optional)

  • Inner diameter approx. 6.4mm

  • Waistband 9.5 x 2.4

• 1-4 Wago clamps 221-413(412)

Wall mounting:

a) simple mounting plate:

• Fit the mounting plate with 4 nuts (M4).

• Screw the mounting plate onto the wall (2-4 M5 countersunk screws)

• Now screw the complete housing to the mounting plate (M4x25)

b) with wall mount:

• First attach the wall bracket to the wall.

• Screwed with 2-4 M5 countersunk screws

• or with adapter clips, e.g. for magnetic attachment

        Adapter clips:

• for magnetic attachment
  for disc magnets 10x3, please pause printing and insert

• Adapter for qube-500 pc case see here

• .... more are in the works

• to create your own adapter clips: ShellyV2_adapter_base.stp

Printing Notes:

all parts printable without support structure

Please pay attention to the alignment when printing these parts:

 ShellyV2_mounting_plate_v2_low.stl

ShellyV2_adapter_……..stl

Update! Remix now available

I've now enabled Remix for this 3D model!
The necessary step files have been uploaded and can be used as desired.
